AIN Variable Length Example

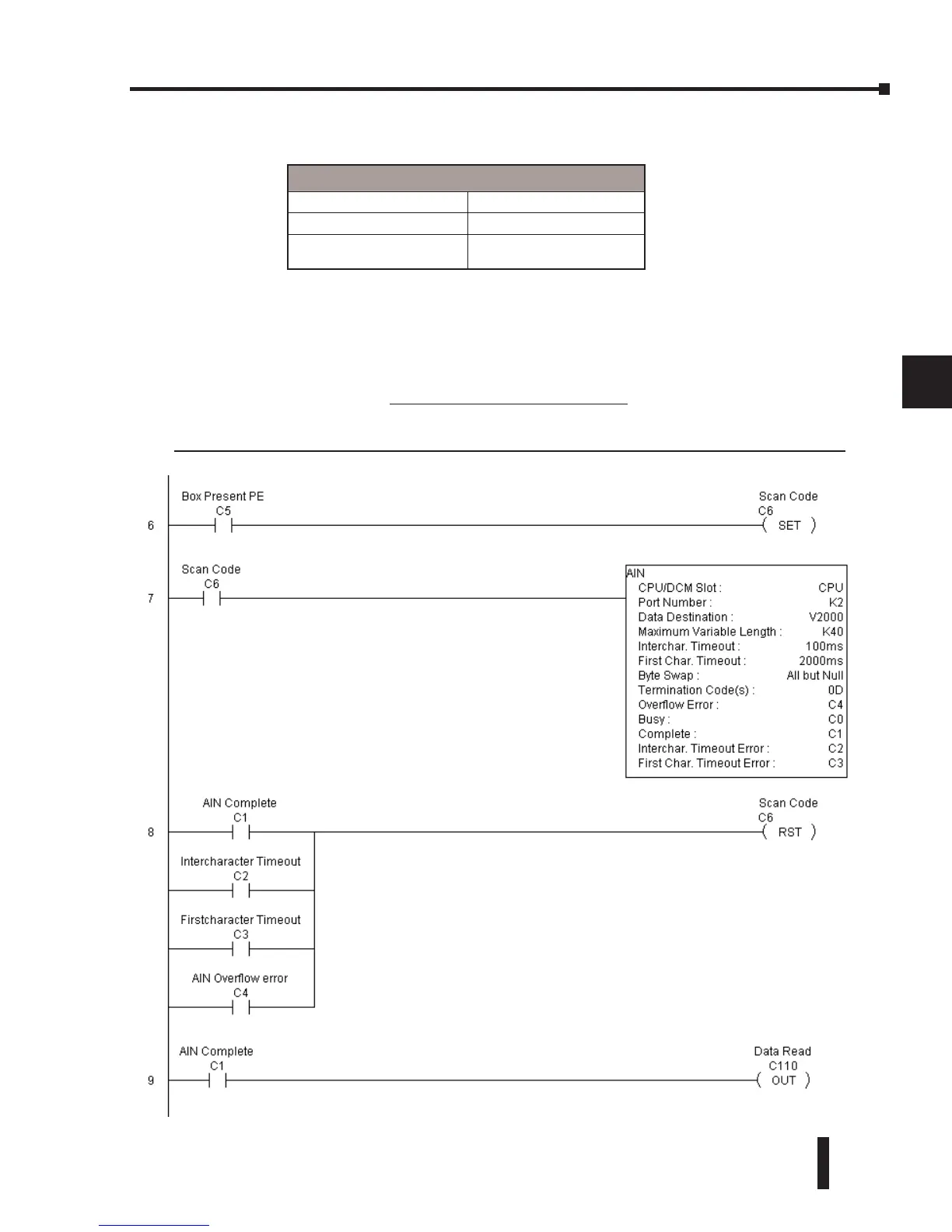

AIN variable length example used to read barcodes on boxes (PE = photoelectric sensor)
Parameter
Data Destination All V–memory
Fixed Length K1–128
Bits: Busy, Complete,
Timeout Error, Overflow
C0–3777
