ANLGIN Example

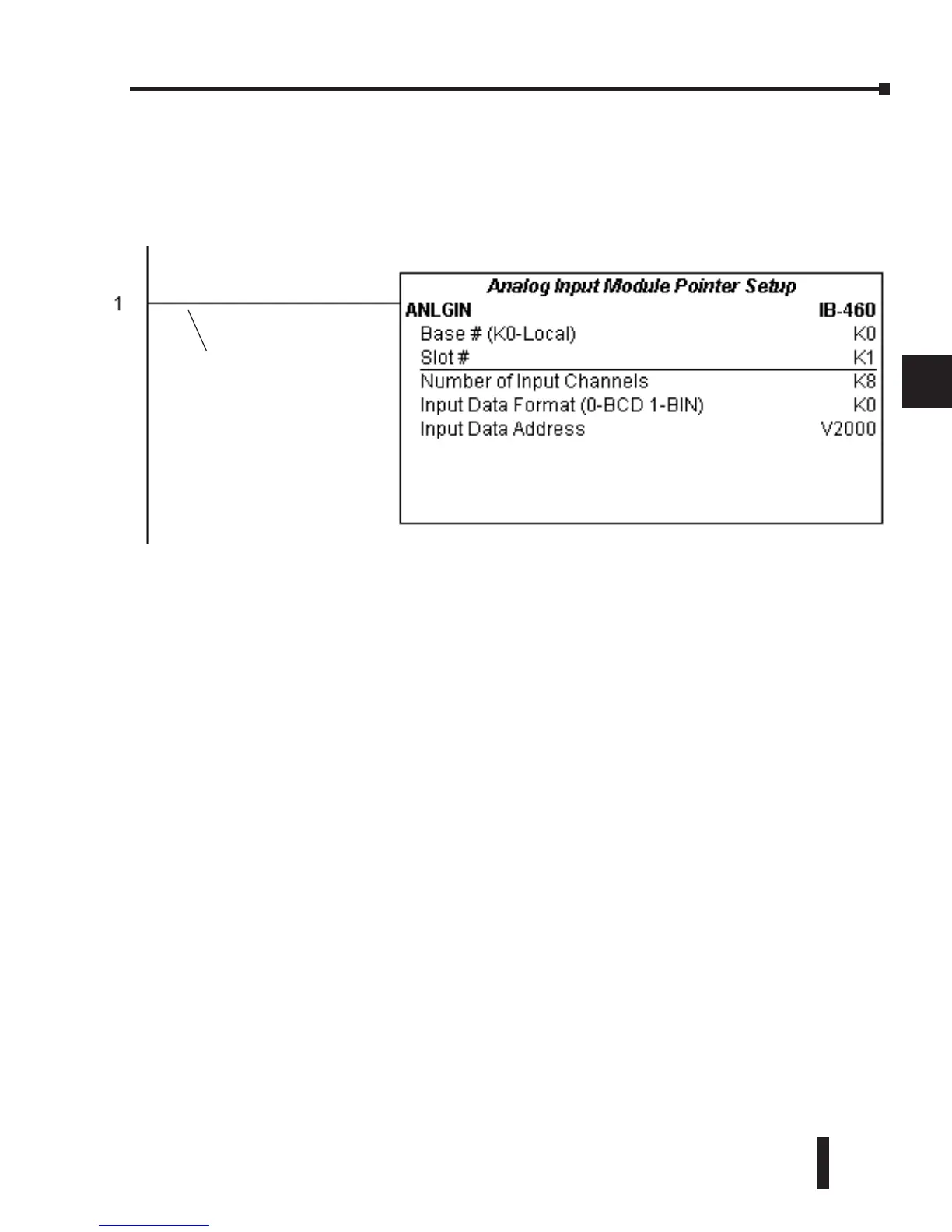

In the following example, the ANLGIN instruction is used to setup the pointer method for an
analog input module that is installed in option slot 1. Eight input channels are enabled and the
analog data will be written to V2000 - V2007 in BCD format.
Permissive contacts or input logic
cannot be used with this instruction.
