ANLGOUT Example

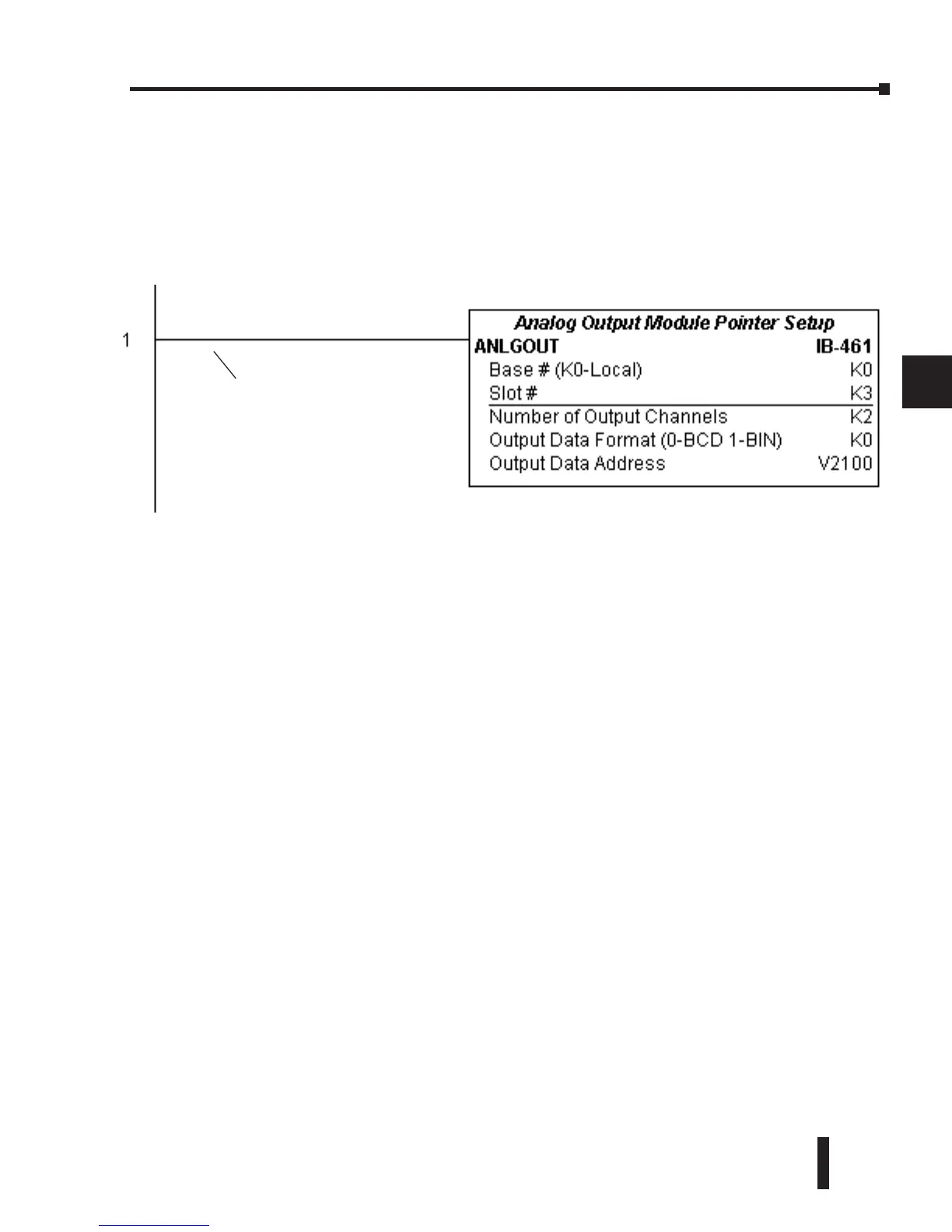

In the following example, the ANLGOUT instruction is used to setup the pointer method for
an analog output module that is installed in option slot 3. Two output channels are enabled
and the analog data will be read from V2100 - V2101 in BCD format.
Permissive contacts or input logic cannot
be used with this instruction.
