ECEMRDS Example

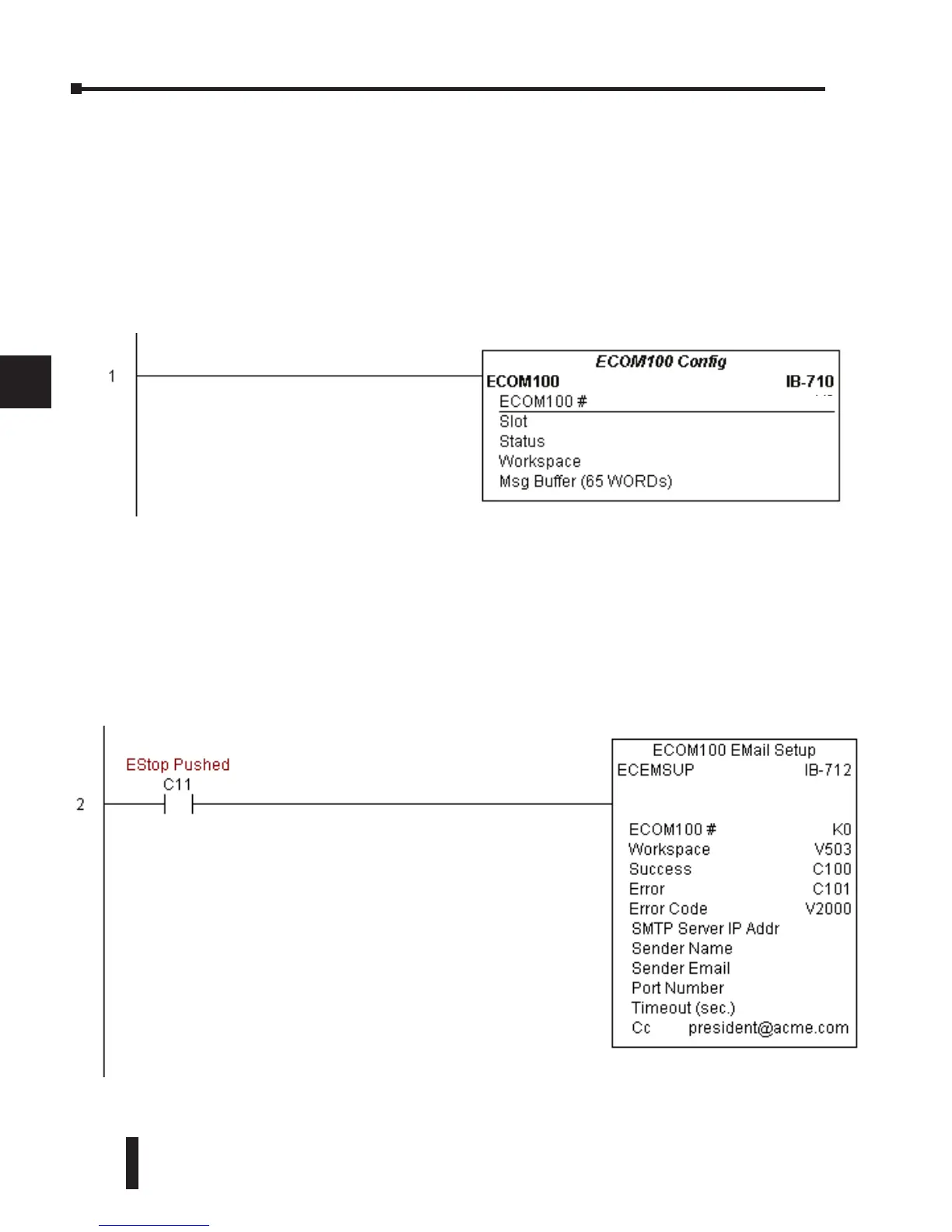

Rung 1: The ECOM100 Config IBox is responsible for coordination/interlocking of all
ECOM100 type IBoxes for one specific ECOM100 module. Tag the ECOM100 in slot 1 as
ECOM100# K0. All other ECxxxx IBoxes refer to this module # as K0. If you need to move
the module in the base to a different slot, then you only need to change this one IBox. V400 is
used as a global result status register for the other ECxxxx IBoxes using this specific ECOM100
module.V401 is used to coordinate/interlock the logic in all of the other ECxxxx IBoxes using
this specific ECOM100 module. V402-V502 is a common 130 byte buffer available for use by
the other ECxxxx IBoxes using this specific ECOM100 module.
Rung 2: Whenever an EStop is pushed, ensure that president of the company gets copies of all
EMails being sent.
The ECOM100 EMail Setup IBox allows you to set/change the SMTP EMail settings stored
in the ECOM100.
K1
K0
V400
V401
V402 - V502
(example continued on next page)
