Connecting Operator Interface Devices

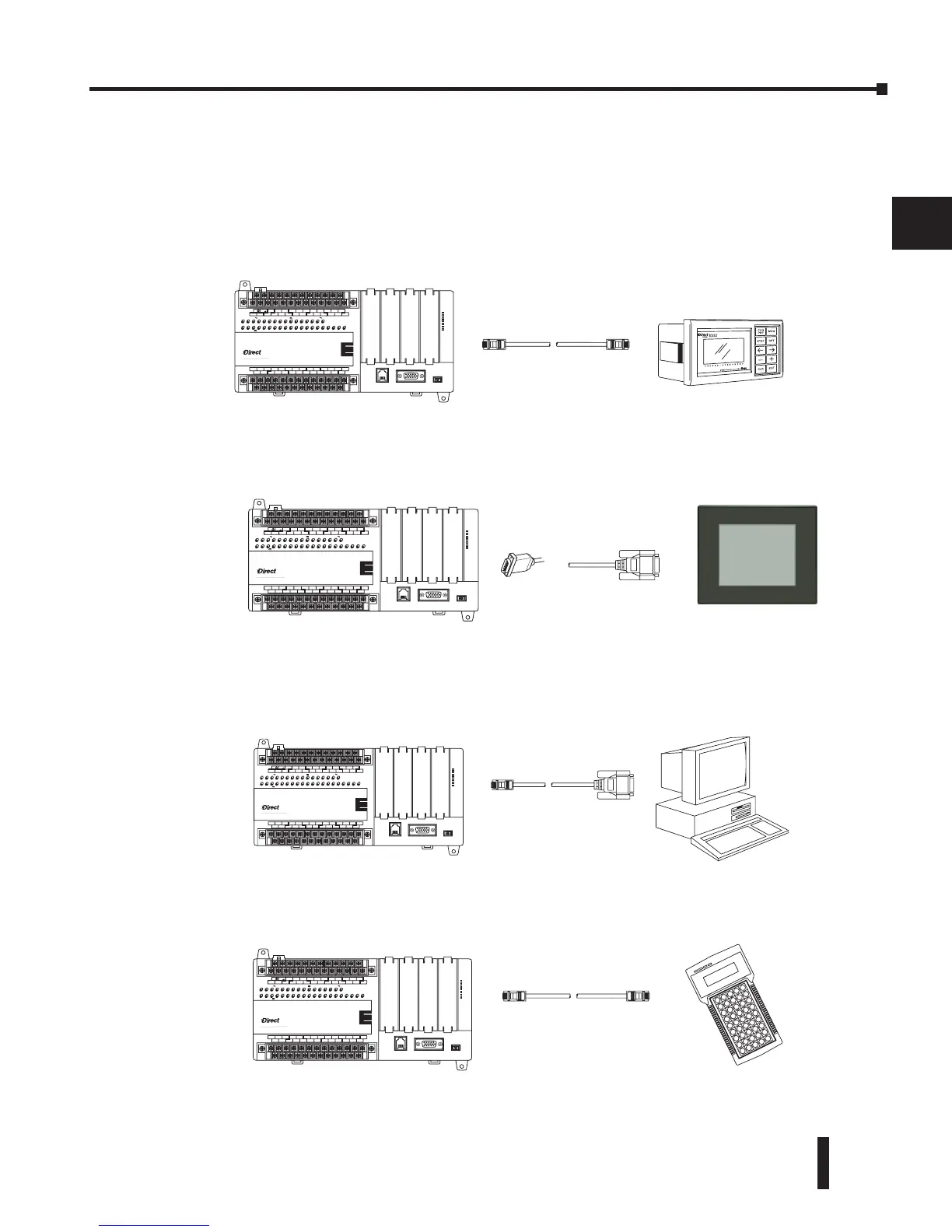

Operator interfaces require data and power connections. Some operator interfaces usually
require separate AC power. However, other operator interface devices like the popular
DV-1000 Data Access Unit may be powered directly from the DL06 Micro PLC. Connect the
DV-1000 to communication port 1 on the DL06 Micro PLC using the cable shown below. A
single cable contains transmit/receive data wires and +5V power.
C-more operator interface touch panels use a provided 24 VDC plug-in power supply. Connect
the DL06 to the serial connector on the rear of the C-more panel using the cable shown below.
Connecting Programming Devices
DL06 Micro PLCs can be programmed with either a handheld programmer or with
DirectSOFT on a PC. Connect the DL06 to a PC using the cable shown below.
The D2-HPP Handheld Programmer comes with a communications cable. For a replacement
part, use the cable shown below.
