DL06 Micro PLC User Manual, 3rd Edition, Rev. E
Chapter 2: Installation, Wiring, and Specifications
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
2-38

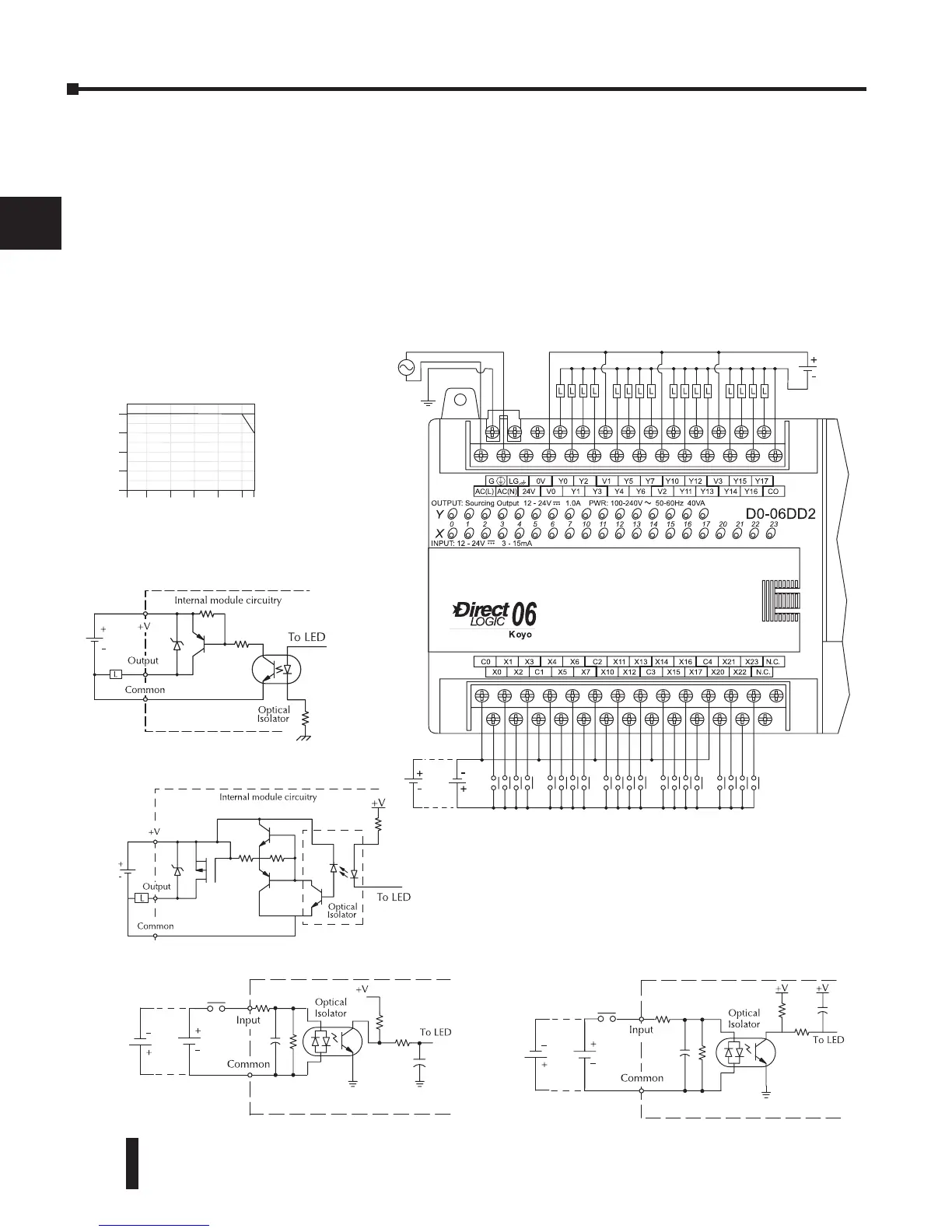

D0–06DD2 I/O Wiring Diagram
The D0–06DD2 PLC has twenty sinking/sourcing DC inputs and sixteen sourcing DC outputs. The
following diagram shows a typical field wiring example. The AC external power connection uses four
terminals as shown.
Inputs are organized into four banks of four. Each bank has an isolated common terminal,
and may be wired as either sinking or sourcing inputs. The wiring example below shows all
commons connected together, but separate supplies and common circuits may be used.
All outputs share the same common. Note the requirement for external power.
9'&
6LQN
6RXUFH
DC Standard Inputs (X4-X23)
9'&
DC Pulse Outputs (Y0-Y1)
9'&
DC Standard Outputs (Y2-Y17)
To Next Page
