DL06 Micro PLC User Manual, 3rd Edition, Rev. E
Chapter 2: Installation, Wiring, and Specifications
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
2-44

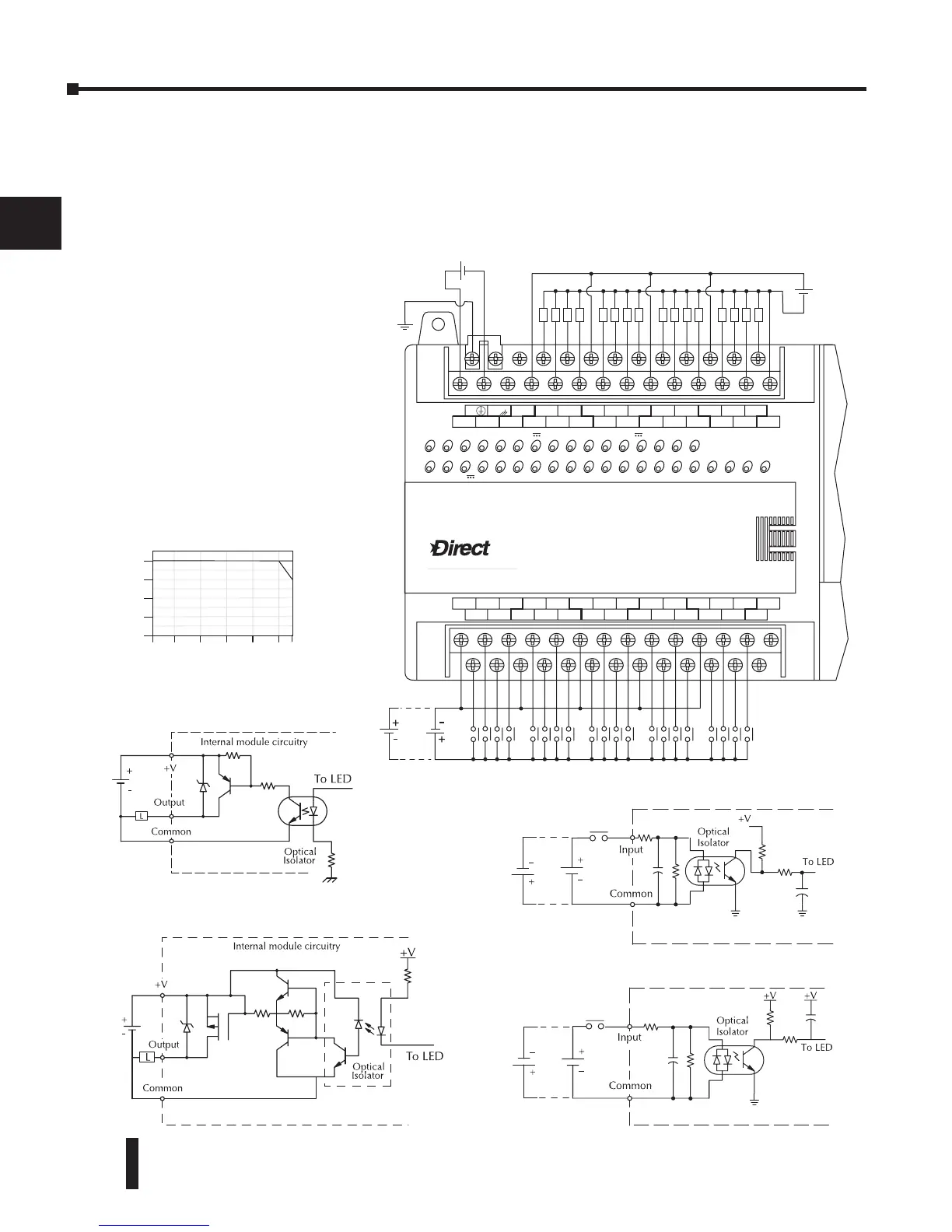

D0–06DD2–D I/O Wiring Diagram
These micro PLCs feature twenty DC inputs and sixteen sourcing DC outputs. The following
diagram shows a typical field wiring example. The DC external power connection uses four
terminals at the left as shown.
Inputs are organized into five banks of four. Each bank has an isolated common terminal,
and may be wired as
either sinking or sourcing
inputs. The wiring example
below shows all commons
connected together, but
separate supplies and
common circuits may be
used.
All outputs actually share
the same common. Note
the requirement for
external power.
LOGIC
Koyo
06
C0 C4C2X1 X3 X4 X6 X11 X13 X14 X16 X21 X23 N.C.
C1 C3X2 X5 X7 X10 X12 X15 X17 X20 X22X0 N.C.
V1 V3Y0 Y15Y12Y10 Y17Y7Y5Y2
V0 V2 Y16Y14Y13Y11Y6Y4Y3Y1 C0
+
-
LG
N.C.
N.C.G
OUTPUT: Sourcing Output 12-24V 1.0A
INPUT: 12 - 24V 3 - 15mA
Y
X
PWR: 12-24V 20W
D0-06DD2-D
12 - 24
VDC
+
-
LLLL
LLLLLLLL LLLL
01 2345 6710 11 12 13 14 15 16 17 20 21 22 23
+
-
To Next Page
