Fiber Optic Amplier
①
While Copy All is executed, the Master unit displays the channel number on the PV display part and "
OK
" on the SV
display part.
②
While Copy All is executed, the Slave units display "
RX
" on the PV display part and "
OK
" on the SV display part and they
return to RUN mode.
③ When
Copy All is completed, the Master unit displays "
COPY
" on the PV display part and "
END
" on the SV display part.
Press the
key to return to Data Copy mode.
※In
case of 1:1 Copy, it progresses as same.
①
While Load All is executed, the Master unit displays the channel number on the PV display part and "
OK
" on the SV
display part.
②
While Load All is executed, the Slave units display "
LDAL
" on the PV display part and "
END
" on the SV display part and
they return to RUN mode.
③
When Load All is completed, the Master unit displays "
LDAL
" on the PV display part and "
END
" on the SV display part.
Press the
key to return to Load All mode.
① While Save All is executed, the Master unit displays the channel number on the PV display part and
"
OK
"
on the SV
display part.
② While Save All is executed, the Slave units display
"
SVAL
"
on the PV display part and
"
END
"
on the SV display part and
they return to RUN mode.
③ When Save All is completed, the Master unit displays
"
SVAL
"
on the PV display part and
"
END
"
on the SV display part.
Press the
key to return to Save All mode.
※
If communication write enable / disable parameter [
COMM
] for the Slave unit is set to disable "
DISA
" while Save
All, Load All or Copy is executed, the master unit displays channel number on the PV display part and "
DISA
"
on the SV display part.

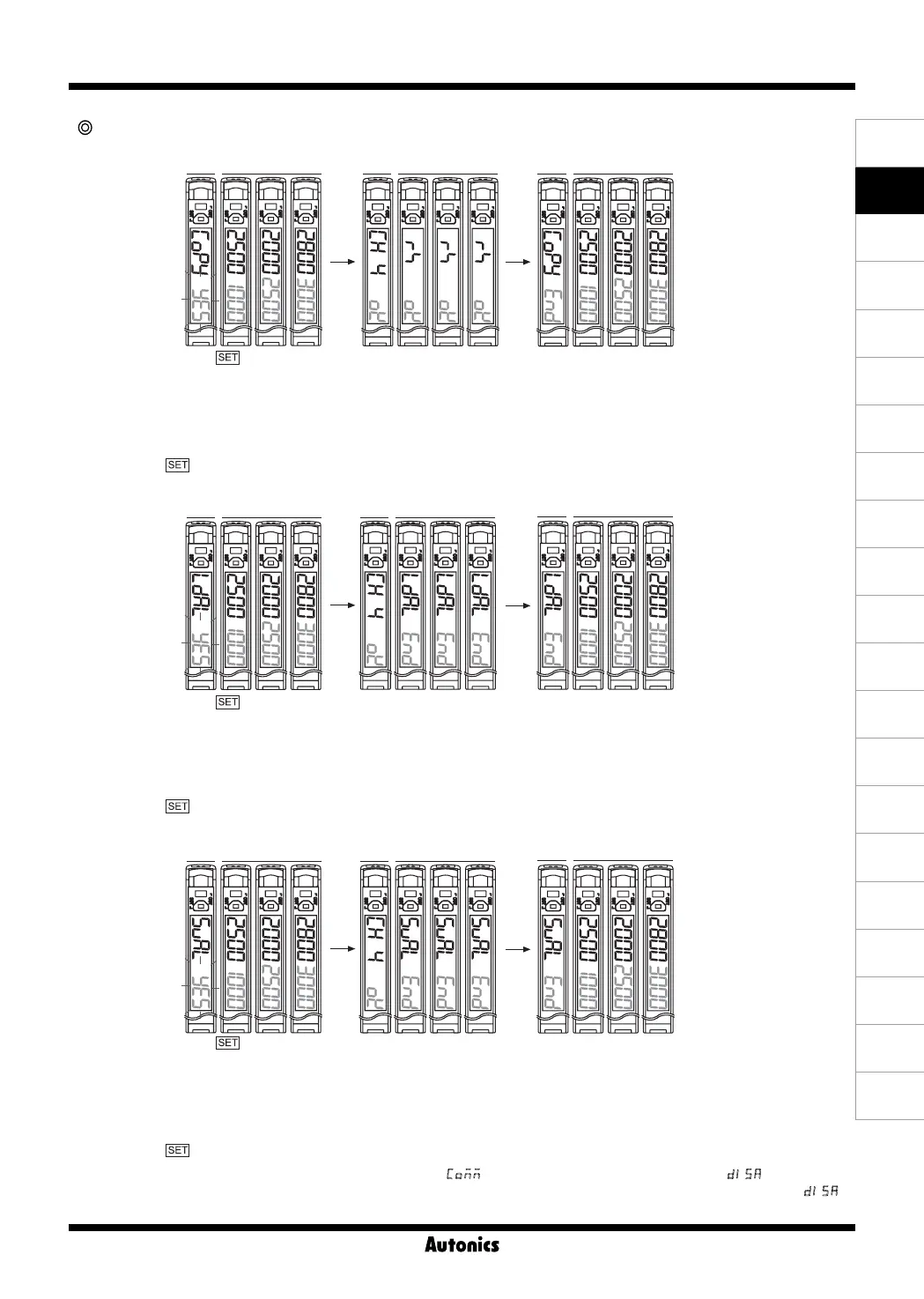

Master / Slave unit display during data Bank setting
● Copy All
● Load All
● Save All
Master
unit
Master
unit
Master
unit
Slave units
(RUN mode) Slave units
Slave units
(RUN mode)
Press key
Master
unit
Master
unit
Master
unit
Slave units
(RUN mode) Slave units
Slave units
(RUN mode)
Press key
Master
unit
Master
unit
Master
unit
Slave units
(RUN mode) Slave units
Slave units
(RUN mode)
Press key
