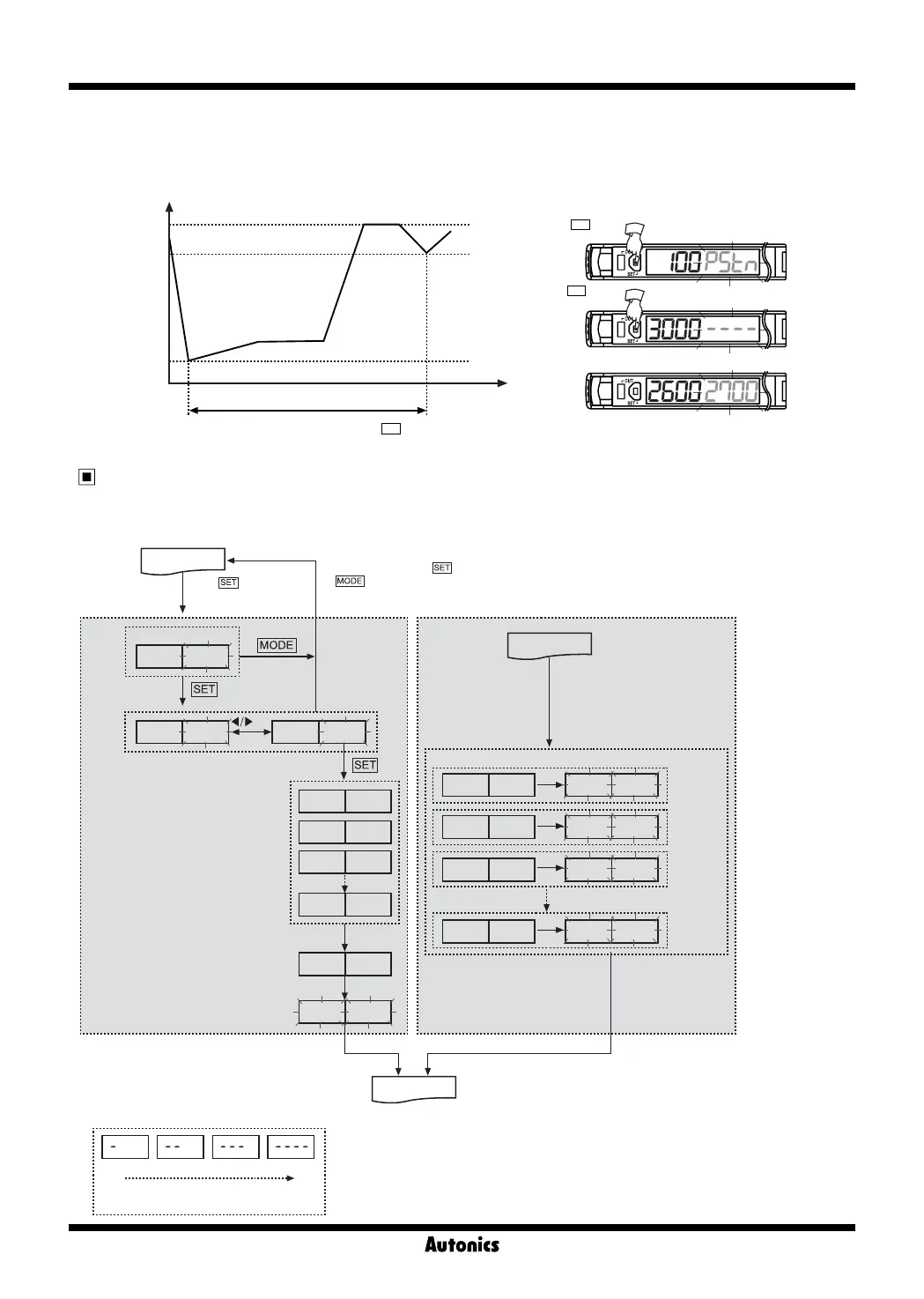

4) Positioning teach mode
※
One of teaching modes that sets the sensitivity to 90% of max. incident light level when sensing an object with a hole on
the surface (Through-beam) or sensing a moving object having curve (Reflective).
● Set Teaching mode parameter [
SENS
] to "
PSTN
"
Ground teach mode
A function to set the sensitivity of Slave amplifier units according to the command of Master amplifier unit(a certain amplifier
unit) in a successive and collective way.
Incident
light level
Max.
Min.
Set
Value
Teaching section : Over 3 sec.
※
Teaching is executed while pressing
SET
key .
"
PSTN
" flashes twice
(0.5sec.)
"----" flashes (0.5sec.)
during teaching
SV flashes twice
(0.5sec.) and returned to RUN mode
Press
SET
key
Press
SET
key
over 3sec.
TCHI ALL
TCHI NO TCHI YES
CH2 OK
CH3 OK
CH4 OK
CH8 OK
TCHI ----
TCHI END
TCHI END
TCHI END
TCHI END
TCHI END
TCHI ----
TCHI ----
TCHI ----
TCHI ----
When group teaching is executed,
the Master unit transmits teaching
command to each Slave unit and
channel No. and "
OK
" is displayed.
Select "
NO
" and press key
or
key to return to RUN mode.
The Master unit starts teaching after
teaching command transmission to
Slave unit is completed.
GroupTeaching
key
Automatically returned to RUN mode
after flashing twice.
At Group Teaching mode of
Master unit, select ‘
YES
’ and
Slave units automatically
operates.
Teaching for each Slave unit is
executed in sequence.
Automatically
returned to RUN
mode after flashing
twice.
※
In case of 8-channel
(Up to 32 channels
available)
Channel 2
Channel 3
Channel 4
Channel 8
Master unit Slave unit
RUN mode
RUN mode
RUN mode
※
1
※
1
Press
key
over 3sec.
※
Overbar "----" is indicated in
sequence during group teaching.
0 sec. 0.5 sec. 1 sec. 1.5 sec.
※
1: Display part status while teaching is in the process
