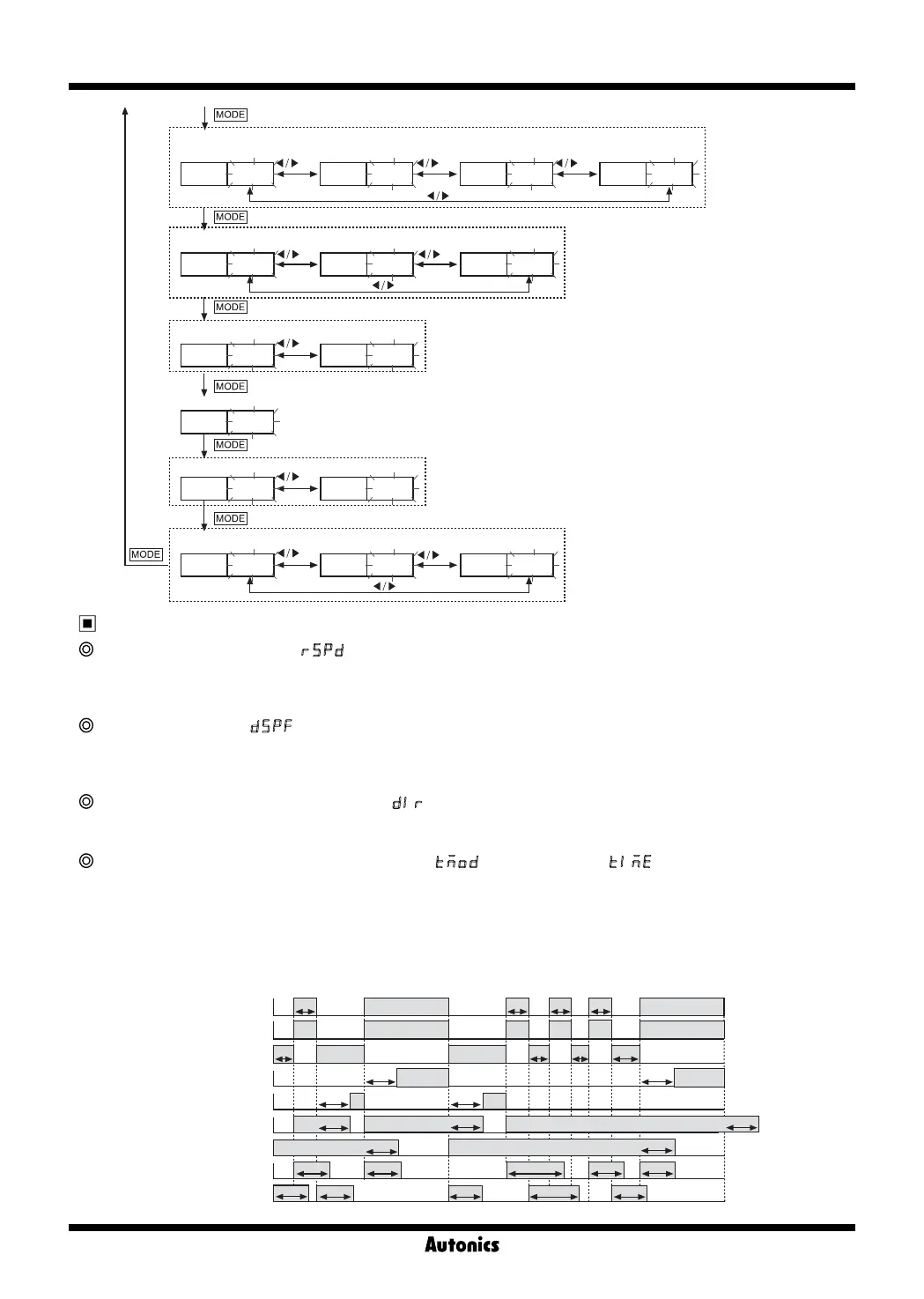

Autonics BF5R-S1-N User Manual

B-16
BF5 Series
Response time setting [
RSPD
]
A function to set the response time of control output - 4 response modes selectable.
● Ultra Fast(
UFST
) mode : 50
㎲
● Fast(
FST
) mode : 150
㎲
● Standard(
STD
) mode : 500
㎲
● Long distance(
LONG
) mode : 4 ms
Display function [
DSPF
]
A function to select incident light level display mode on PV display window : Standard display (
4000
) / Percentage display (
999P
)
● Display range of standard mode :
0
to
4000
(
0
to
9999
, in case of long distance mode )
● Display range of percentage mode :
0P
to
9(9P
(Decimal point is not displayed)
Display direction setting function [
DIR
]
A function to reverse the display direction to suit the unit installation location. : Normal display / Reversed display selectable.
※
Reversed display is upside-down(180°) display of normal display.
Timer function [ Timer operation mode :
TMOD
, Time setting :
TIME
]
Used when external device's response time is too late or when control output time is too short due to small sensing object - 3
modes are available.
● Timer Off [
OFF
]
● On Delay [
OND
] : Delays control output ON time from OFF for a certain period of setting time
● Off Delay [
OFD
] : Delays control output OFF time from ON for a certain period of setting time
● One-shot [
SHOT
] : Turns control output ON or OFF within a certain period of setting time
● Setting time [
TIME
] : 1 to 5000ms
● Time chart
Program mode function
Timer OFF L/O
Timer OFF D/O
On Delay L/O
On Delay D/O
Off Delay L/O
Off Delay D/O
One Shot L/O
One Shot D/O
※
Setting time : T>Ta , T>Tb , T>Tc>Tb
[T : Setting time]
Ta Ta Ta Ta
Tb
Tb
Tb
Tc
T
T
T T
T
T T
T
TTT
T
TT
T T T T T
Sensing condition
※
Connected unit is automatically set channel (1 to 32).
You can only check channel numbers.
Light ON
Auto 1 point 2 point Position
Dark ON
Lock
setting
Lock1
Disable
Channel
Communication
Enable
Lock2
key
key
key
key
key key
key
key key key
key
key
SENS AUTO SENS 2PNTSENS 1PNT SENS PSTN
Sensitive
setting
mode
Energy
saving
Light ON/
Dark ON
Energy saving
mode1
Energy saving
mode2
Normal
mode
ESAV NOR
LOCK OFF
LDON L-ON
COMM ENA
CH 1
ESAV 2SAV
LOCK LOC2
ESAV 1SAV
LOCK LOC1
LDON D-ON
COMM DISA
