Avalue Technology PPC-1501 - Installing Hard Disk & Memory; Install 2.5 HDD

PPC 15”~22”W Series
22 PPC 15”~22”W Series Quick Reference Guide
2.2 Installing Hard Disk & Memory
2.2.1 Install 2.5” HDD

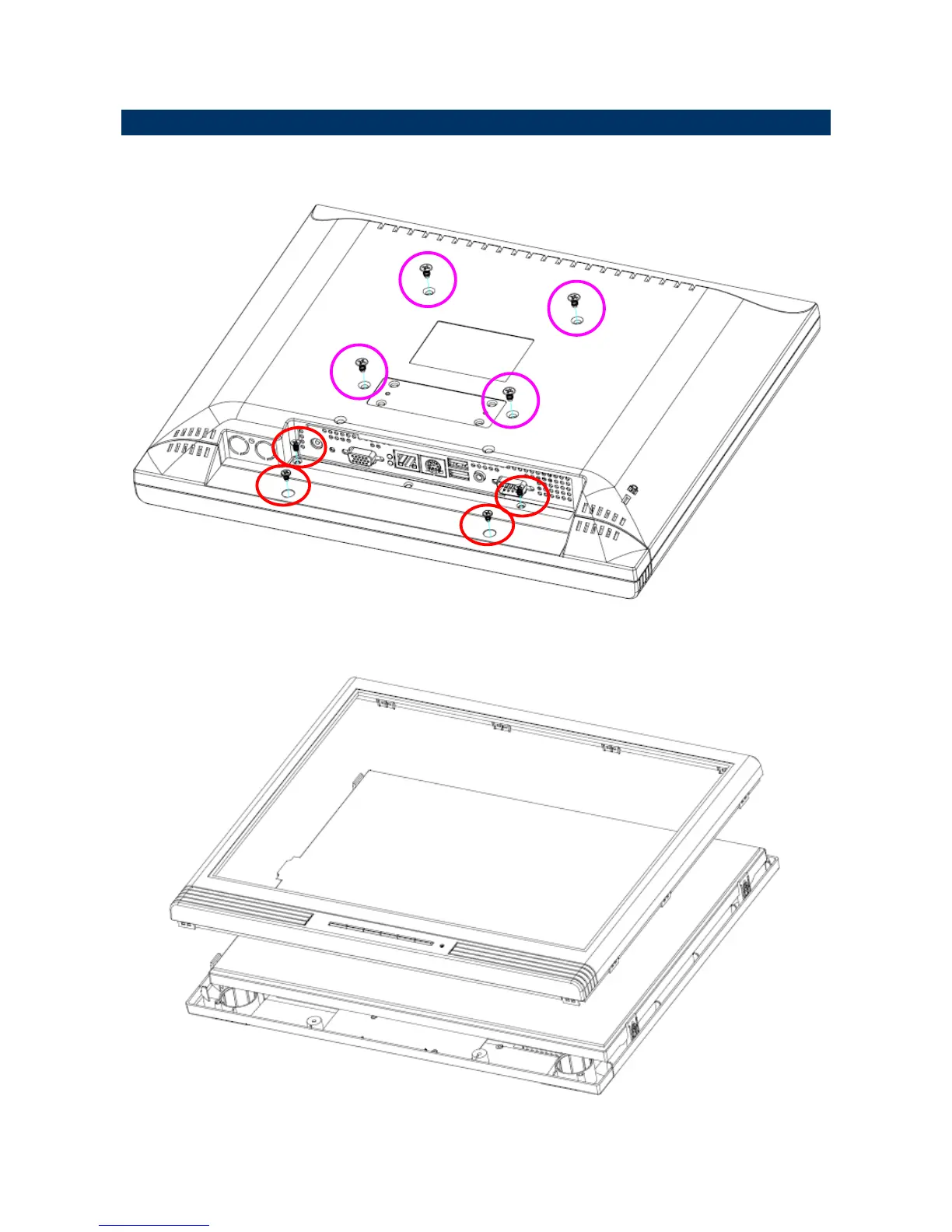

Step 1. Unfasten 4 screws from the rear middle side and 4 screws from the rear bottom
side of PPC-1501 as above.
Step 2. Remove the front panel chassis.
