Avantco MX20 - Bowl Lift Unit

User Manual
14 www.AvantcoEquipment.com
11
ITEM DESCRIPTION QTY
1 Screw M6*45 6
2 Turning Plate 1
3 Ring 1
4 Nut M20*1.5 1
5 Safety Guard 1
6 Inner Gear 1
7 Screw M8*15 1
8 Planetary Gear 1
9 Bearing 6203 1
10 Bearing 6204 1
11 Oil SealPd25*50*10 1
12 Key 5*18 1
13 Mixing Axle 1
14 Pin 1
10

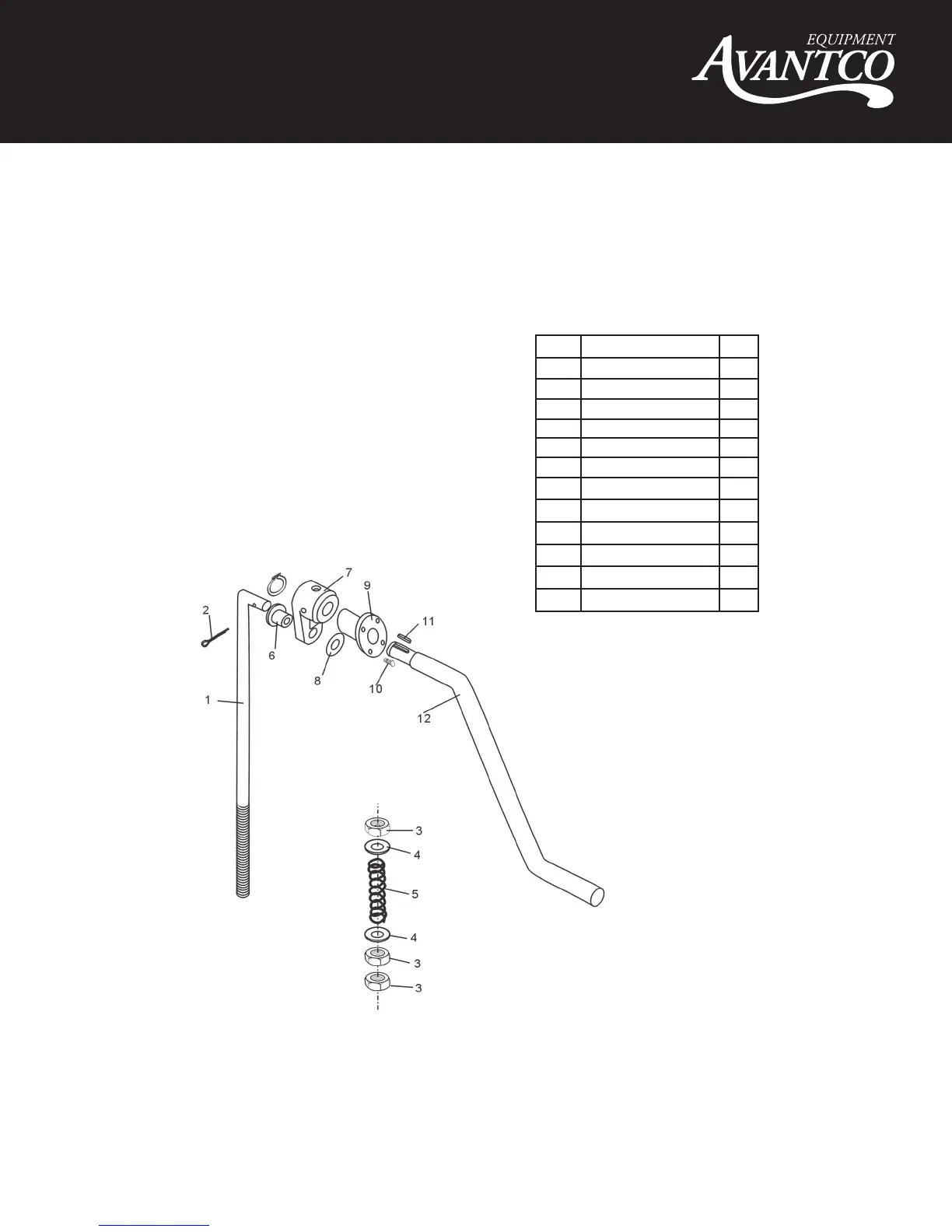

BOWL LIFT UNIT
FIGURE 8
PLANETARY ASSEMBLY
FIGURE 9
ITEM DESCRIPTION QTY
1 Lifting Bar 1
2 Cotton Pin 3*30 1
3 NutM10 3
4 Flat Washer 2
5 Compression Spring 1
6 Little Knot 1
7 Lifting Handle Bracket 1
8 Flat Washer 1
9 Flange Knot 1
10 Screw M6*25 1
11 Key 5*20 1
12 Bowl Lift Handle 1
