Avantco MX20 - Stand & Bowl Lift Unit

User Manual
www.AvantcoEquipment.com 13
98

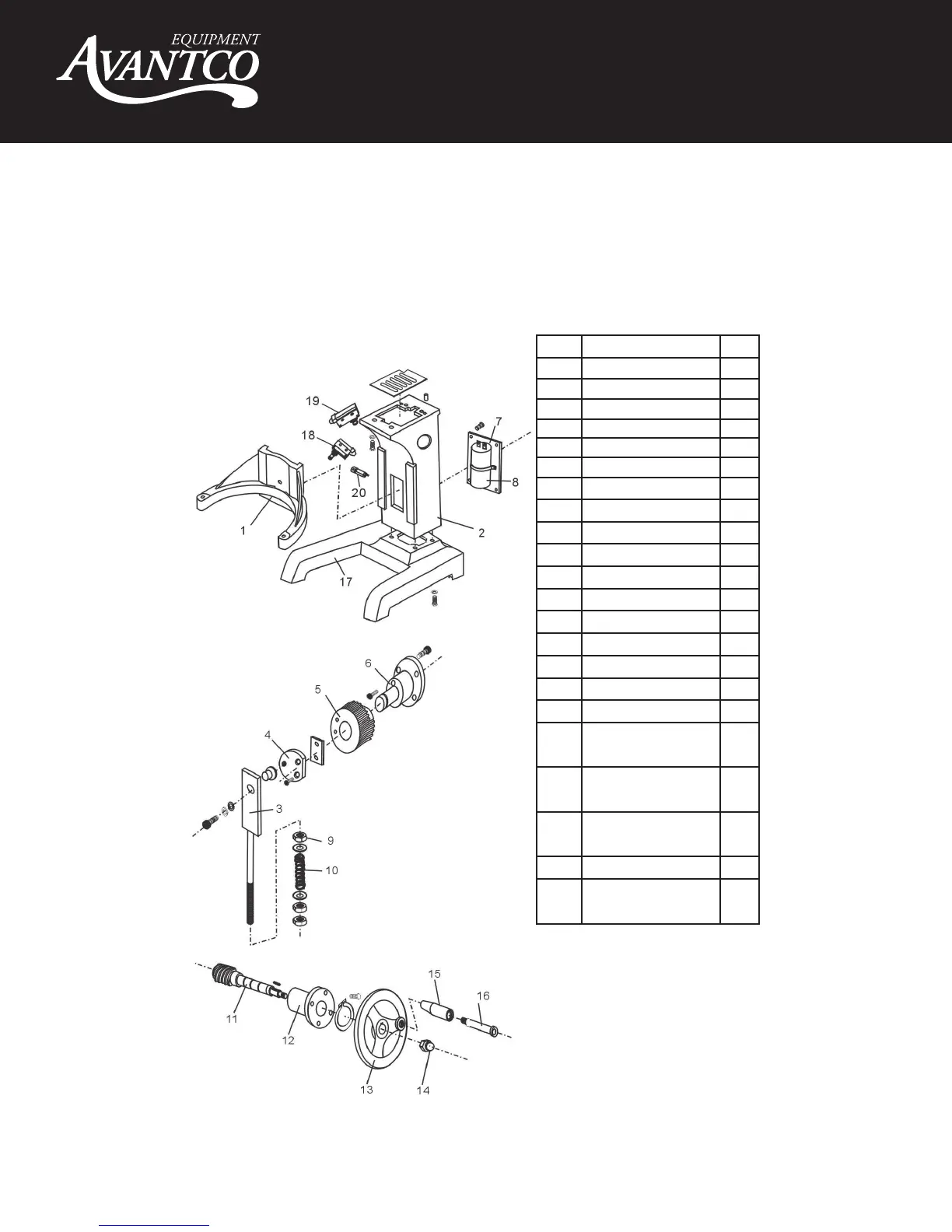

STAND & BOWL LIFT UNIT
FIGURE 7
SHIFTING MECHANISM
FIGURE 6
ITEM DESCRIPTION QTY
1 Bowl Support 1
2 Columns 1
3 Slide 1
4 Plate 1
5 Gear 1
6 Support Seat 1
7 Capacitor Board 1
8 Capacitor 200uF 1
9 Nut M10 3
10 Spring 1
11 Spiral 1
12 Bowl Lift Support 1
13 Handwheel 1
14 Nut M10 1
15 Handle 1
16 Handle Screw 1
17 Machine Seat 1
18 Limit Switch of 1
Safety Guard
19 Fluctuate Safety 1
Switch
20 Overload Protection 1
Switch
21 AC Contact Device 1
22 AC Contact Device 1
Box
ITEM DESCRIPTION QTY
1 Axle 1
2 Nut 1
3 Spring 1
4 Shaft 1
5 Fork 1
6 Pin 3*20 1
7 Eccentricity Knot 1
8 Steel Ball 3
9 Speed Spring 3
10 Speed Block 1
11 Screw M5*10 1
12 Shaft 1
NOTES:
• The speed selector / shifting mecha-
nism is designed for simplicity and reli-
ablity. It features three mixing speeds.
• Apply sealant to the shift selector
assembly when installing.
• Speed selection is made by align
ing the pointer of the shift handle to
the required action.
i.e. Whisk for eggs & cream etc,
Paddle for batter
Hook for dough
Important: Stop the mixer
before changing speed.
