Avdel 7271 - Tool Capability

5
These are hand held models which can be suspended vertically from a ring mounted at the rear of the tool. While the 07274 is less
powerful with only two pistons, (see differences on the general assembly, page 25), it gives greater access with its longer barrel
protusion. When choosing one of these hand held tools refer to the tool capability tables opposite.
The nose jaw dimensions are shown on page 12 and in the nose jaw selection tables, pages 13 and14.

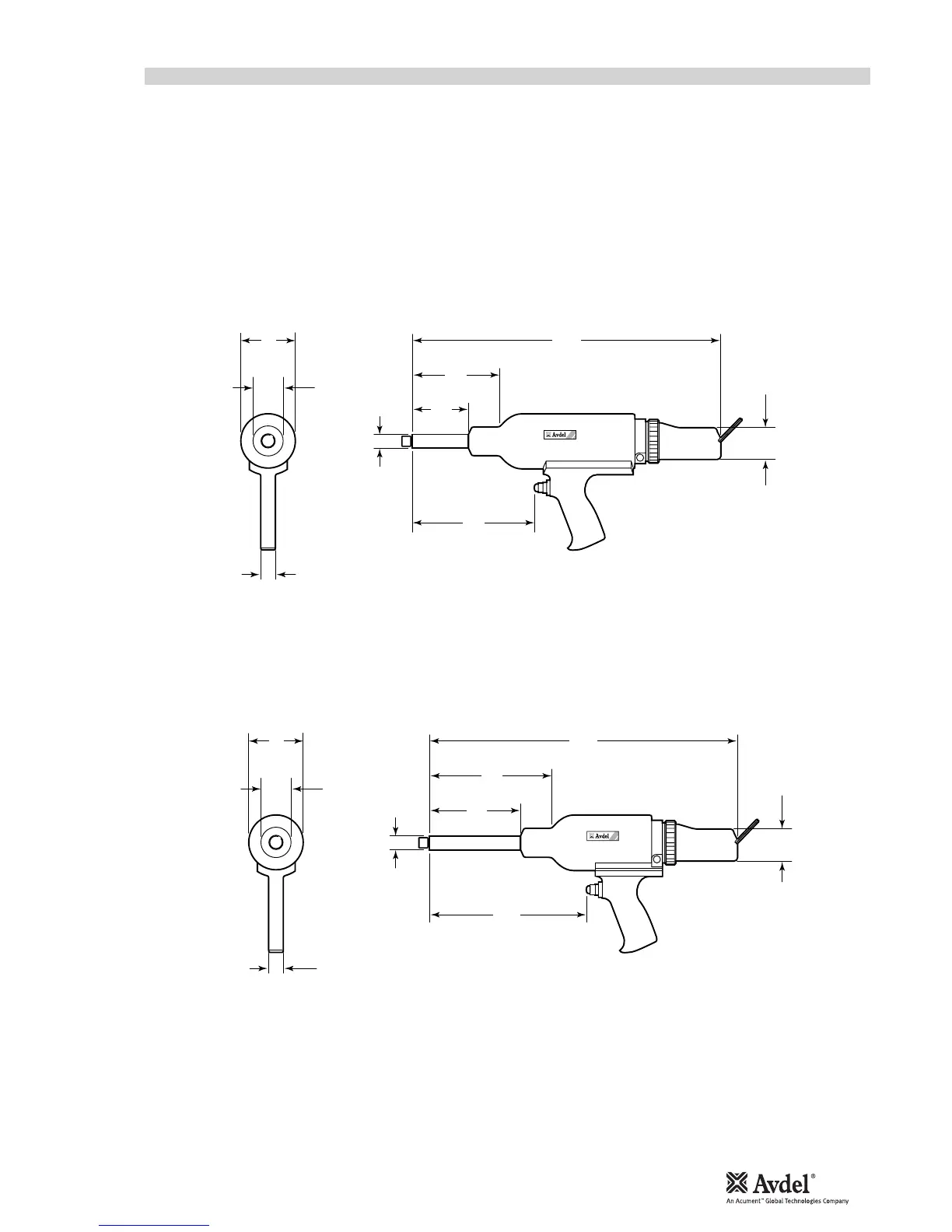

07271 AND 07274 MODELS
07271 MODEL
3
76
1.62
41
.87
22
17.40
442
1.62
4
1
3.38
86
.81
21
5.13
130
6.75
171
0727
Dimensions shown in bold are millimetres. Other dimensions are in inches.
07274 MODEL
3
76
1.62
41
.87
22
17.40
442
1.62
4
1
5.38
136
.81
21
7.13
181
8.75
222
0727
Dimensions shown in bold are millimetres. Other dimensions are in inches.
