Intent of Use
nG2 is a hydro-pneumatic tool designed to place Avdel
®
breakstem fasteners at high speed making it ideal for batch or
flow-line assembly in a wide variety of applications throughout
all industries. It can place all fasteners listed opposite.
The tool features a vacuum system for fastener retention and
trouble free collection of the spent stems regardless of tool
orientation.

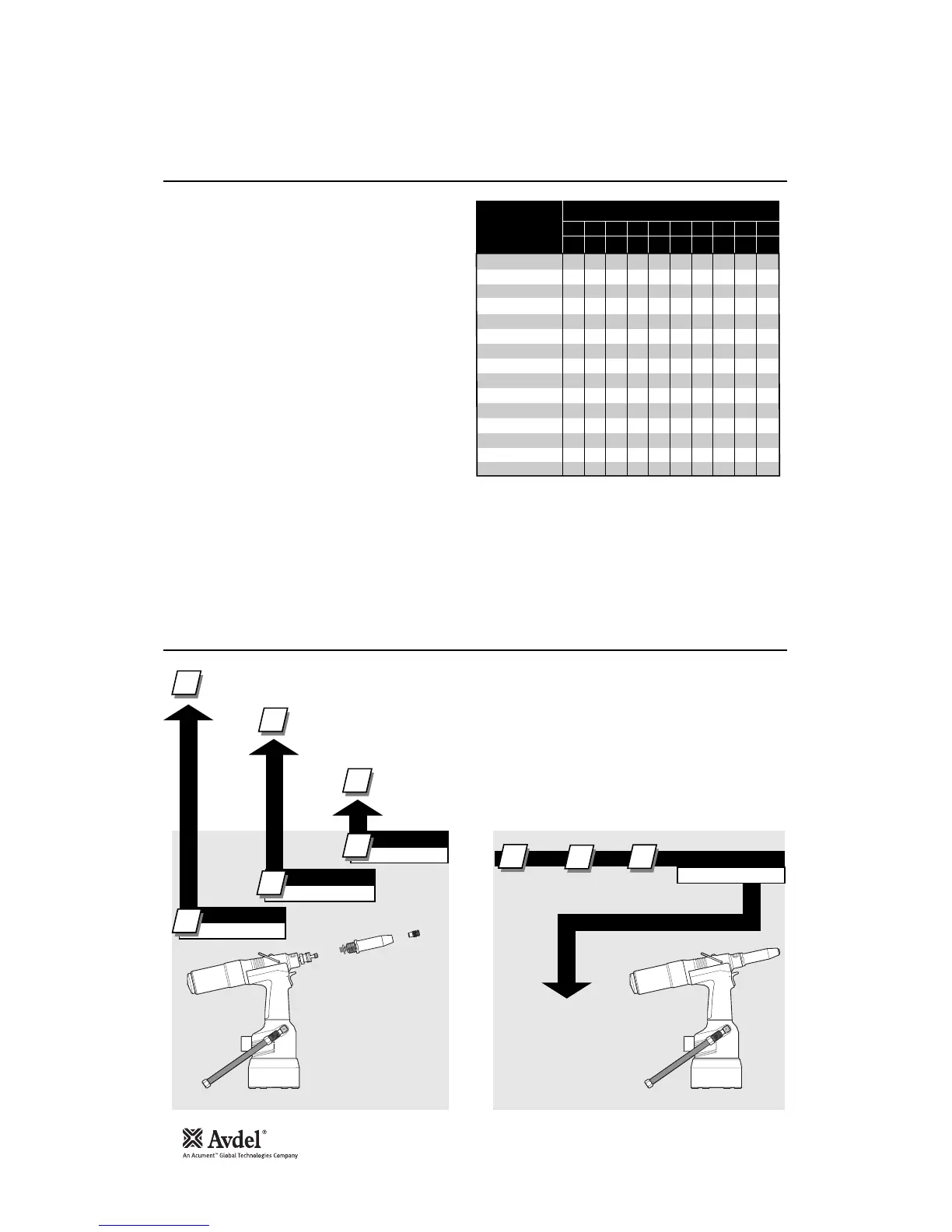

A complete tool is made up of three separate elements
which will be supplied individually. See diagram below.
If you wish to place most of the fasteners in the table
opposite, you can order the 71213-00039 complete tool
comprising of:
• 71213-02000 base tool
• 71213-15000 nose assembly
• Nose tips 71210-05002, 71210-16070 and 07381-
04701. Fit nose tip as indicated page 8 or 9.
You can order the above three nose tips and nose
assembly as a nose assembly kit part number 71213-
15100.
• For some fasteners the base tool, nose assembly
and nose tip must be ordered separately.
NOSE EQUIPMENT MUST BE FITTED AS DESCRIBED ON
PAGE 8.
The part number of the base tool remains the same whichever nose assembly, or nose tip is fitted. See the General Assembly
pages 26-27. If a swivel head is fitted, the same base tool must be adapted. See details page 14.
The nose tip part number relates to a specific fastener. If access to the application is
restricted, some extended nose tips are available. See table page 12.
This single nose assembly will allow placing of non-aerospace fasteners by simply selecting the appropriate
nose tip from the range of Type 1 Nose Tips. Other nose assemblies are available for applications with
restricted access, for aerospace and special fasteners. See table page 12. A nose assembly can be
substituted by a swivel head (see pages 14-15). In this case the nose tip is part of the swivel head.
* ADD 3 DIGITS FROM THE
LAST COLUMN OF A NOSE
TIP TABLE ON PAGE 10 OR
12.
FOR TOOLS WITH SWIVEL
HEADS USE TABLE PAGES 14-
15.
Range of Fasteners
Part Numbering
