How to replace batteries
To replace the battery, remove the discharged battery after opening the enclosure. Observe the given
polarities.
Technical data
• Power: alkaline battery 9 V – standard size 6LR16 or lithium battery SAFT 9 V.
• Current demand: 18µA during stand-by – 20 mA during transmission.
• Life: 18 months with an alkaline battery – 30 to 36 months with a lithium battery.
• Position: Wall-mounting, better if in a corner at a height of 2 to 2,30 meters.
• Covered zone: 100° opening for 12 m range – 20 beams on 3 levels.
• Sensitivity: adjustable by trimmer from 30 to 100%.
• Alarm detector: programmable by pulse count: 1 or 3 (it can be selected by the pulse-count jumper).
• Test: detection of movement displayed by LED
• Transimission of the presence signal (supervision) and battery level to the control panel every 72
minutes
• Temperature compensation circuit
• R.F. features: Quartz A.F. transmission at 433,92 MHz, max. power 10mW
• Signal coding: 36 bit random code, previously programmed.
- Over 68 billion combinations.
• Working capacity: over 40 m in open space, 30 m approx. In domestic environments.
• Dimensions: 132x65x46 mm.
• Installation: for safety reasons, install the device in a zone not easily accessible to the user.
Reference standards
- 31 -
IG
150°
2 m
15 m
10 m5 m1 m

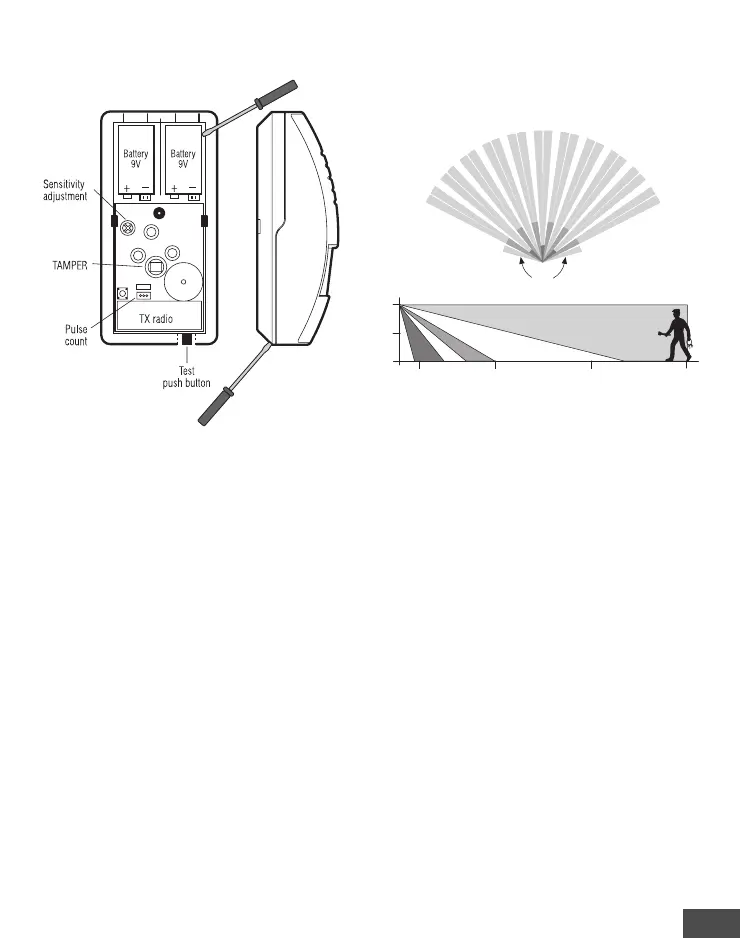

AF968R
Standard lens
AF968R Internal view
Opening of enclosure
