part (human) largely is kept constant and the engine support is controlled electronically. This
results in a perfect harmony between the two hybrid drives.
The translation is adjusted at the throttle (1, see fig. above). The indication (3) shows a hill
curve (orange) and the current translation ratio state (bicycle symbol). The area of increases is
for slow speed (little ratio), the straight line for medium speed and the slope line for high speed
travel (large ratio).
With button (2) you can change to cadence control. A blue circle segment appears on the
display area (blue) for setting the cadence. A further pressing of the button set back to
translation control.

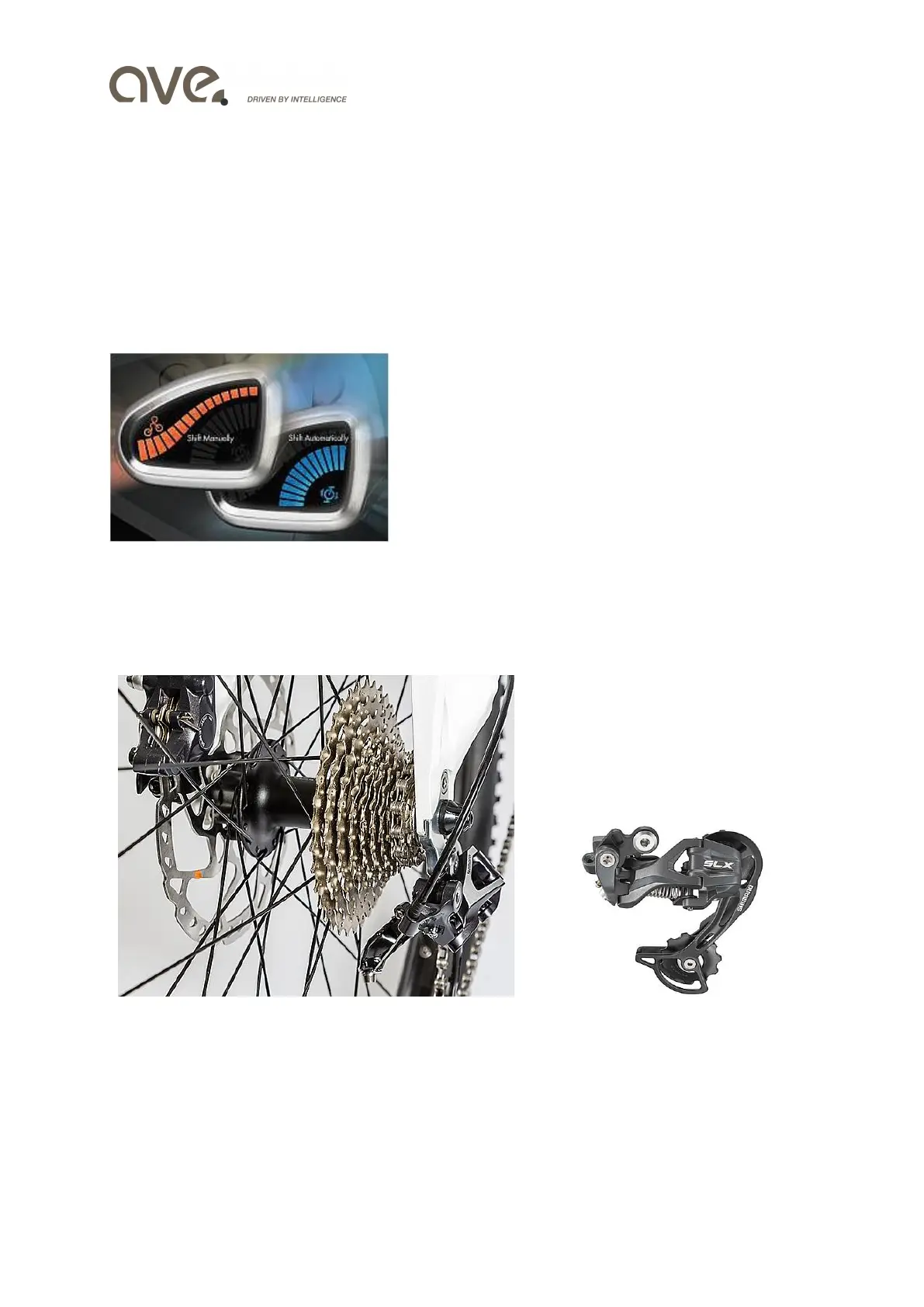

Indication of translation ratio (left) and cadence (right)
Source: http://www.fallbrooktech.com/
ā Derailleur gear 10g, 27g
Example: Shimano SLX 10g Derailleur SLX
The Shimano gear shift is operated by two levers on the right side of the handlebar. The lever
(A) is used to shift to a higher gear, the lever (B) to switch to a lower gear (see fig. below).
Step slightly on the pedals during the switching process. Never use both shift levers
simultaneously. If you want to switch multiple gears at once, hold down the shift lever on the
first detent and step out until the desired gear is set.
