Page 3
REPAIR PARTS LIST
Old Part Number New Part
Number
Ref.
No.
-538975-00000
-850012-00000
R431000091
R431000110
C-2 RELAY VALVE, complete
RELAY VALVE PORTION complete
(Includes Ref. Nos. 2 to 42, inclusive)
P –050756-00001
-850050-00000
R431002759
R431000127
2 BODY, Relay Valve
VALVE, Supply complete (Includes
3,5,9,10 and R431000128)
-850015-00000 R431000113 3 CAGE, Supply Valve
SEE KIT SEE KIT 4* RING, 1-7/16” O.D. Supply Valve
Cage Packing
SEE KIT SEE KIT 5* SPRING, Supply Valve
SEAL, Supply Valve, complete
(Includes 6,7, and 8)
-850046-00000 R431000126 6 HOUSING, Supply Valve Seal
SEE KIT SEE KIT 7* SEAL, Supply Valve
-850019-00000 R431000114 8 RETAINER, Supply Valve Seal
SEE KIT SEE KIT 9* RING, 5/8” O.D. Supply V. Seal
P –049882-00010 R431002387 10 RING, Supply Valve Retaining
P –049882-00044 R431002397 11 RING, Supply Valve Cage Retaining
-850022-00000 R431000116 20 STEM, Diaphragm
-521391-00000
-850023-00000
R431000021
R431000117
21* SPRING, Diaphragm Stem
VALVE, Exhaust, complete (Includes
22,26,27,29, and R431000119)
-850024-00000
-850025-00000
R431000118
R431000119
22 CAGE, Exhaust Valve
SEAL, Exhaust Valve, complete
(Includes 23, 24, and 25)
-850026-00000 R431000120 23 HOUSING, Exhaust Valve Seal
SEE KIT SEE KIT 24* SEAL, Exhaust Valve
850028 R431000121 25 RETAINER, Exhaust Valve Seal
SEE KIT SEE KIT 26* RING, 15/16” O.D. Ex.V. Seal
Housing Packing
SEE KIT SEE KIT 27* SPRING, Exhaust Valve
SEE KIT SEE KIT 28* RING, 1-5/8” O.D. Cage Packing
P –049921-00003 R431002551 29 RING, Exhaust Valve Retaining
P –049882-00010
-850030-00000
R431002387
R431000122
30 RING, Exhaust Valve Cage
DIAPHRAGM complete (Includes
35, 36, 37, three of 38 and 39)
-850031-00000 R431000123 35 FOLLOWER, Diaphragm
SEE KIT SEE KIT 36* DIAPHRAGM
P –067541-00000 R431007214 37 PLATE, Diaphragm Clamping
P –051181-00000 R431002887 38 SCREW, Diaphragm Clamping
(3 req’d)
P –049976-00004 R431002567 39 NUT, Diaphragm Clamping
(3 req’d)
SEE KIT SEE KIT 40*
GASKET, 9/16” Port
P –050394-00001 R431002633 41 COVER, Diaphragm
P –049871-00004 R431002350 42 BOLT, 5/16” x 1-1/4”
Diaphragm Cover (6 req’d)
P –049901-00020 R431002419 43 NUT, 5/16” x 1-1/4”
-527583-00000 R431000048 47 STRAINER (2 req’d)
-529161-00000 R431000051 48 RING, Strainer Retaining (2 req’d)
SEE KIT SEE KIT 49* GASKET, Pipe Bracket
P –050395-00000 R431002634 50 BRACKET, Pipe
P –049832-00149 R431002242 51 BOLT, 3/8” x 1-7/8”
Pipe Bracket (3 req’d)
P –049832-00149 R431002242 52 BOLT, 3/8” x 2-1/4” Pipe Bracket
P –049876-00001 R431002357 53 NUT, 3/8” (2 req’d)
Pipe Bracket (3 req’d)
*NOTE: Parts marked with an asterisk are recommended spares to be carried in stock at all times, Suggested quantities are 100% for rubber parts and 25%
for all other parts recommended. Spare parts may be ordered in Kit Form Pg. No R431004938 (Old No. P –059191-00000)
Prices will be quoted upon application
Orders should give PART NUMBER and NAME of part wanted

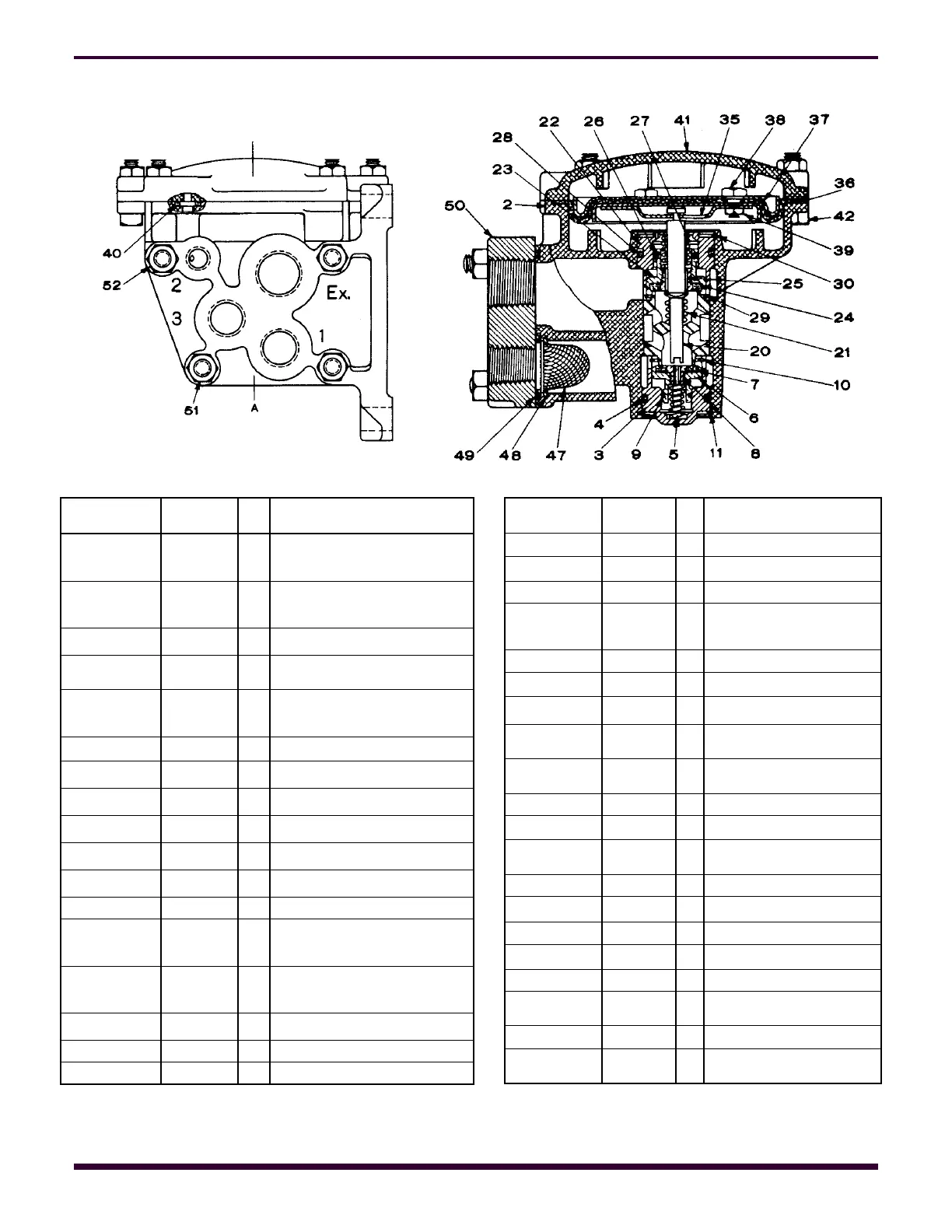

Fig. 3. Assembly View
A
To Next Page
