AVG AVF-306PS - Installation Procedure Steps; Cabinet Opening and Hood Fitment

21

PROCÉDURED’INSTALLATION
Thehoodshouldbepositionedatadistanceof71to76.2cm(28‐30’’)fromthecookingsurfacetobe
effective.

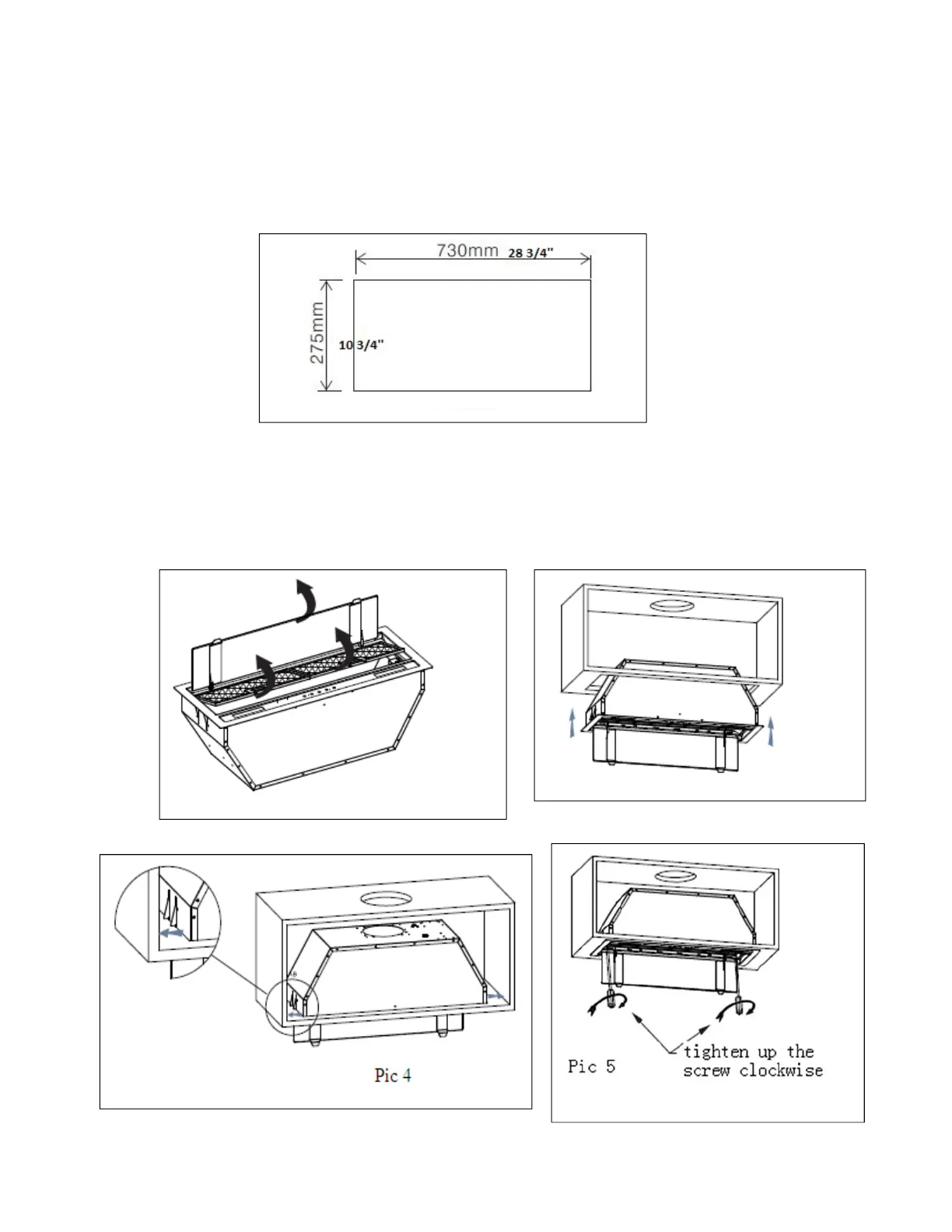

1. Drillahole28¾’’X10¾’’(730X275mm).SEEPic1.inthecabinet,Makesuretheedge oftheholeis1.4’’
wide(35mm)sothatthehoodissufficientlysupported..





2. Openthepanelandtakedownthealuminumfilter(PIC 2)
3. Putthehoodintothecabinet(PIC3),PUSHthebuckleontheexteriorsideofthehood(PIC4)andtighten
upthescrewsclockwisewithascrewdriver(PIC5).

Makesurethehood
iscorrectlytighteninposi tion

















PIC1 
PIC2
PIC3


