INSTALLATION PROCEDURE

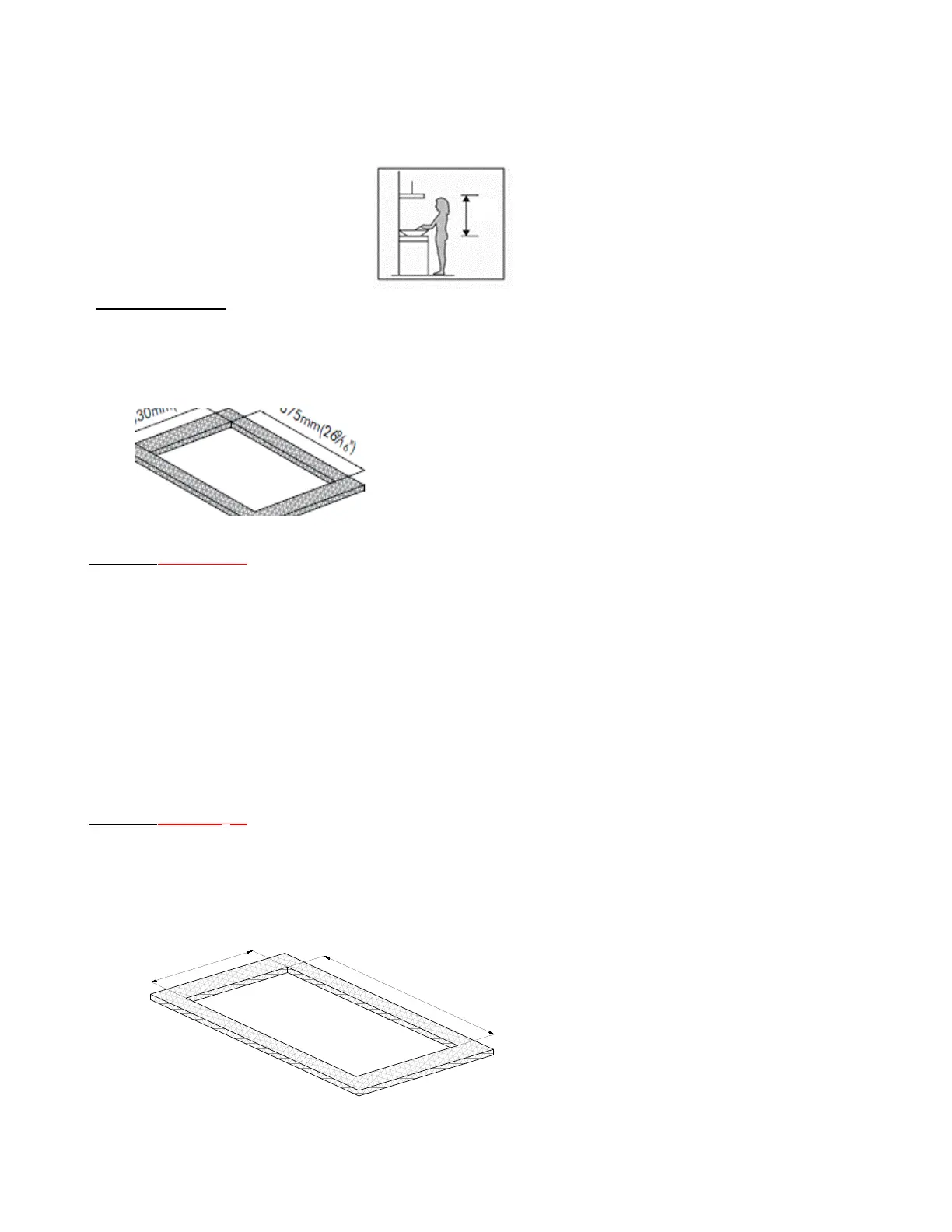

1.The hood should be positioned at a distance of 28"-30’’ from the cooking surface to be effective.
Model AVP286PPS
2. In the cabinet drill a 26
9/16
" x 17 "(675 X 430mm) hole. Make sure the edge of the hole is 1.4’’ wide
(35mm) so that the hood is sufficiently supported.
or Model AVP34108PS
2. In the cabinet drill a 32
7/8’’
x 17 (835X 430mm). Make sure the edge of the hole is 1.4’’ wide (35mm) so
that the hood is sufficiently supported.
or Model AVP44108PS
2.In the cabinet drill a 42
11/16 ’’
x 17 (835X 430mm). Make sure the edge of the hole is 1.4’’ wide (35mm) so
that the hood is sufficiently supported.
430mm(17")
1085mm(42 11/16")
