Table 3-2. INU and INUe Slot Assignments
Data is transported natively over an Eclipse wireless link, whether
Ethernet or TDM.
INU/INUe Slots
INU • Slots 1, 2, 3, 4 are universal: any RAC, DAC or
AUX plug-in
• Slot 4 is NPC or universal: NPC or any RAC, DAC,
AUX
• NCC and FAN slots are dedicated
• For protected operation the RAC/RAC, RAC/DAC
155oM, or DAC/DAC pairings can be installed in
any of the universal slots
INUe • Slots 1, 2, 3, 4, 5, 6 are universal: any RAC,
DAC or AUX plug-in
• Slots 7, 8, 9 are restricted: any DAC or AUX,
except DAC 155oM and AUX where NMS access
is required
1
• Slot 10 is restricted: NPC option only
• NCC and FAN slots are dedicated - the INUe is
supplied standard with a single 2RU FAN, though
accepts two 1RU FANs
• RAC/RAC, or RAC/DAC 155oM protected
pairings must be installed in the positions
indicated by the arrows
• For protected DACs, the protection partners can
be installed in slots 1 to 9, except for the DAC
155oM where NMS access is needed, in which
case install only in slots 1 to 6
1. Internal (backplane bus) NMS access is only provided on slots 1 to 6. Do not install DAC 155oM or AUX in
slots 7 to 9 if an NMS connection is required in their configuration.

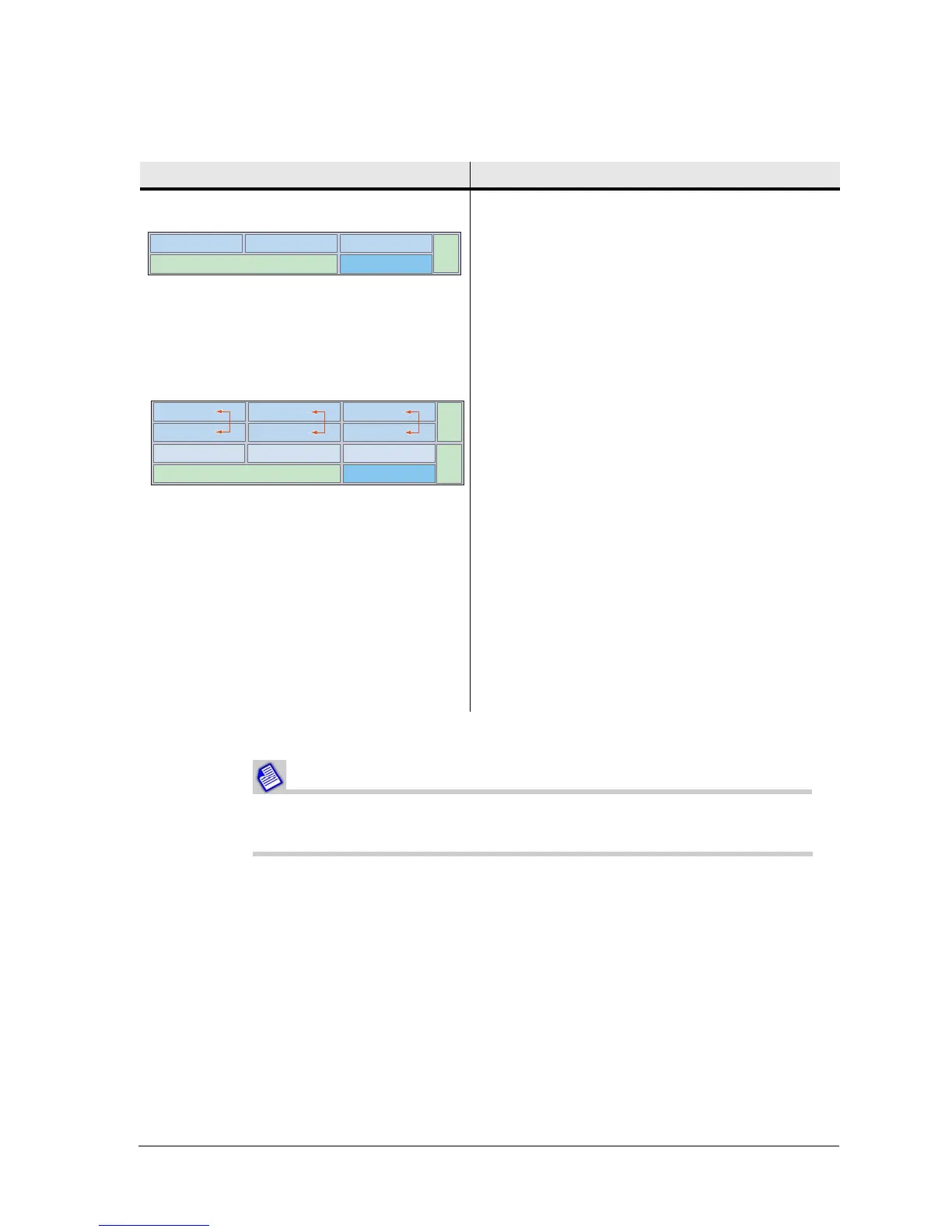

Fan
Slot 1 Slot 2 Slot 3
NCC Slot 4
Fan
Slot 1 Slot 2 Slot 3
Slot 4
Fan
Slot 7
Slot 5 Slot 6
Slot 9
Slot 8
NCC
Slot 10
