3-10 Aviat Networks
Chapter 3. System Overview
Platform Layout
Eclipse supports flexible customization of traffic type, traffic capacity, and traffic
protection.
Table 3-1 lists INU and INUe platform support for:
• Non-protected and protected/diversity links
• Slot availability for option plug-ins
• Over-air data types supported
• IRU 600

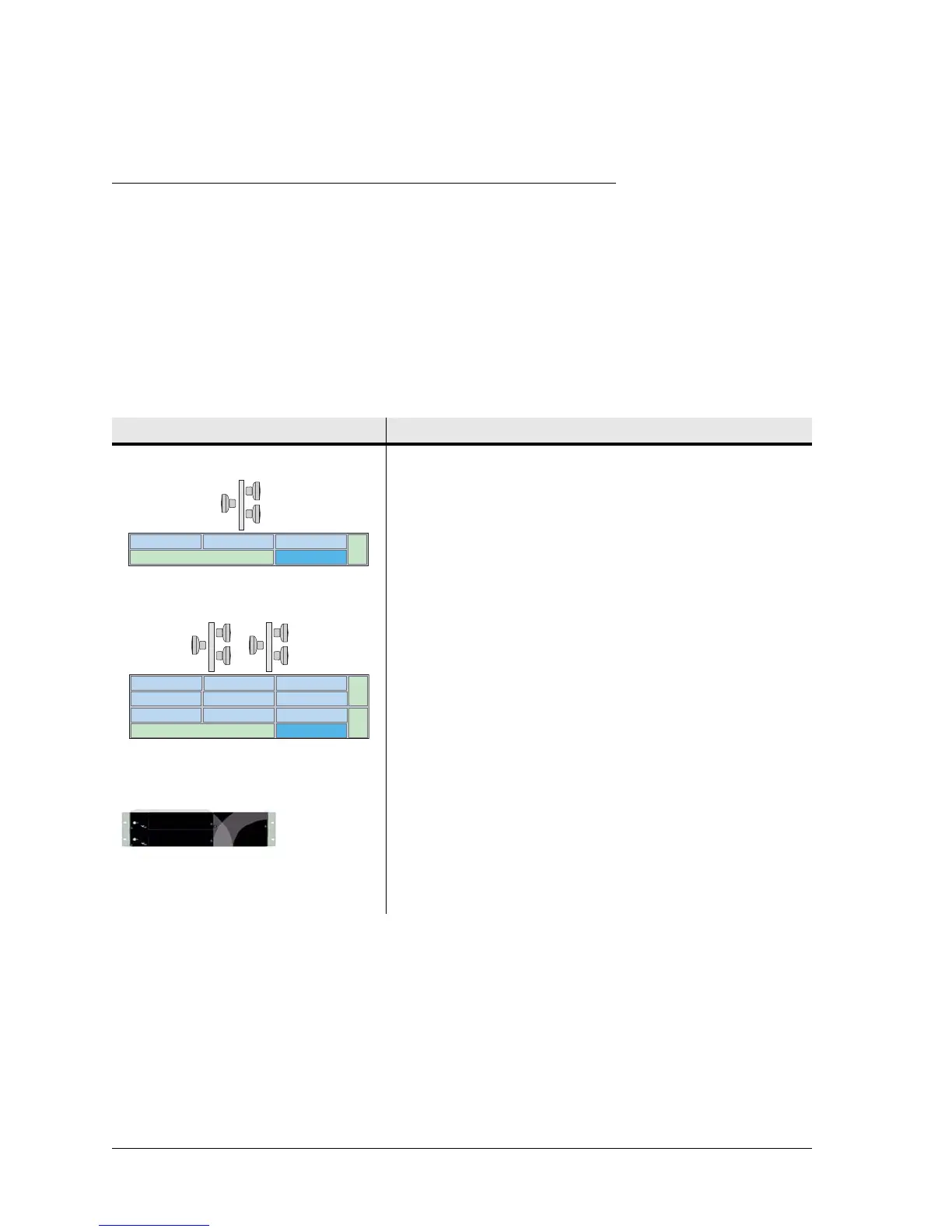

Table 3-1. INU and INUe Platforms
Table 3-2 lists INU and INUe slot assignment rules.
INU • Supports 3 non-protected links or 1 protected/diversity
and 1 non-protected link
• Slots 1 to 4 support radio or traffic port options for:
• Ethernet, DS1, DS3, OC3
• Auxiliary data and alarm I/O
• NPC option may only be installed in slot 4
INUe • Supports up to five 1+0 RAC 60 links or four RAC 6X
links
• Supports two 1+1 protected links (4xRACs)
• Slots 1 to 6 support radio or port options. Slots 7 to 9
support port options only. Port traffic options include:
• Ethernet, DS1, DS3, OC3
• Auxiliary data and alarm I/O
• Slot 10 is reserved for the NPC option
IRU 600 • IRU 600:
• QPSK to 256 QAM.
• Requires RAC 60 or RAC 6X. Fixed or adaptive
modulation rates.
•1+1 optimized.
• High power and standard power RFU options
Fan
Slot 1 Slot 2 Slot 3
NCC Slot 4
Fan
Slot 1 Slot 2 Slot 3
Slot 4
Slot 7
Slot 5 Slot 6
Slot 9
Slot 8
NCC
Slot 10
