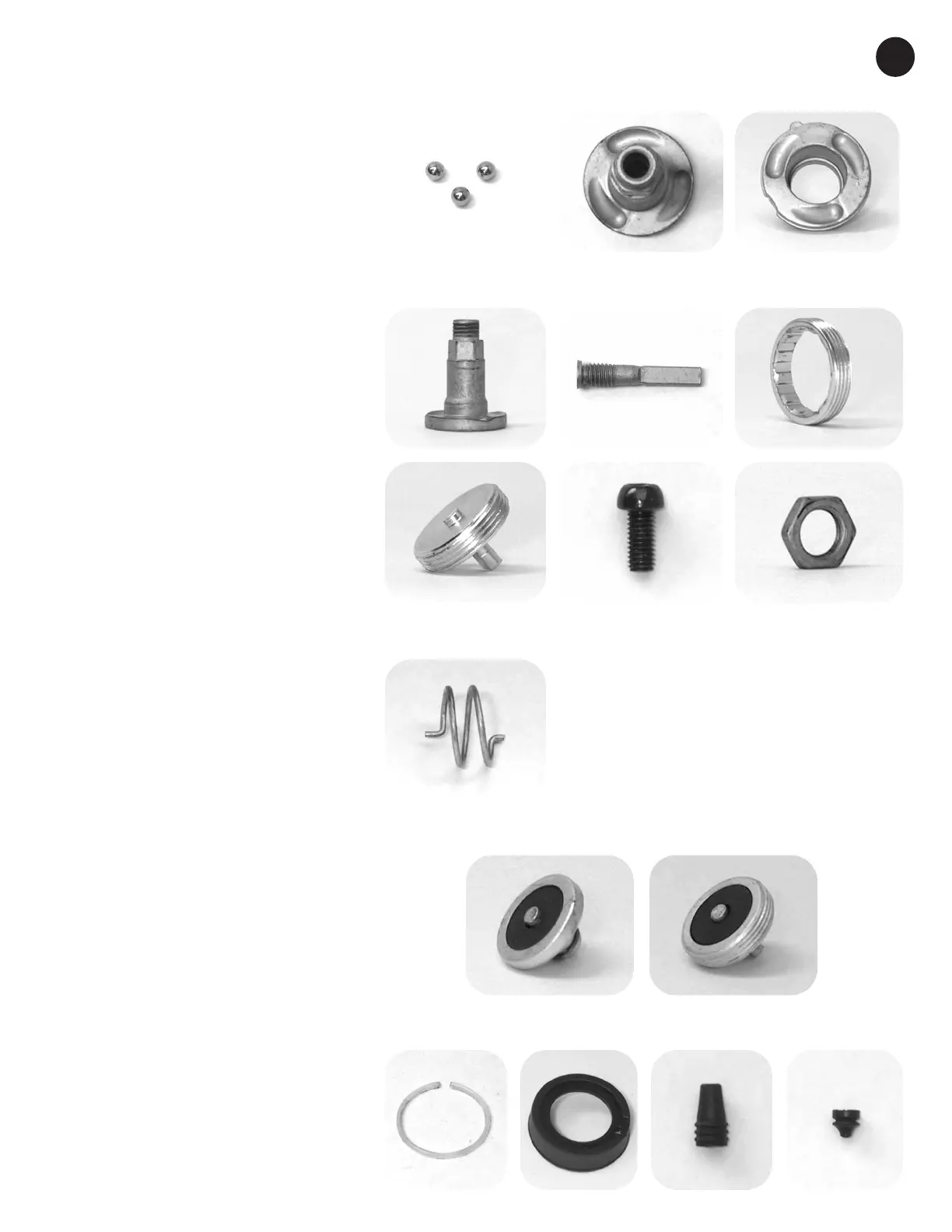

STEP 3: SMALL PART INSPECTION
Inspect the small parts as follows:
-check ball bearings and cam ramps for
excessive wear.
NOTE: It is normal to see ball tracks in the
cam ramps.
-check the threads of the drive cam, foot
screw, lockring, inner pressure foot,
cable anchor bolt, and torque arm fixing
nut for damage.
-check the spring for any signs of
damage.
-on TYPE F calipers, make sure the
pressure foot magnets are present and
working.
-check the inner body seal, outer body
seal, and cable seal boots for nicks,
tears, or cracking.
