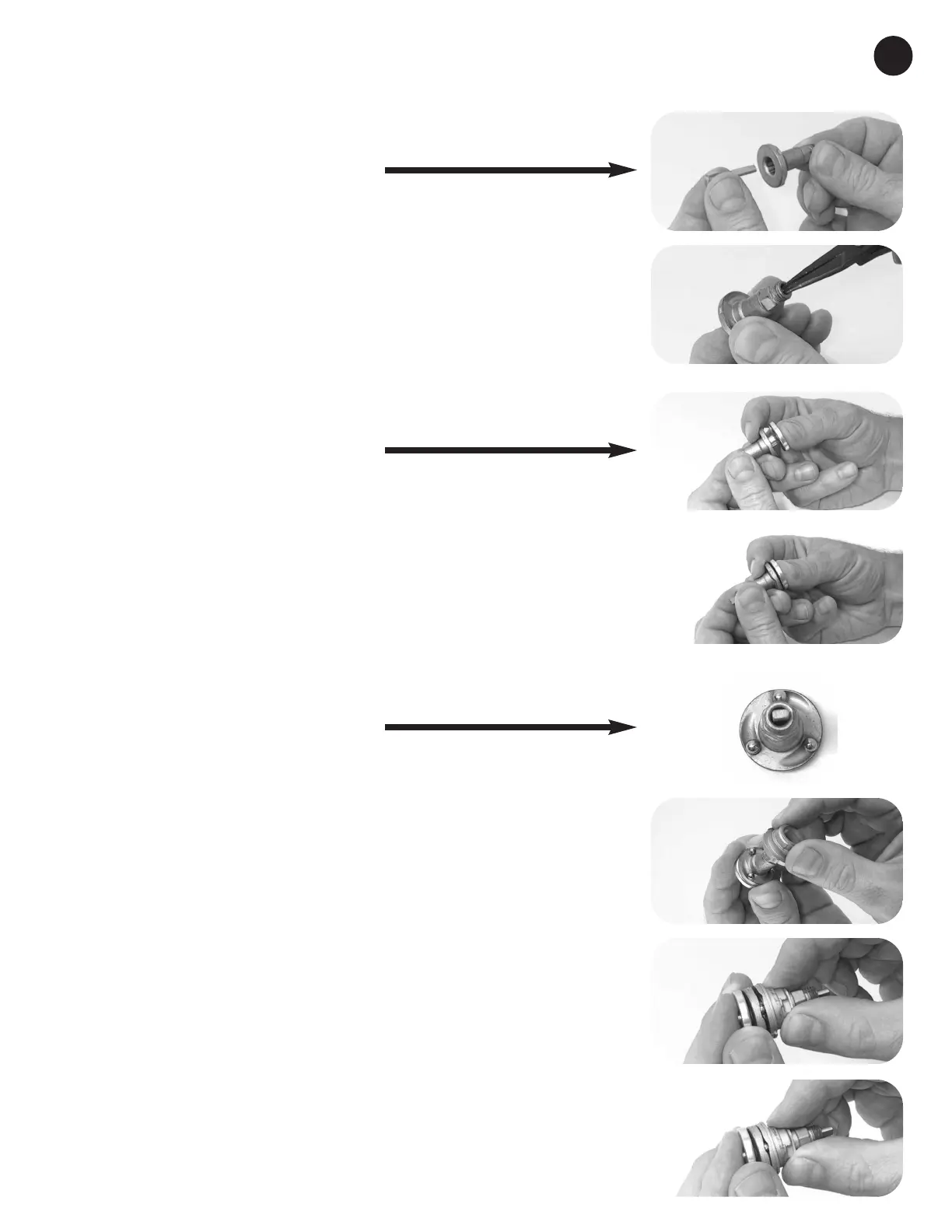

STEP 9. INSTALL OUTBOARD PRES-
SURE FOOT
Engage the stem-end of the outer pressure foot
into the hole in the end of the drive cam and
install by firmly pressing it straight in.
STEP 10: ASSEMBLE THE CAMS
Place the ball-bearings into the ramps of the drive
cam, then install the fixed cam over the shaft of
the drive cam. Rotate the cams against each
other to ensure the ball-bearings are seated
properly in both sets of ramps.
STEP 8. INSTALL FOOT SCREW
Using small needle-nose pliers or a Schrader
valve tool, thread the footscrew into the drive cam
completely, but do not tighten.
TYPE F TYPE N
