TYPE F TYPE N

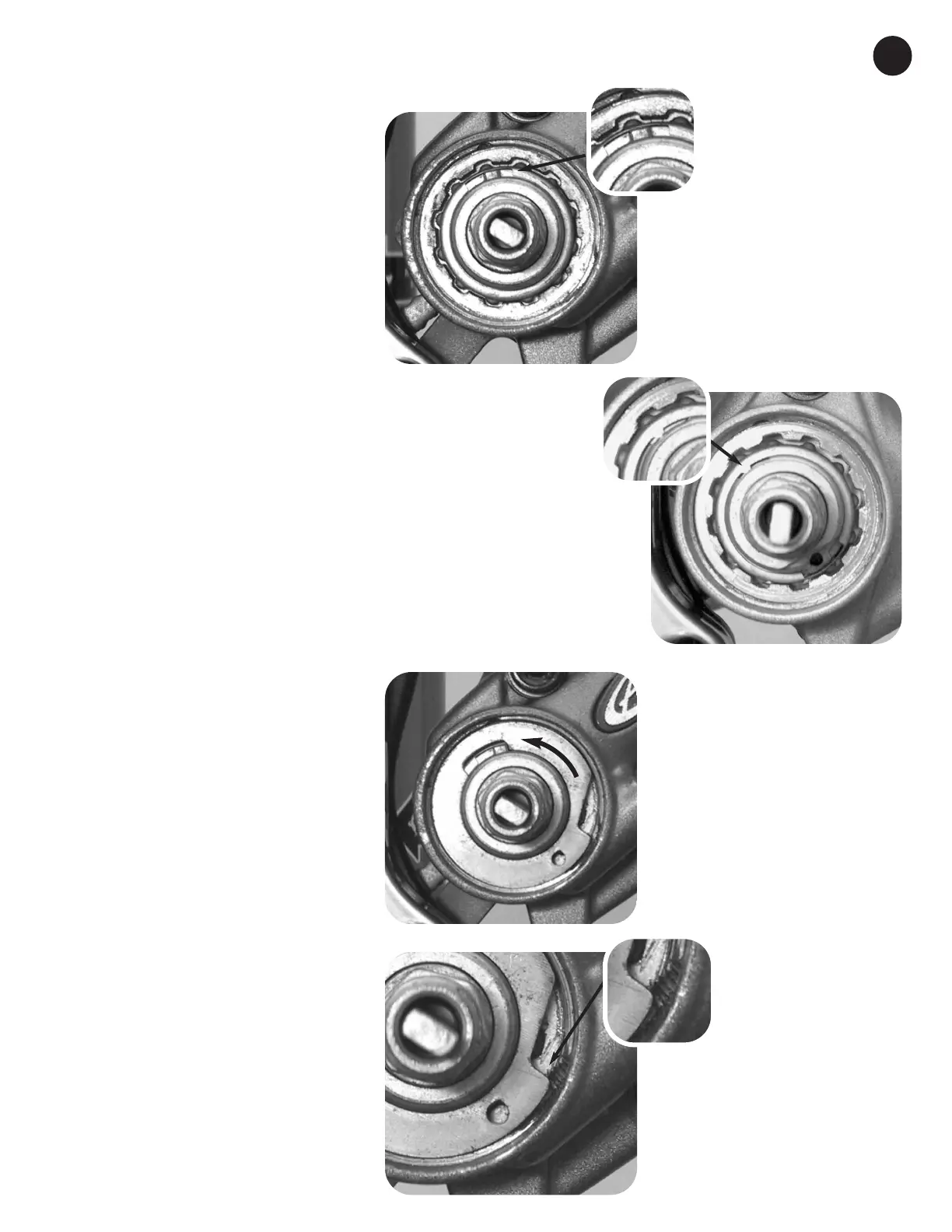

STEP 14: INSTALL LOCKRING RETAINER
TYPE F - Install the lockring retainer, aligning the
cut-out in the retainer with the tab on the fixed
cam.
TYPE N - Install the lockring retainer, aligning the
tab on the retainer with the cut-out in the fixed
cam.
STEP 15 (TYPE F ONLY): INSTALL
SPRING ADJUSTER PLATE
Install the spring adjuster plate, rotating it to the
lowest spring tension setting. This position will
make it easier to install the torque arm later.
STEP 16 (TYPE F ONLY): INSTALL
SPRING ADJUSTER SCREW
Install the spring adjuster screw, turning it in just
far enough to engage the spring adjuster plate.
