TYPE F TYPE N

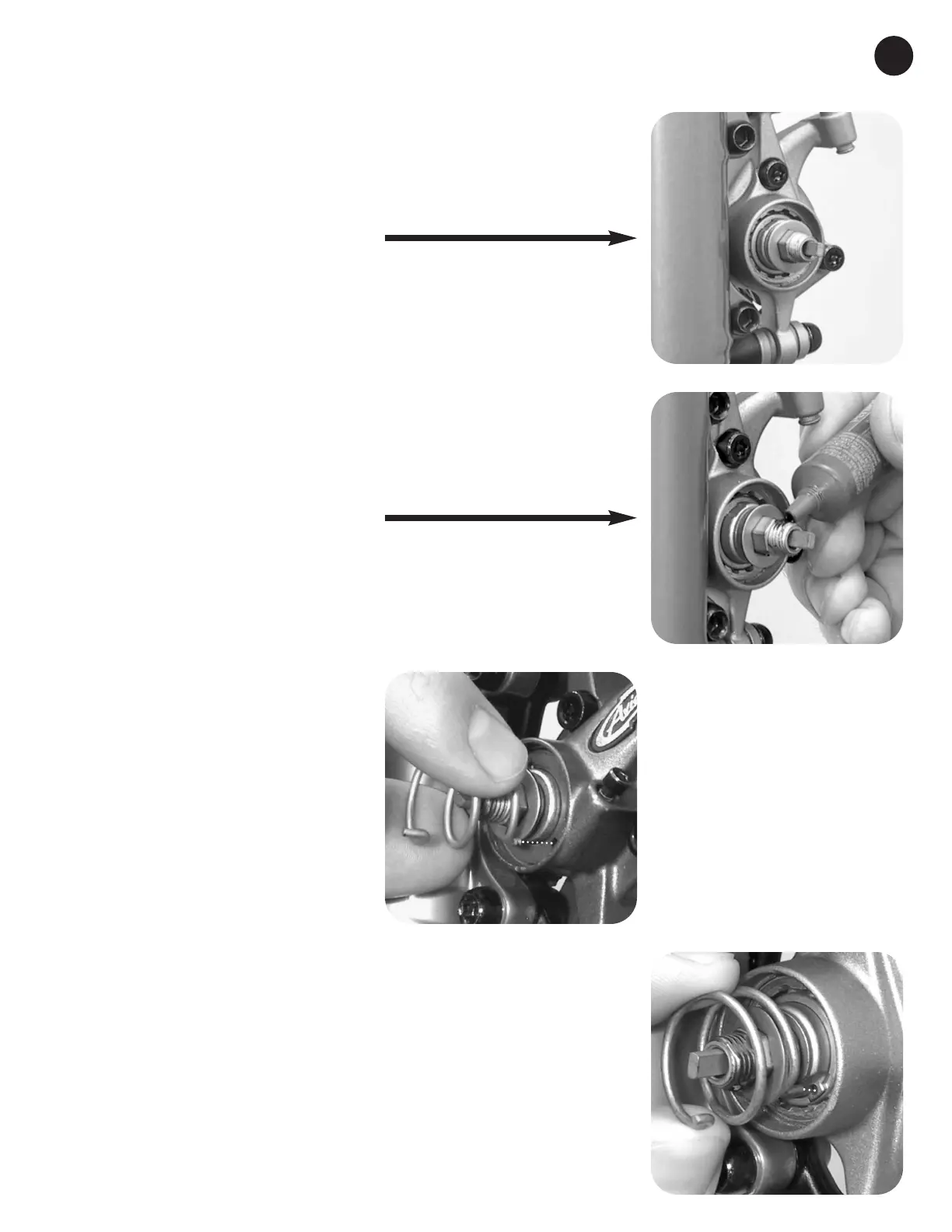

STEP 17: INSTALL HEX-HOLE WASHER
Place the hex-hole washer over the drive cam
shaft, engaging the flats on the shaft.
STEP 18: APPLY THREAD-LOCK
Apply a high-strength thread-lock such as Loctite
272 to the drive cam threads. Be careful not to
allow any thread-lock to enter the area around
the footscrew.
STEP 19: INSTALL SPRING
TYPE F - Install the spring with the short spring
tab engaging the hole of the spring adjuster plate.
TYPE N - Install the spring with the long spring
tab engaging the hole in the fixed cam.
16
