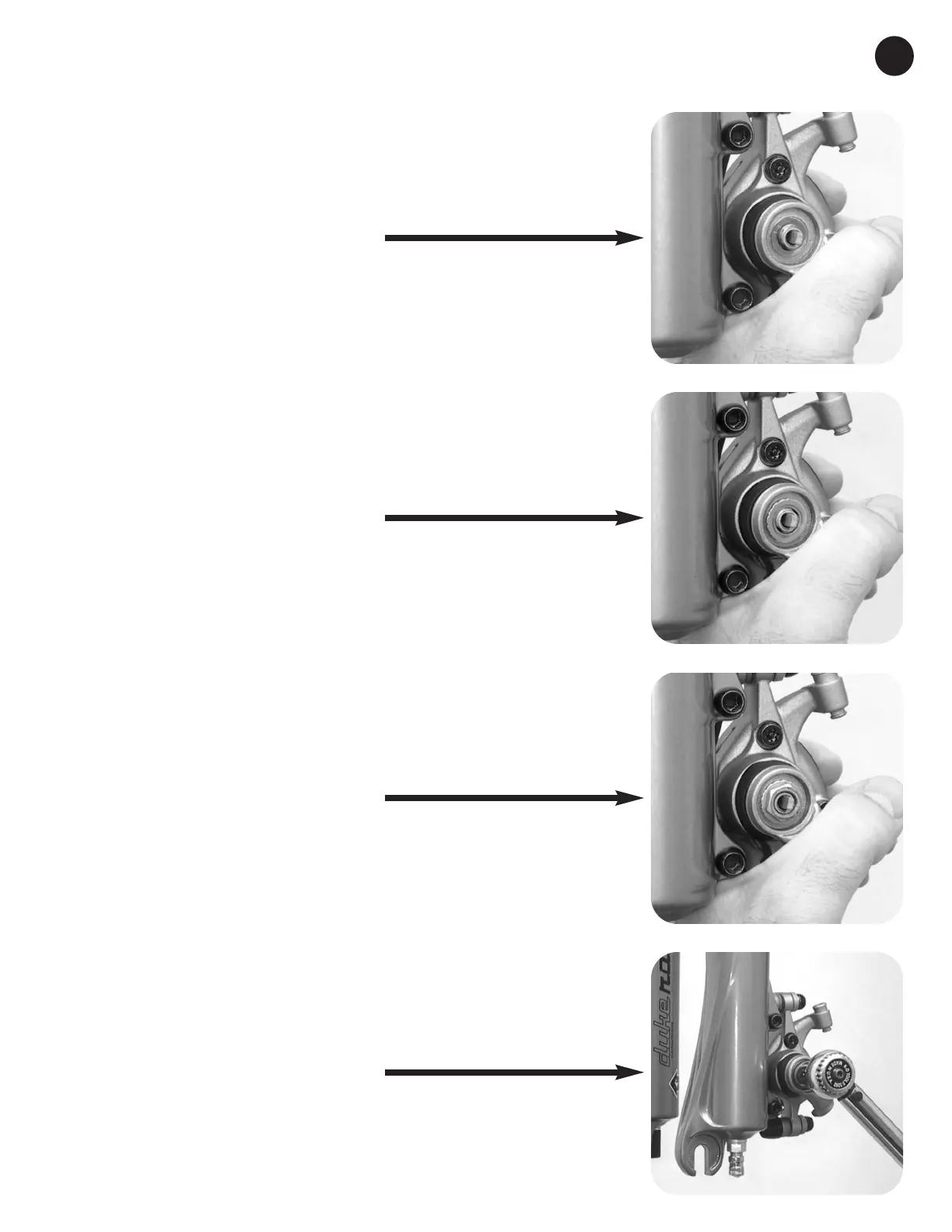

STEP 24: INSTALL FLAT WASHER
Place the flat washer over the drive cam shaft
and against the torque arm.
STEP 25: INSTALL DETENT WASHER
Place the detent washer over the drive cam shaft
and against the flat washer with the rounded
edge up.
STEP 26: INSTALL TORQUE ARM FIXING
NUT
Thread on the torque arm fixing nut by hand, then
torque to 55-60 In. Lbs. Be careful not to
over-tighten!
