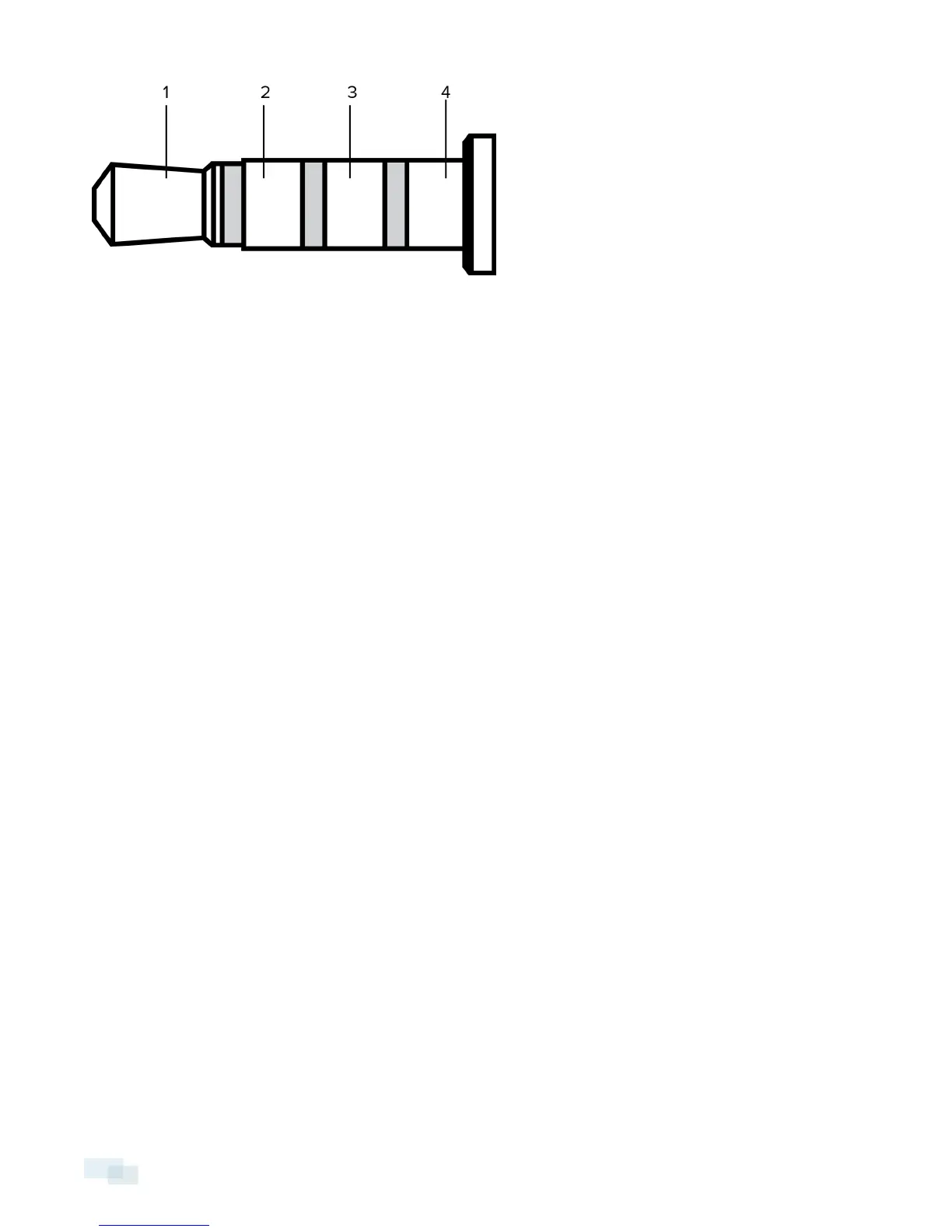

Figure 1: Mini-jack audio video connector
1. Audio IN
2. Composite Video OUT
3. GND
4. Audio OUT
NOTE: Composite Video OUT is not available for 3.0 MP video analytics camera models.
