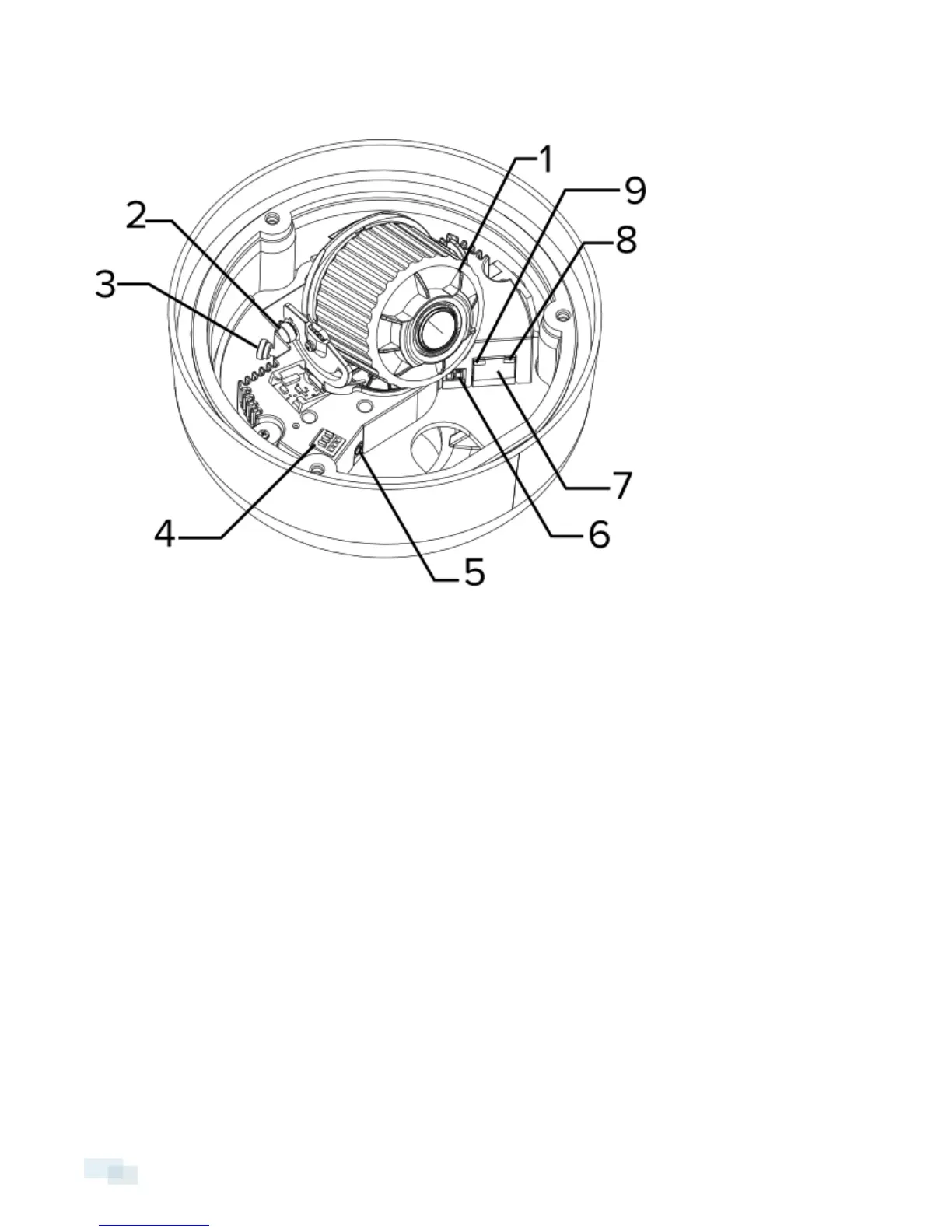

Front View
1. Azimuth Control
Provides adjustment of the image angle.
2. Tilt Lock Thumb Screws
Provides a locking mechanism for the image tilt adjustment.
3. Pan Lock Thumb Screws
Provides a locking mechanism for the image pan adjustment.
4. I/O Connector Block
Provides connections to external input/output devices.
5. Audio/Video Connector
Accepts a mini-jack connector (3.5 mm).
6. Power Connector Block
Accepts a terminal block with either an AC or DC power connection. DC input can be either polarity. Only
required when Power over Ethernet is not available.
7. Ethernet Port
3 Front View
