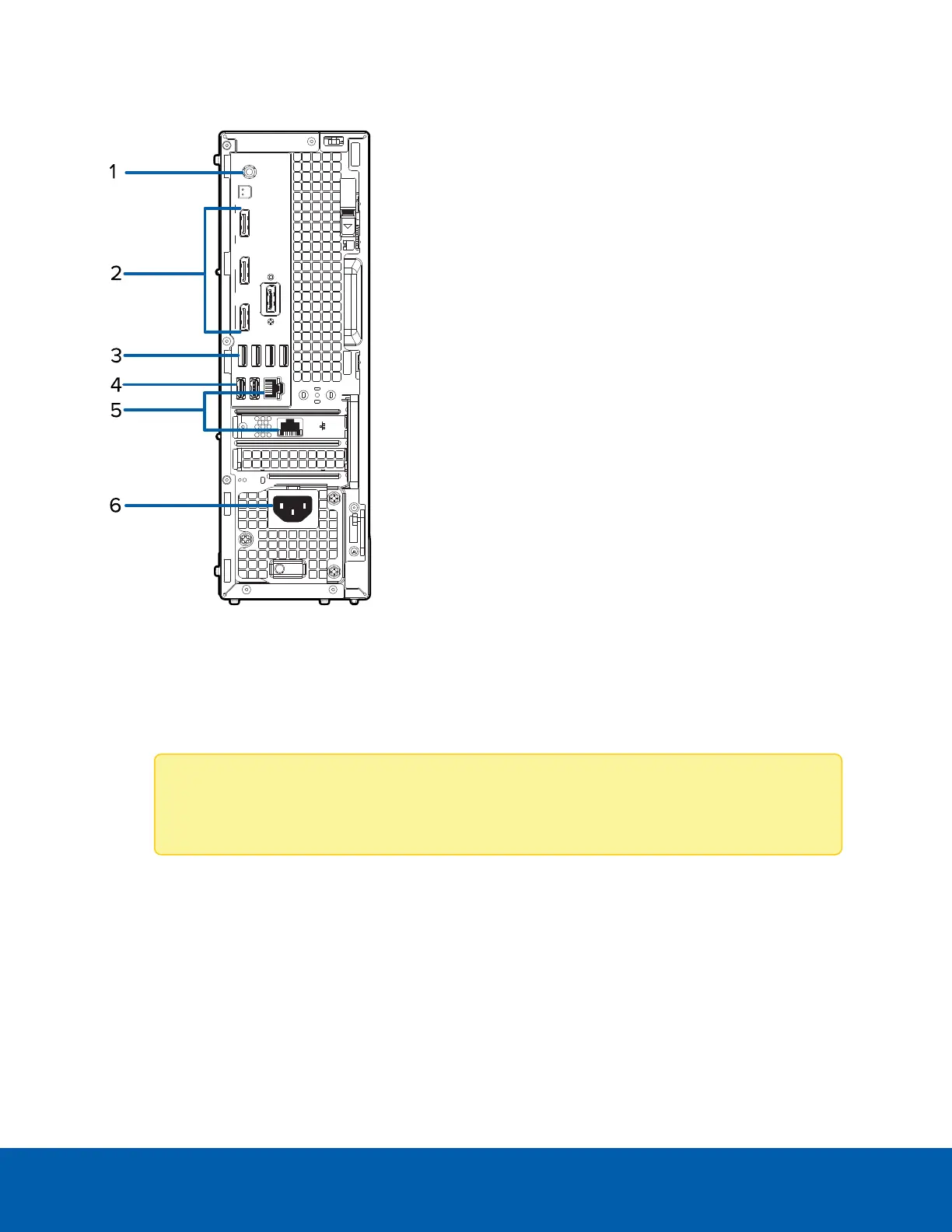

Avigilon NVR5 - Back View

Back View
1.
Audio port
Accepts a connector to an audio system — line in or line out.
2.
DisplayPorts
Accepts DisplayPort connectors to display monitors.
To ensure optimal performance, Avigilon recommends using a maximum of two ports at once.
Note: From top to bottom, Windows orders these DisplayPorts 3, 1, 4, then 2. Ensure that
monitors are connected in numerical order, especially if using a 2-Monitor workstation.
3.
USB 3.2 ports
Accepts USB connectors to external devices, including the supplied keyboard and mouse.
4.
USB 2.0 ports
Accepts USB connectors to external devices, including the supplied keyboard and mouse.
5.
1 Gigabit Ethernet ports
Accepts Ethernet connections to the network.
6.
Power supply connector
Accepts a power supply connection.
Back View 6
