AVIRE DCP - ADVANCED LIFT SYSTEM TOPOLOGIES; Two-Lift Car System Architectures; Four-Lift Car System Architecture

17

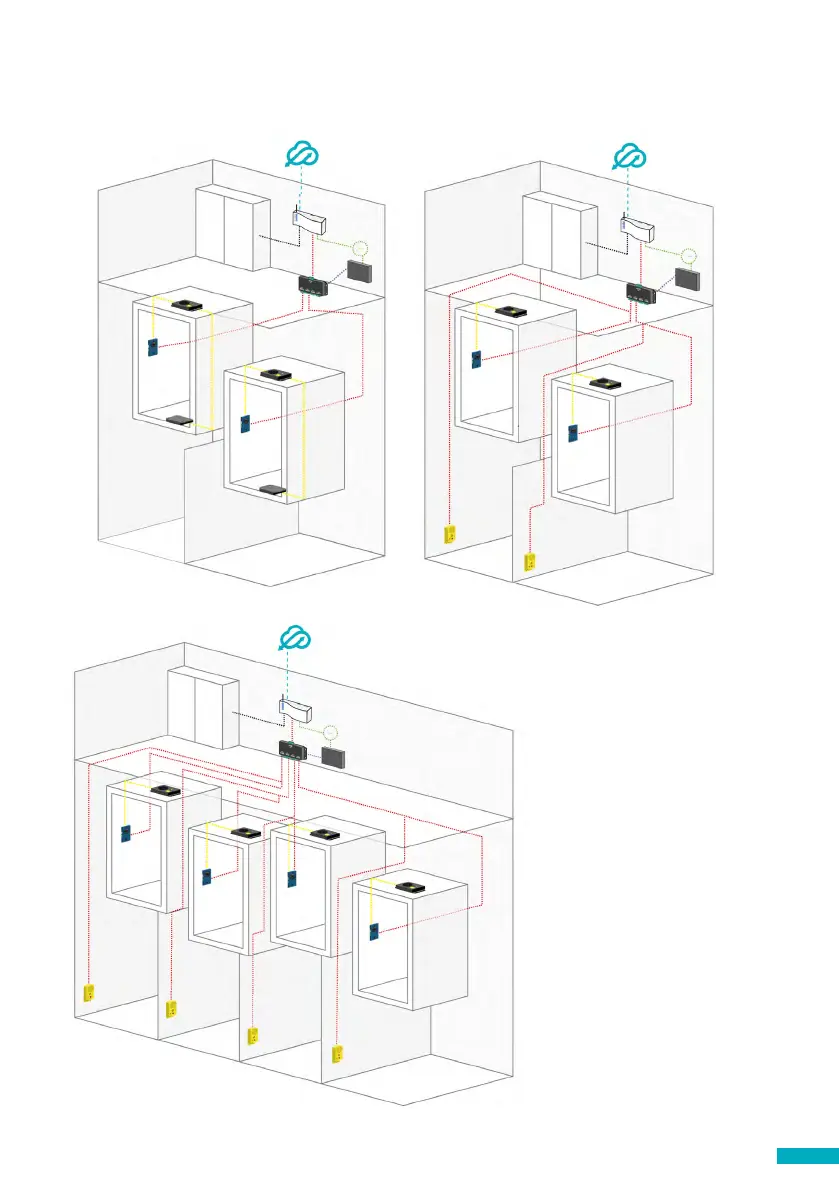

Two lift car system architecture with DCP,
DAU, TOC and BOC Triphony Units
Two lift cars with DCP, UPS, CANBus Splitter,
TOC Triphony Unit, DAU, PIT Phone.
Four lift cars with DCP, UPS, CANBus
Splitters, DAU, Triphony Units TOC,
PIT Phones
There is a maximum of two
CANBus Splitters per DCP
Notes
UPS battery back up only
uses H and L wires from
DCP
