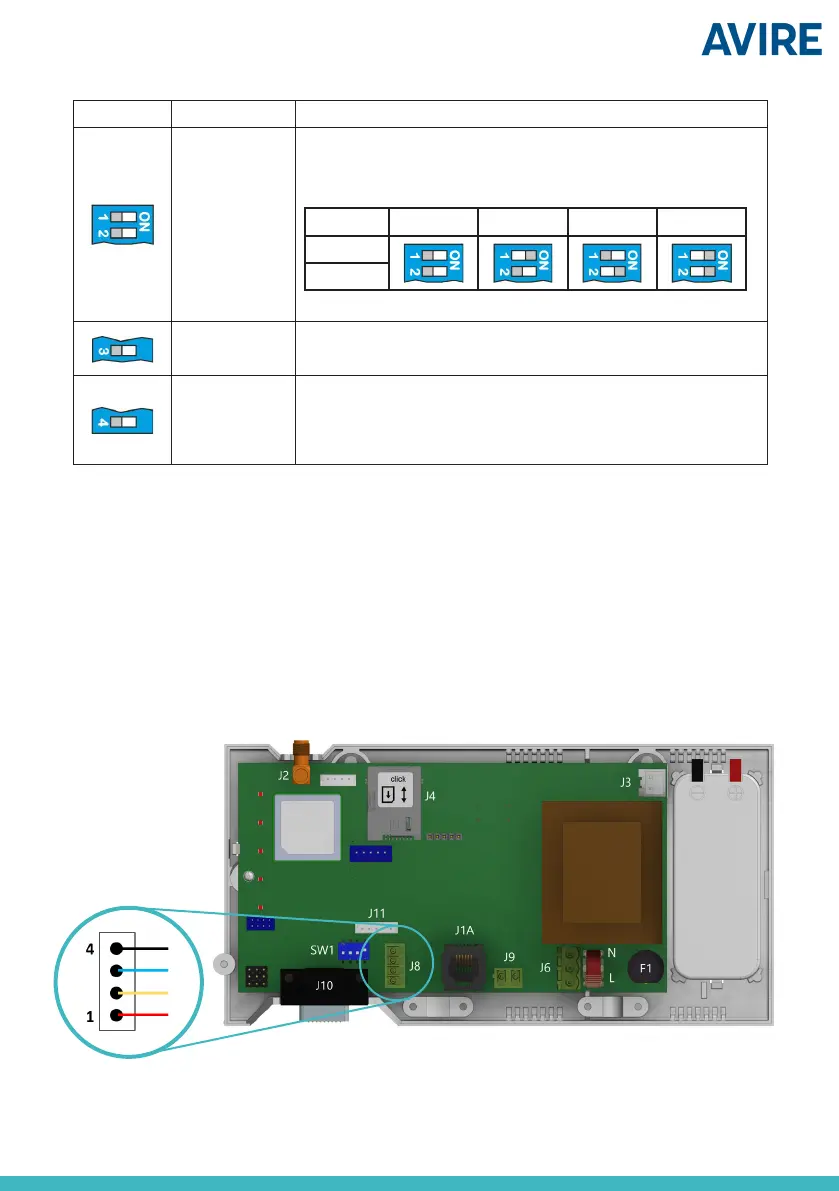

DAU CONFIGURATIONS (SW1)
SW1 FUNCTION DESCRIPTION
Shaft (car)
number
In a system with more than one lift car you need to select the lift
shaft for each DAU. The below table shows how you can set the
ID for each DAU.
Car 1 2 3 4
SW1- 1
SW1- 2
Not used
Not used
CAN Ω
Activates the CANBus End of Line (EOL) for the CAN connector.
ON - DAU LPBus if the last device in line
OFF - Other devices are connected to DAU apart from DCP
CONNECTION TO CANBUS
When installing a DAU connect the unit or the CAN Bus Splitter to J8 using a 4-core cable (a CAN
Bus Splitter is required when a DCP is supporting more than one lift). Please note that if the
device is wired incorrectly, the DAU will not work.
• If only the DAU is connected to the DCP set SW1:4 to ON (default setting) on both, as these
devices are End of Line.
• If the DAU is an intermediate device between the DCP and another CAN device, set SW1:4 on
the DAU to OFF.
• The use of shielded twisted pair cables is recommended.
