Page 3
Pre-Installation Requirements

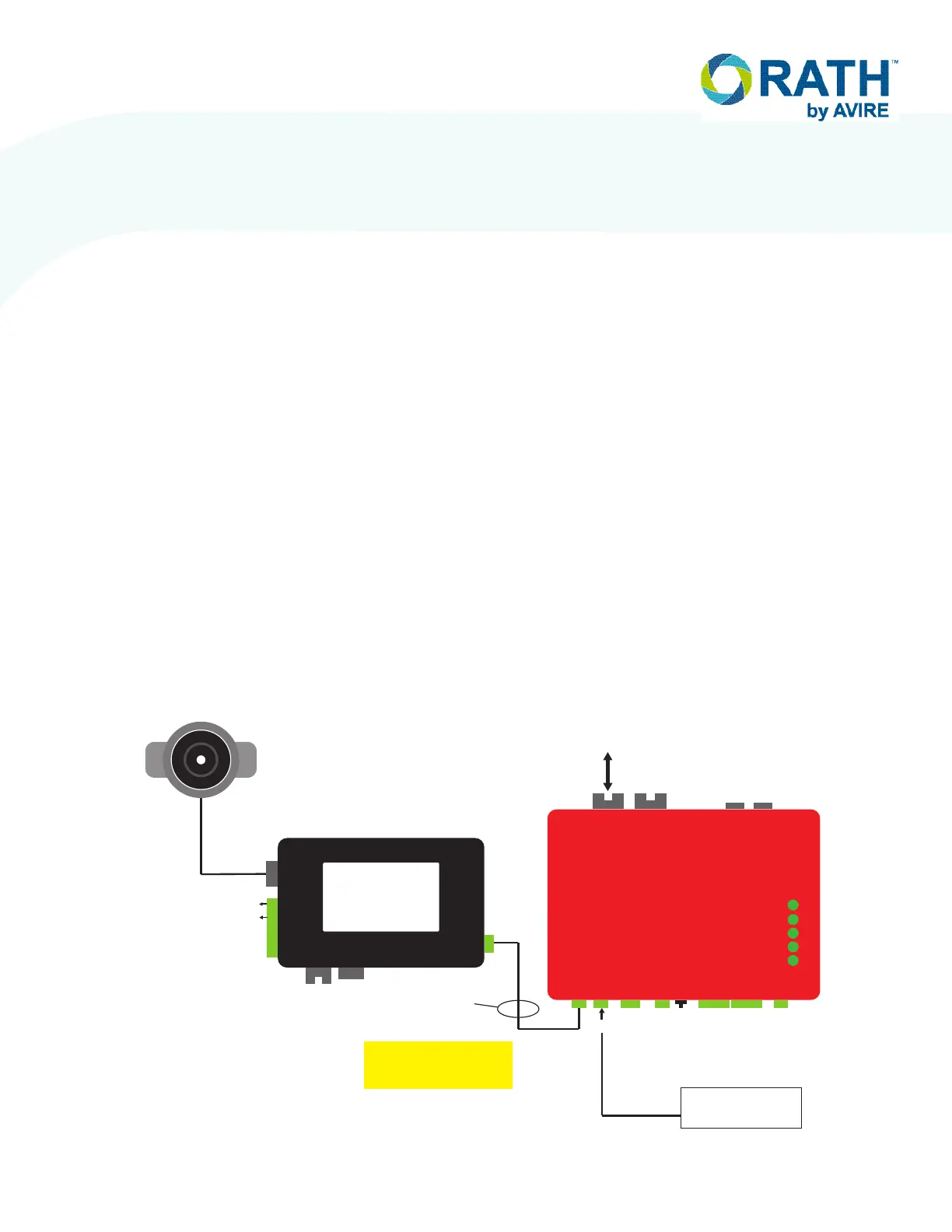

Wiring Diagram
Required (Not Included):
• Machine Room Unit (Part Number: 7100) and
Included Components:
• 24vdc Plug-in Transformer
• Terminal Connectors
• WIFI Dongle
• 110vac Battery Backed-up Power Source
(RATH Part Number: RP7700104S)
• External USB camera (RATH Part Number: 2100-SVCF)
• Mounting Hardware
• 1 Pair shielded or unshielded wire (18AWG required)
• Routed Internet Connection (See Page 18 for full list of
requirements)
• Ethernet Cable to connect hardware to Internet
connection
• Small screwdriver
• Drill
• Mobile device, Laptop, or PC for programming
• Yes/No or Door Open/Closed buttons
• Protective Display Cover
• For .118” Panels: RP0007-258
• For .156” Panels: RP0007-259
Required (Included):
• Elevator Unit (Part Number: 7200M)
• Terminal Connectors
Machine Room Unit (7100)
ETH IN
ETH OUT
USB2 USB1
RESET BUTTON
RELAY
PLC
24VDC POWER
POWER
STATUS
INTERNET
TEL IN
CAR PHONE
NO
YES
USB1
PLC
USB2
1 Pair
18AWG
Maximum Distance between
Elevator Unit and Machine Room
Unit is 1000 ft.
24vdc
(No or Door Closed) Push Button
(Yes or Door Open) Push Button
Elevator Unit (7200M)
Provided Plug-In
Transformer
110vac Battery Backed-up
Power Supply
RATH Part Number: RP7700104S
Up to three SmartView 2 systems can
be installed on one RP7700104S.
External USB Camera
RATH Part Number: 2100-SVCF
Routed Internet
Connection
To Next Page
