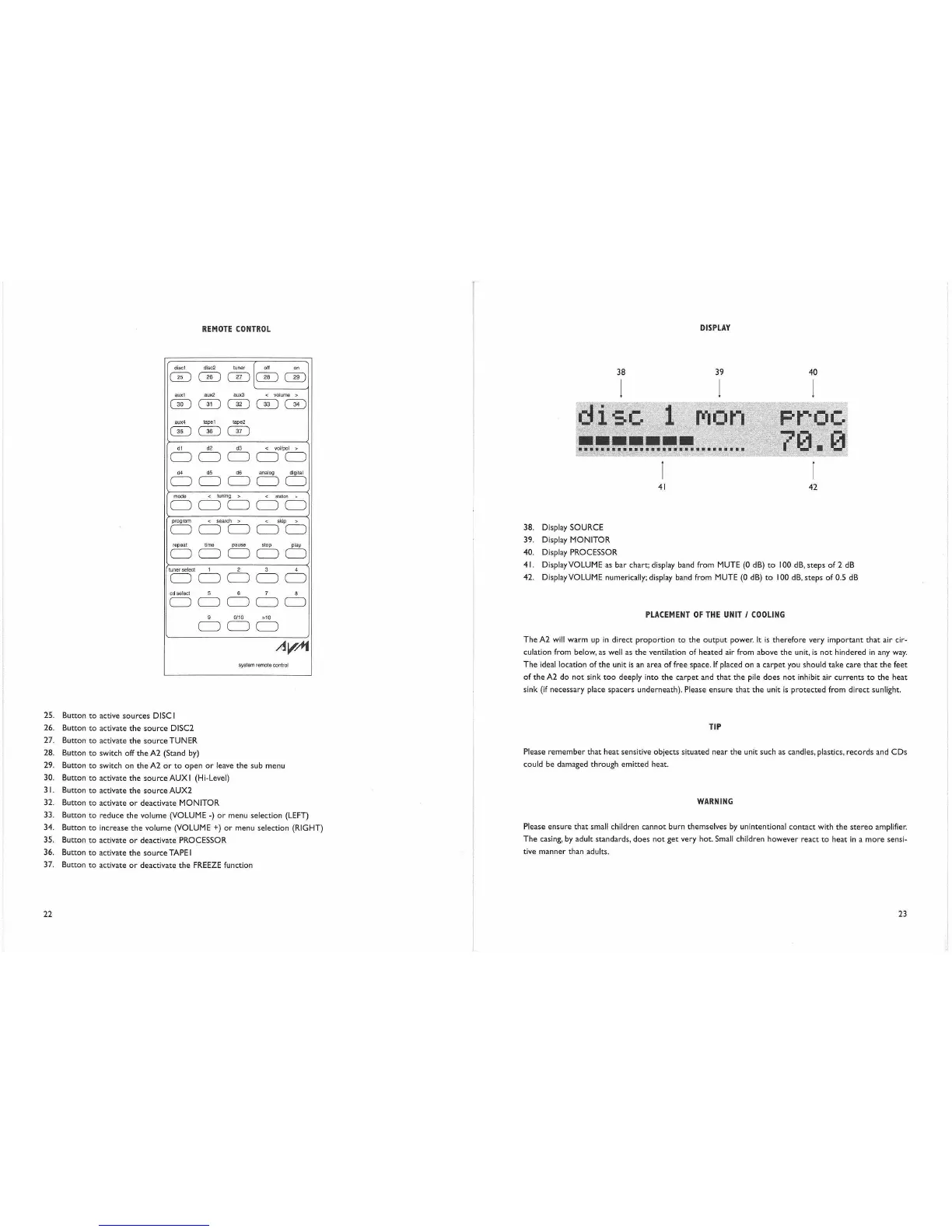

AVM EVOLUTION A2 User Manual

REMOTE CONTROL
DISPLAY
PLACEMENT OF THE UNIT I COOLING
38. Display SOURCE
39. Display MONITOR
40. Display PROCESSOR
41. DisplayVOLUME as bar chart; display band from
MUTE (0 dB) to 100 dB, steps of 2 dB
42. DisplayVOLUME numerically; display band from MUTE (0 dB) to 100 dB, steps of 0.5 dB
The A2 will warm up in direct proportion to the output power. It is therefore very important that air cir-
culation from below,
as well as the ventilation of heated air from above the unit, is not hindered in any way.
The ideal location of the unit is an area of free space. If placed on a carpet you should take care that the feet
of the A2 do not sink too deeply into the carpet and that the pile does not inhibit air currents to the heat
sink (if necessary place spacers underneath). Please ensure that the unit is protected from direct sunlight.
40
42
39
41
............. ~ ~ .
, '" ~4 >&1 . '''-''""' __ ,
38
I
OlSC
.~ ~ :;
disc1 disc2 tuner off 00
GD
OD
OD
OD
OD
aux1
",,<2
aux3 <: volume >
~
OD OD
GDOD
aux4
lapel lape2
OD
OD OD
d1 d2 d3 < vol/pol >
CJ CJ
CJ
CJ
CJ
d4 d5 d. analog digital
CJ
CJ
CJ
CJ CJ
mode
<
tuning
>
<
station
>
CJ
CJ
CJ
CJ
CJ
program <: search >
<
skip
>
CJ
CJ CJ
CJ
CJ
repeat lime pause stop
play
CJ
CJ CJ CJ CJ
luner select 1 2
3
4
CJ CJ
CJCJ CJ
cd select
5
•
7
8
CJ
CJ CJ CJ CJ
9
0/10 >10
CJ CJCJ
AV~
system remote control
25. Button to active sources DISC I
26. Button
to activate the source DISC2
27. Button
to activate the source TUNER
28. Button
to switch off the A2 (Stand by)
29. Button to switch on the A2 or to open or leave the sub menu
30. Button
to activate the source AUX I (Hi-Level)
31. Button
to activate the source AUX2
32. Button
to activate or deactivate MONITOR
33. Button
to reduce the volume (VOLUME -) or menu selection (LEFT)
34. Button to increase the volume (VOLUME +) or menu selection (RIGHT)
35. Button
to activate or deactivate PROCESSOR
36. Button
to activate the source TAPE I
37. Button
to activate or deactivate the FREEZE function
TIP
Please remember that heat sensitive objects situated near the unit such as candles, plastics, records and CDs
could be damaged through emitted heat.
WARNING
Please ensure that small children cannot burn themselves by unintentional contact with the stereo amplifier.
The casing, by adult standards, does not get very hot. Small children however react to heat in a more sensi-
tive
manner than adults.
22
23
