AVM FRITZ! Repeater 2400 User Manual

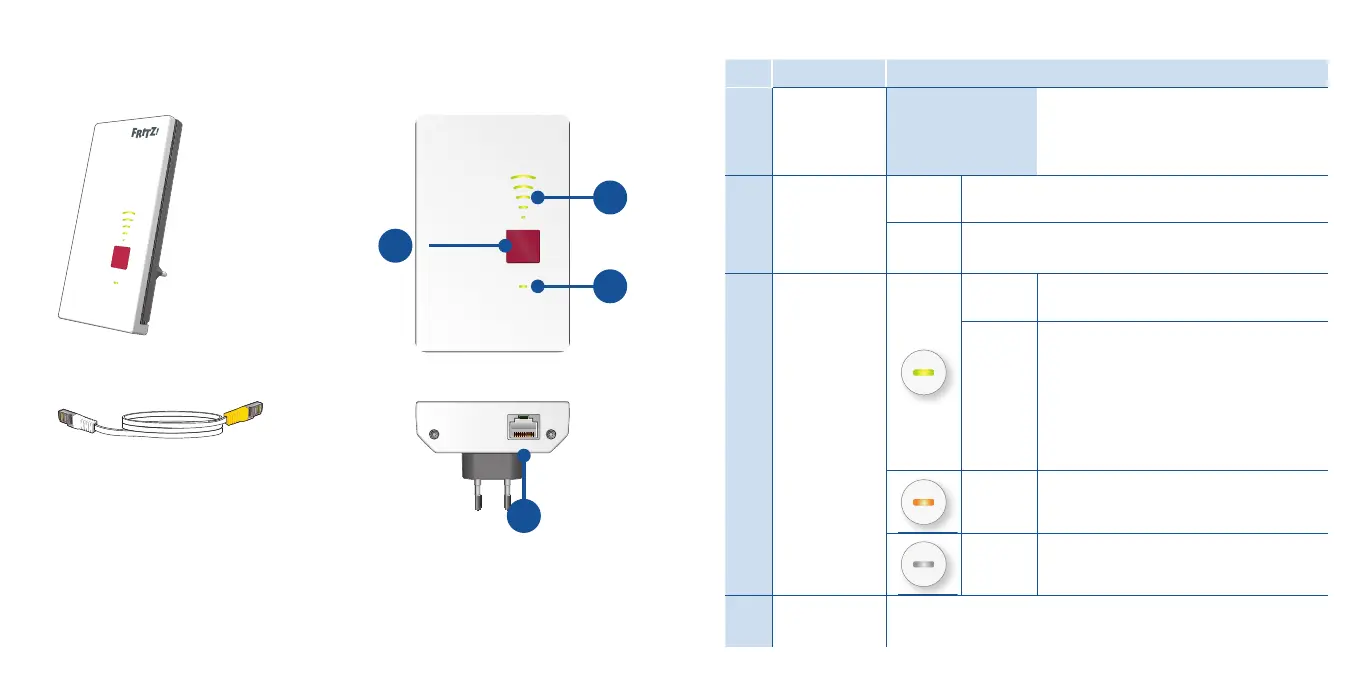

Package Contents and Device Features
No. Meaning Function
1
Button
Connect
Press for
1 second
Connects (WPS)
Press for
6 seconds
Connects with
other access point
Press for
15 seconds
Loads factory
settings
2
LED
Connection
quality
on
Signal strength of the wireless LAN connection
(greatest wireless network range with 3 bars)
off
• Wireless LAN disabled
• Schedule enabled
3
LED
Status
shows the
connection to the
FRITZ!Box
(wireless router)
on
Connected with FRITZ!Box (wireless
router)
fl ashing
• Slowly (every 2 seconds):
not connected with FRITZ!Box (wire-
less router), no wireless connection
confi gured
• Fast (twice per second):
a procedure like WPS, restart or
update in progress
fl ashing
Connection to FRITZ!Box
(wireless router) interrupted
off
Schedule enabled (for wireless bridge
mode)
4
Port
LAN
Connects network devices or internet router via cable
1 FRITZ!Repeater 2400
1 LAN cable
A description of all LED conditions and
button functions is presented in the PDF
manual at
en.avm.service
Connect
LAN
Connect
1
2
3
4
54

AVM FRITZ! Repeater 2400 Specifications

General

Product type	Network repeater
Product color	White
Manual	Yes
Connectivity technology	Wired & Wireless
Ethernet LAN (RJ-45) ports	1
Maximum data transfer rate	1733 Mbit/s
Frequency band	2.4/5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
AC input voltage	230 V
Power source type	AC
AC input frequency	50 Hz
Security algorithms	WPA2, WPS

Weight and Dimensions

Weight	160 g
Dimensions (WxDxH)	76.5 x 62.6 x 155 mm
