AvMap Ultra EFIS - Page 7

User and Installation Manual - 7
AvMap Ultra EFIS
Figure 4
Figure 3
Panel thickness
IMPORTANT: Make sure you respect the screw length formula to avoid damaging the
plastic of the Ultra. Use light thread locker to prevent screw loosening with vibration.

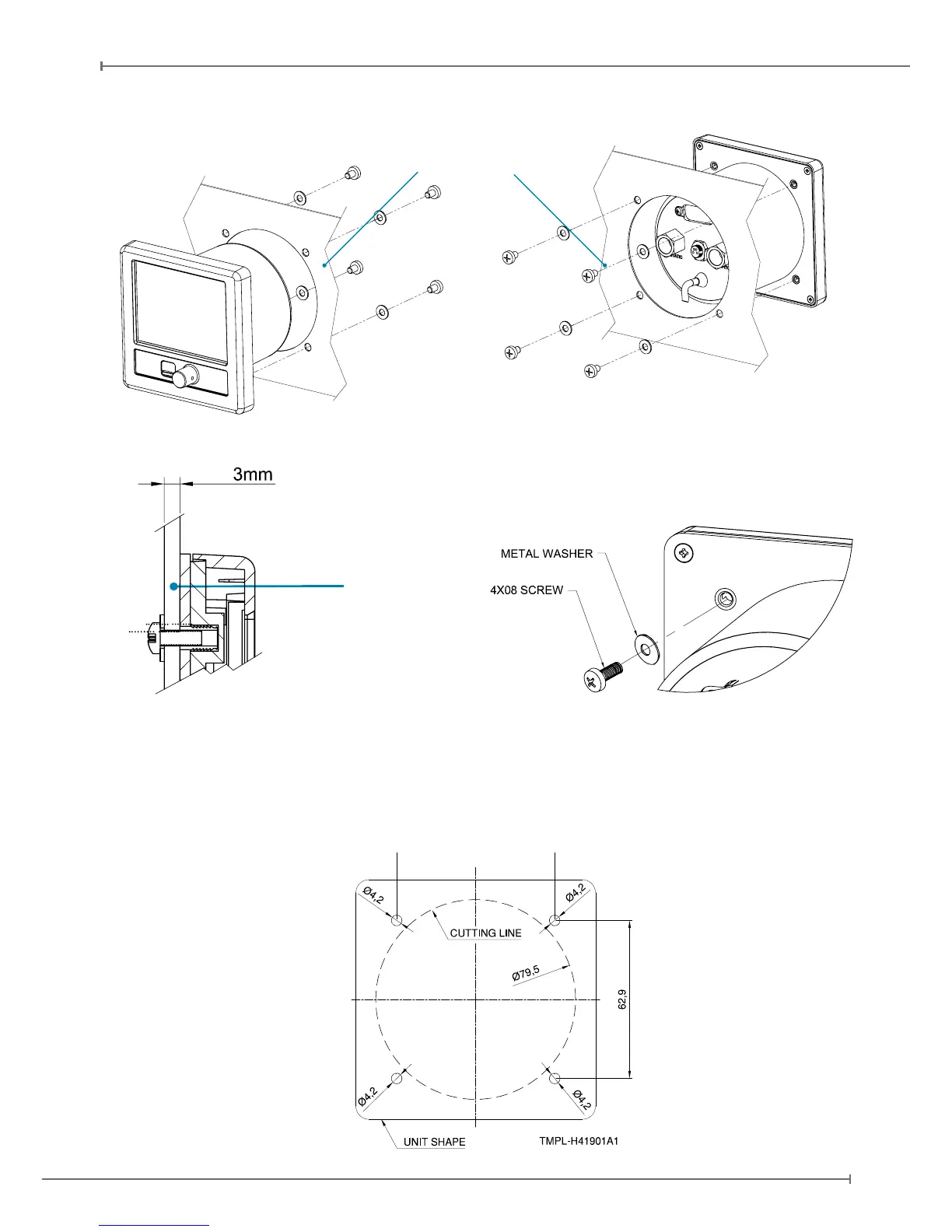

Use the Cutting template, included in the box, to cut out the panel. (see Figure 4)
Aircraft instrument panel
