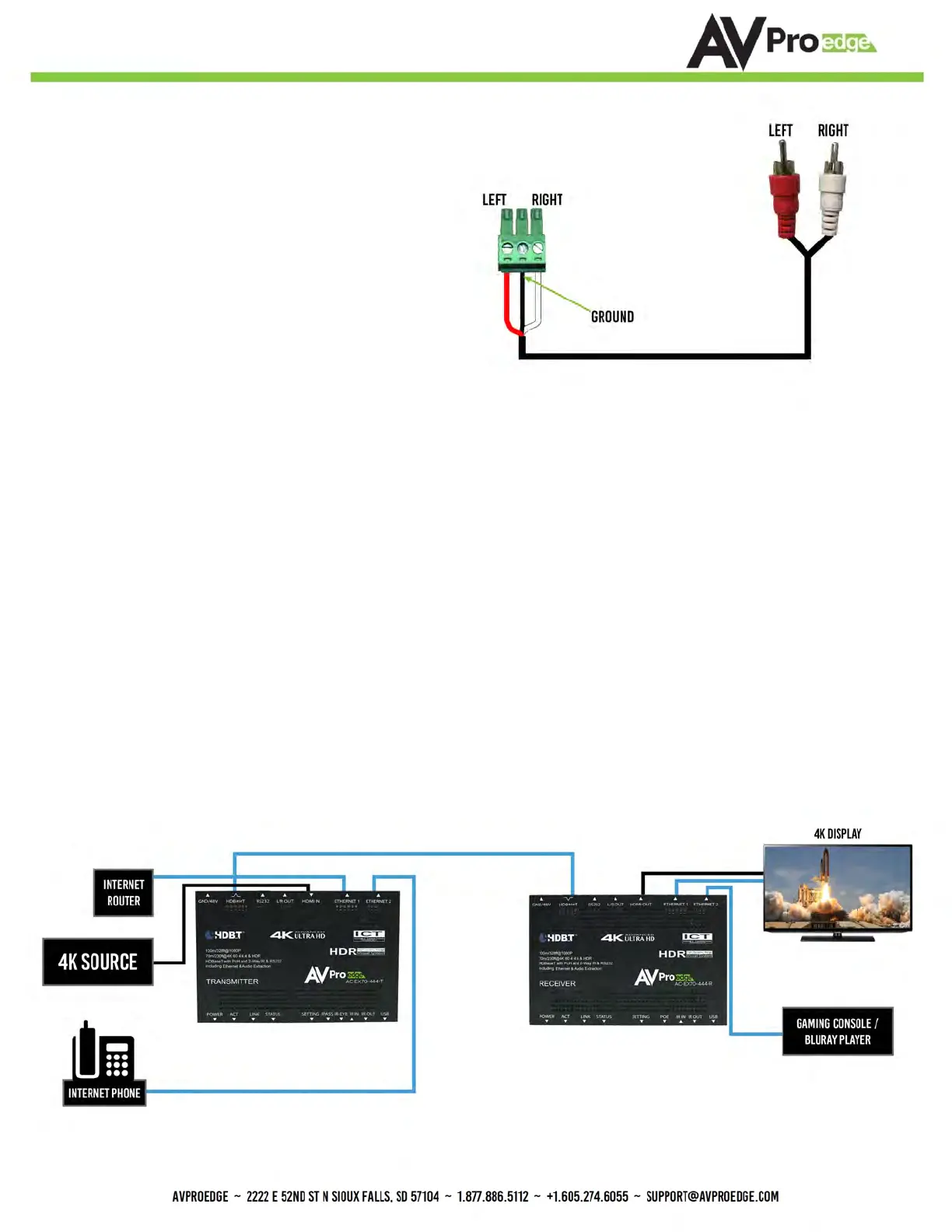

Stereo Cable Preparation
*NOTE: Pre-made audio cables can be purchased.
The part number is: AC-CABLE-3PIN-2CH.
■ Using Ethernet:
Ethernet usage is very straight-forward. It is used for driving network communication over the HDbaseT link. This of
these ports as a "hub", if you plug one port into a router all the other ports on both the Tx & Rx now have access to
the network.
Usage Examples:
• Supplying a hardwire Ethernet connection to video zones for on-device streaming and/or local gaming devices and
players.
• Supplying server based content from a server to a remote display.
• Supplying a zone with a hardwired Ethernet connection for a Wi-Fi access-point in remote zones.
Usage is plug-&-play - the ports are always active and so long as ONE of the FOUR combined ports between the Tx and Rx
is connected to the network the other three have access.
Ethernet Indicator Lights:
• AMBER - This indicates and Ethernet connection is made, and the connection is stable. This should be SOLID.
• GREEN - This indicates that there is activity on the line. This light flashes randomly as data is transmitted. If this light
is steady OFF there is no data coming through or you may need to reset the Ethernet router.
