Audio Extraction on AC-EX70-444
A feature that is always active on the AC-EX70-444 (Tx and Rx) is Audio Extraction. This feature
extracts PCM Audio (2ch) from the source device in order to be run to a separate amplifier or
AVR. BOTH of the audio ports are always active (on Tx & Rx). NOTE - These ports ONLY work if
the source is 2ch. If downmixing is needed, check out AC-AVDM-AUHD or AC-ADM-COTO.
To use the ports:
1. Simply plug a 3 pin terminal block into the port on the Tx or Rx
(both are always active) and make your own cable assembly.
2. There is an option to buy pre-made unbalanced 3-pin to RCA Female cables from
www.avprostore.com
NOTE: The source device needs to output PCM audio in order for the feature to work. This can be
done by using the on-board EDID management or setting the source as such.
■

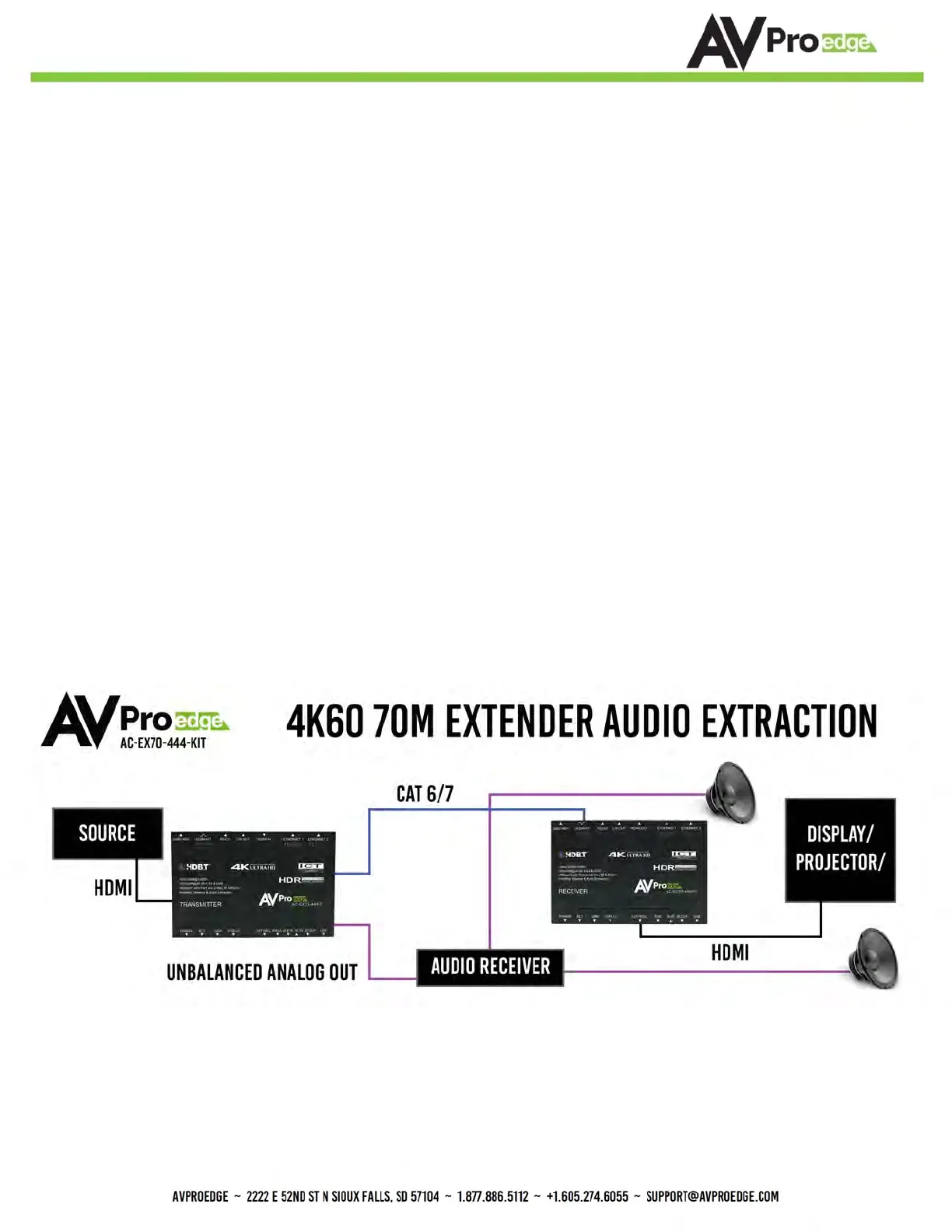

Audio Extraction Routing Diagram
