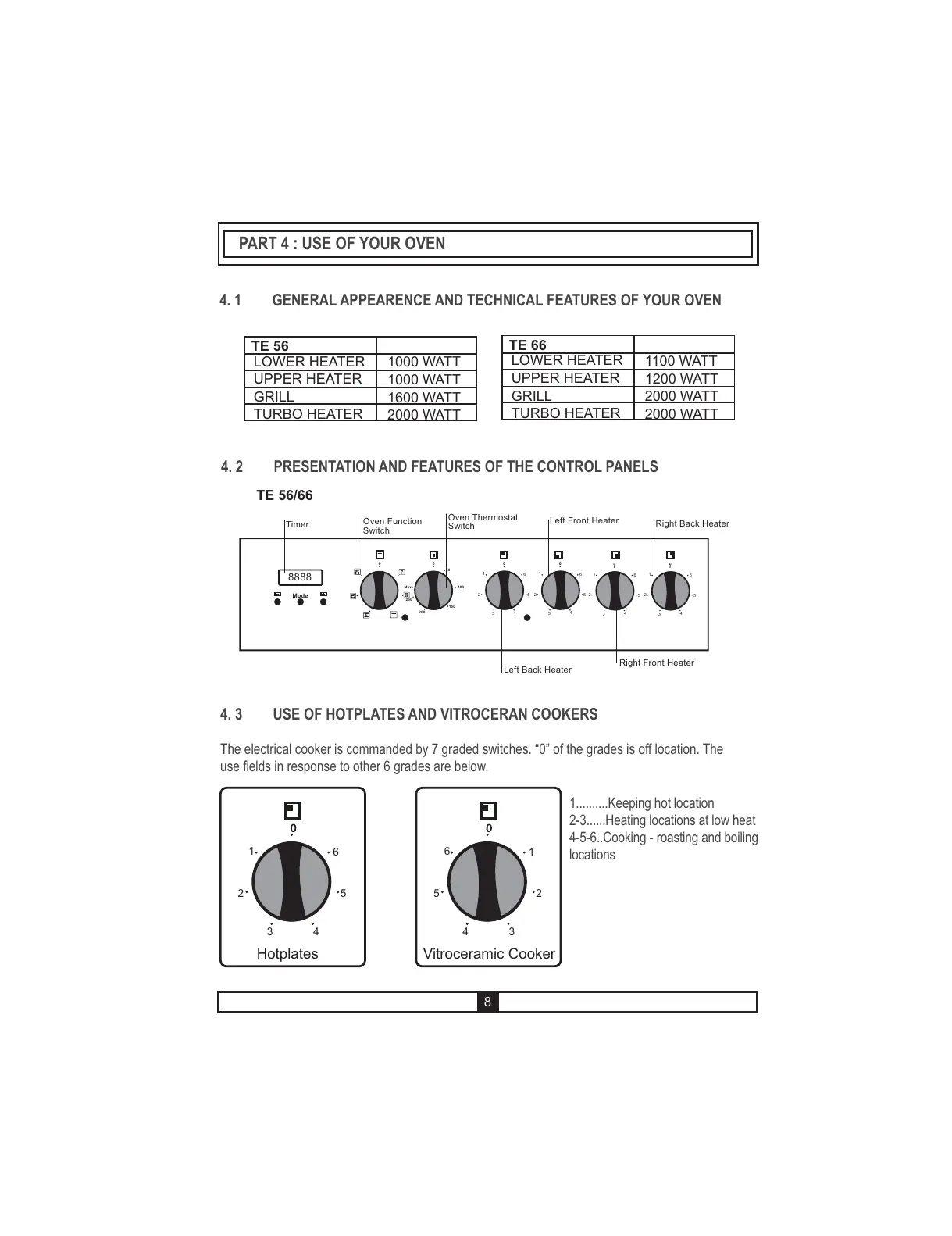

PART 4 : USE OF YOUR OVEN
8
4. 1 GENERAL APPEARENCE AND TECHNICAL FEATURES OF YOUR OVEN
4. 2 PRESENTATION AND FEATURES OF THE CONTROL PANELS
TE 56/66
150
250
8888
Timer
Oven Function
Switch
Oven Thermostat
Switch
50
100
200
Max
Mode
2
1
3
4
5
6
Left Back Heater
Left Front Heater
Right Front Heater
Right Back Heater
2
1
3
4
5
6
2
1
3
4
5
6
2
1
3
4
5
6
4. 3 USE OF HOTPLATES AND VITROCERAN COOKERS
The electrical cooker is commanded by 7 graded switches. 0 of the grades is off location. The
use fields in response to other 6 grades are below.
1
2
3
4
5
6
Hotplates
6
5
4
3
2
1
Vitroceramic Cooker
1..........Keeping hot location
2-3......Heating locations at low heat
4-5-6..Cooking - roasting and boiling
locations
TE 56
LOWER HEATER
UPPER HEATER
GRILL
TURBO HEATER
1000 WATT
1000 WATT
1600 WATT
2000 WATT
TE 66
LOWER HEATER
UPPER HEATER
GRILL
TURBO HEATER
1100 WATT
1200 WATT
2000 WATT
2000 WATT
