4 TYPE PLATE
Revision status: 03/05/2022 9 Index number: D0-116
① Article description
② Nominal size
③ Max. allowable pressure
④ Commission number
⑤ Flange connection
⑥ Max. medium temperature
⑦ Serial number
⑧ Manufacturing date
⑨ Flow direction
⑩ CE marking
⑪ Number of the notified authority
⑫
Address of the manufacturer
4 TYPE PLATE

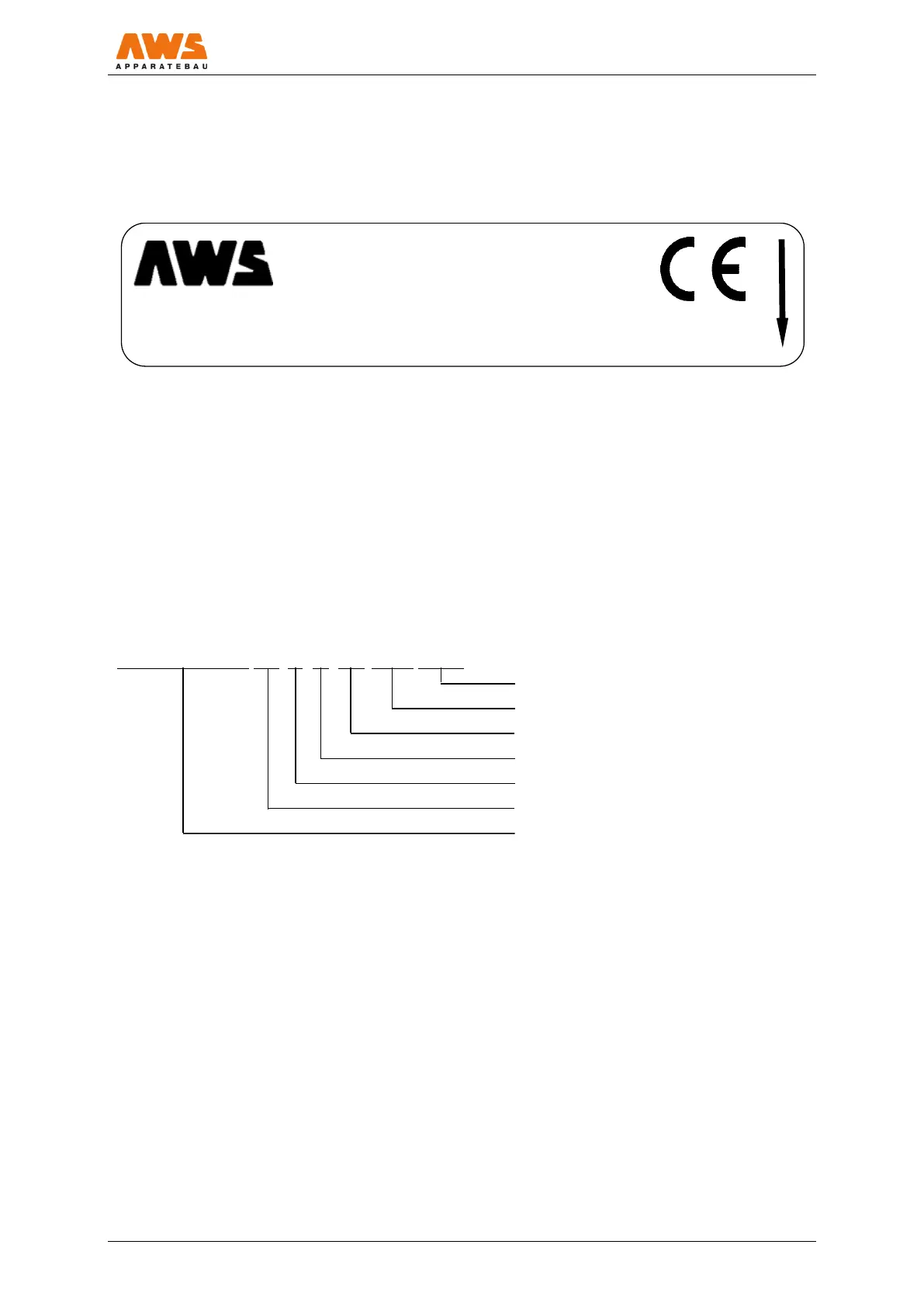

A type plate is attached to each valve. The characteristics of the valve are listed on it. The
following illustration shows the structure of such a type plate.
Structure of a 932 disco check valve of the product line 932:
4.1 Article description breakdown
The following breakdown is an example of a standard valve for illustrative purposes.
󰪧 DN20 󰪪 PN6-40 ANSI
󰪨 PS 40 bar 󰪫 Tmax. 250°C
󰪩 121709-4 󰪬 S.Nr.: 0083 󰪭 06/20
0036
D-74676 Niedernhall
󰪦 932/20/1/T/F1/PN6-PN40
Zimmerbachstraße 51
󰪮
󰪰
󰪱
󰪯
Disco-RSV 932/ 20/ 1/ T/ F1/ PN6- PN40
Material sealing
Design
Nominal size
Type
Max. flange connection
Min. flange connection
Material spring
