3 VALVE DESCRIPTION
Revision status: 03/05/2022 5 Index number: D0-116
Pos.
Name
1
Body
2
Disc
3
Spring cross
4
Spring
5
O-ring
1
3 VALVE DESCRIPTION
The illustrations are exemplary for the design of the valves. All further information can be
found in the data sheets of the relevant product line.

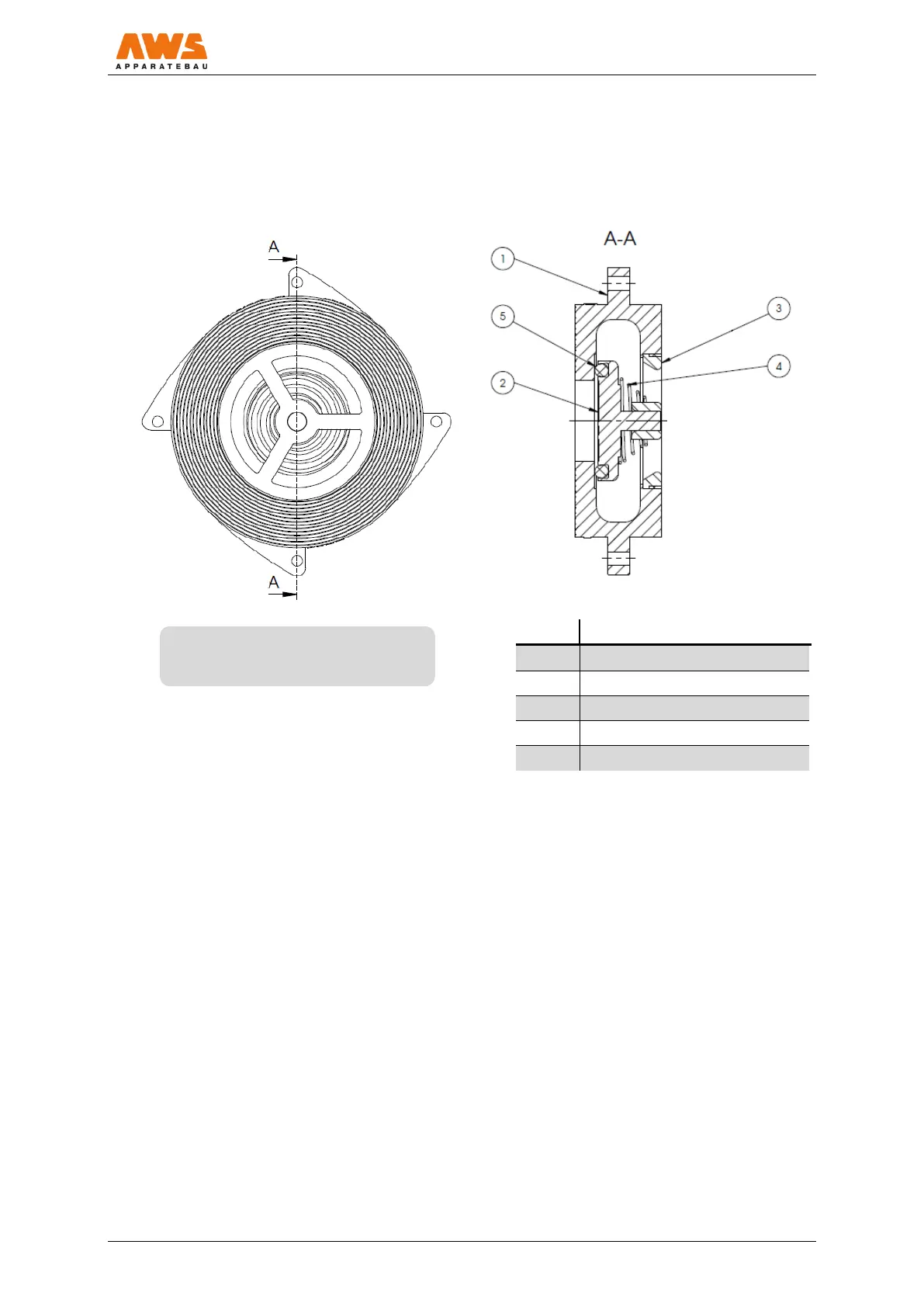

The following illustration describes the 932 product line (DN 15-100):
1
Only available in soft-sealing version.
The design of the specified product lines (930/931/932/932-HD/936) differs only slightly from
each other. The illustration lists all the main components of the valves.
Disco check valve 932
DN15 - 100
