AXA Remote 2.0
Remote-controlled window opener

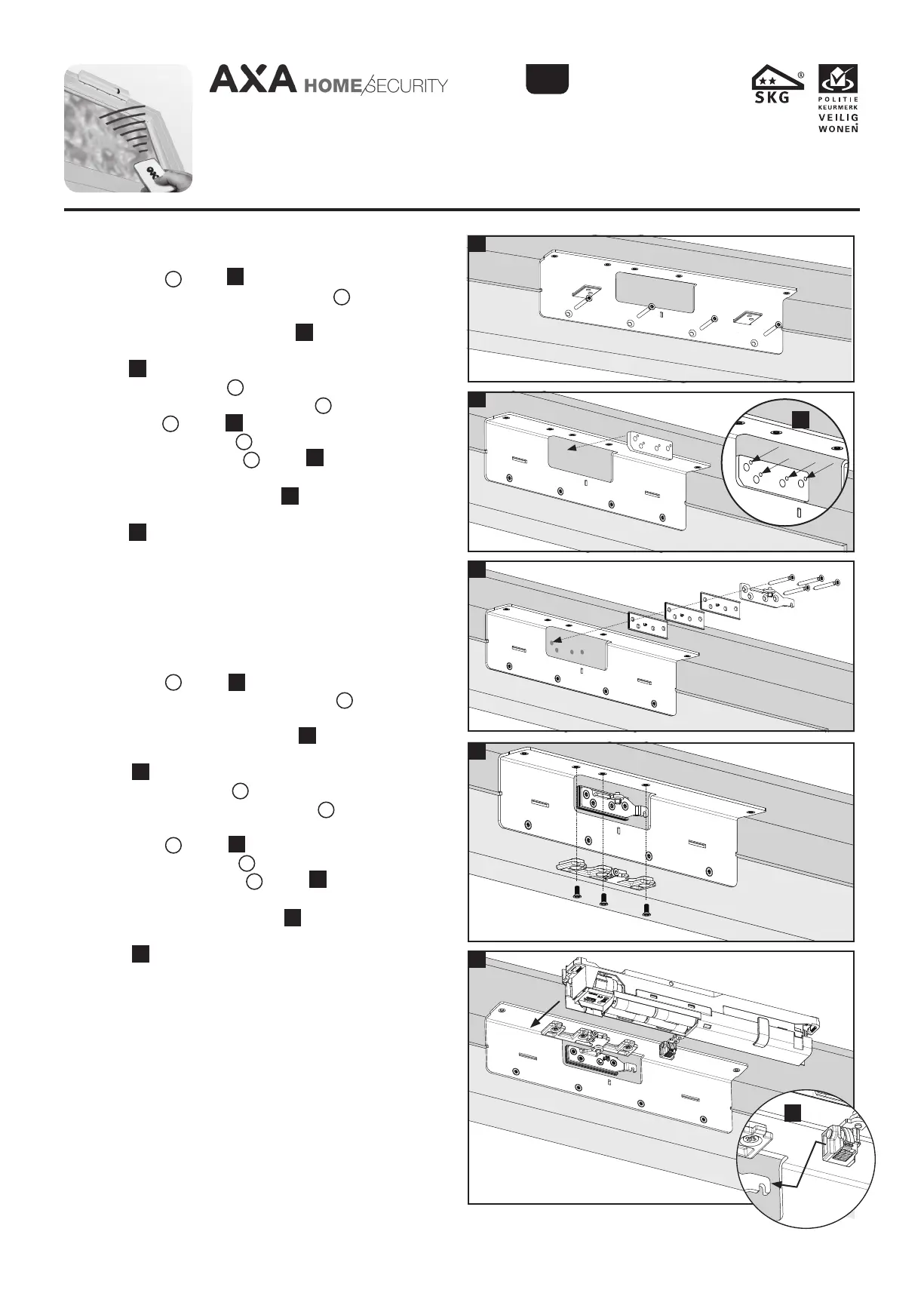

Installation on a flush window
10 Install the hopper window bracket using 4 screws
4,0 x 40 mm (figure
I
).
11 Place the spacer block/drilling template
10
with the
bevelled corner in the left bottom corner of the recess on
the hopper window bracket (figure
J
). Use the 4 small
holes to drill the 4 screw holes with a Ø 2 mm drill
(figure
K
).
12 Fasten the casing plate
8
to the casing with the
3 accompanying casing washer plates
9
using 4 screws
4,0 x 45 mm
17
(figure
L
).
13 Attach the window plate
7
to the hopper window bracket
using 3 bolts M4 x 10 mm
14
(figure
M
).
14 Slide the closing unit onto the window plate whilst holding
the window slightly open (figure
N
).
15 Slide the block on the chain fully over the window plate
(figure
O
). The block will fix itself in place.
I
L
M
Installation on a rebate window
9 Install the hopper window bracket using 4 screws
4,0 x 40 mm
12
(figure
I
).
10 Place the spacer block/drilling template
10
with the
bevelled corner in the left bottom corner of the recess on
the hopper window bracket (figure
J
). Use the 4 small
holes to drill the 4 screw holes with a Ø 2 mm drill
(figure
K
).
11 Fasten the casing plate
8
to the casing with the
3 accompanying casing washer plates
10
plus the casing
plates which bridge the rebate difference using 4 screws
4,0 x 70 mm
13
(figure
L
) (in the pre-drilled holes).
12 Attach the window plate
7
to the hopper window bracket
using 3 M4 x 10 mm bolts
14
(figure
M
).
13 Slide the closing unit onto the window plate while holding
the window slightly open (figure
N
).
14 Slide the block on the chain fully over the window plate
(figure
O
). The block will fix itself in place.
Continuation of step 16.
