APPENDIX A – CONNECTOR PINOUT
Axel Technology |
57

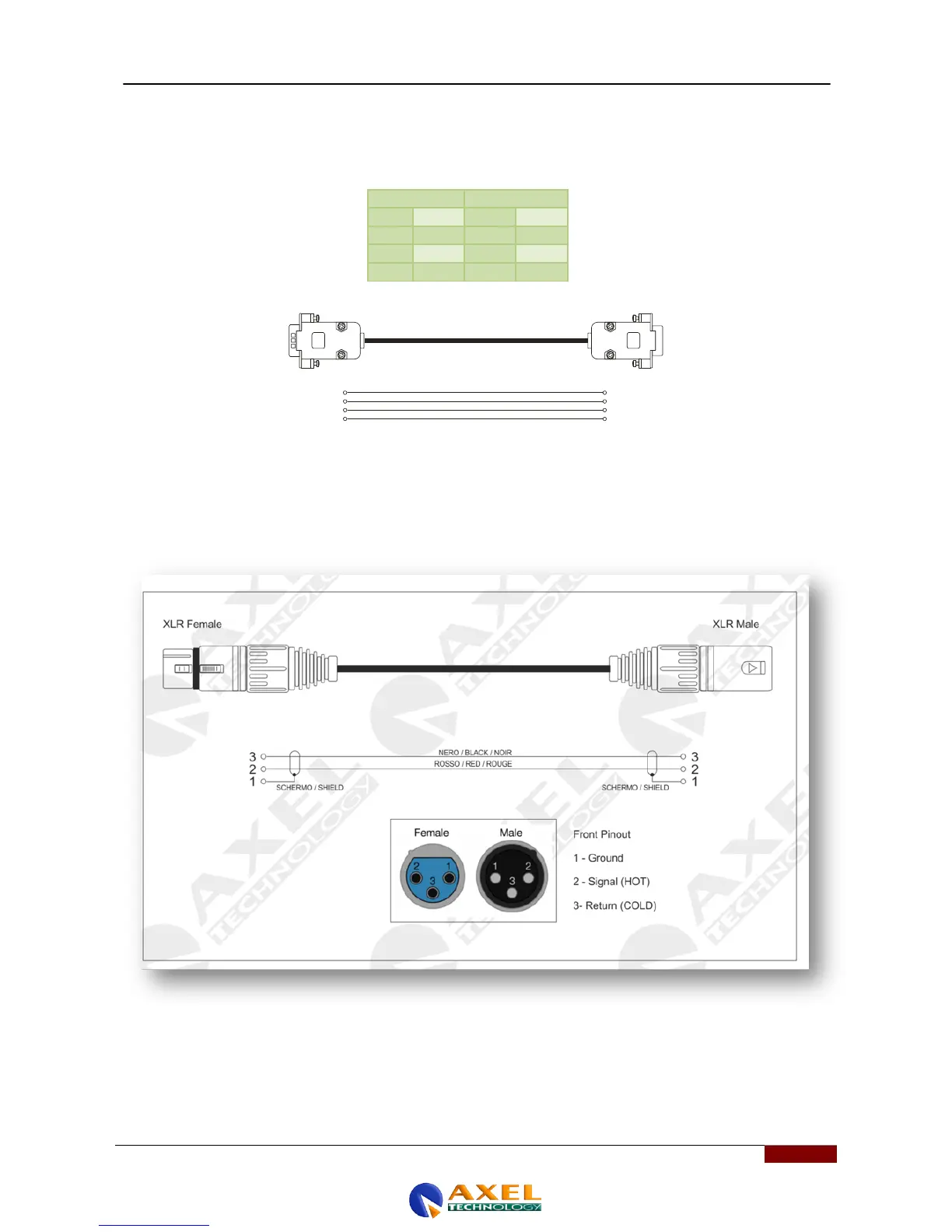

29 APPENDIX A – CONNECTOR PINOUT
29.1 RS232 CONNECTION AND PINOUT
PORT 1
PORTS 2,3,4
2
Tx
2
Tx
3
Rx
3
Rx
4
DTR
4
/
5
GND
5
GND
2 2
3 3
4 4
5 5
RS 232 Male
RS 232 Female
The PC connections require standard pin-to-pin (i.e. not crossover) serial cables. For correct operation, the
connection cables must be no longer than 20 m.
Ports 2 and 3 use only the Tx, Rx and GND signals for the PC connection, while Port 1 also supports the DTR signal
(Data Terminal Ready) used for modem connection. For communication purposes, the port speed must be similar.
29.2 ANALOG AND DIGITAL AUDIO CONNECTION
