30.7 WOLF DEVICE DIGITAL BREAKOUT BOX (WLF-BBD)

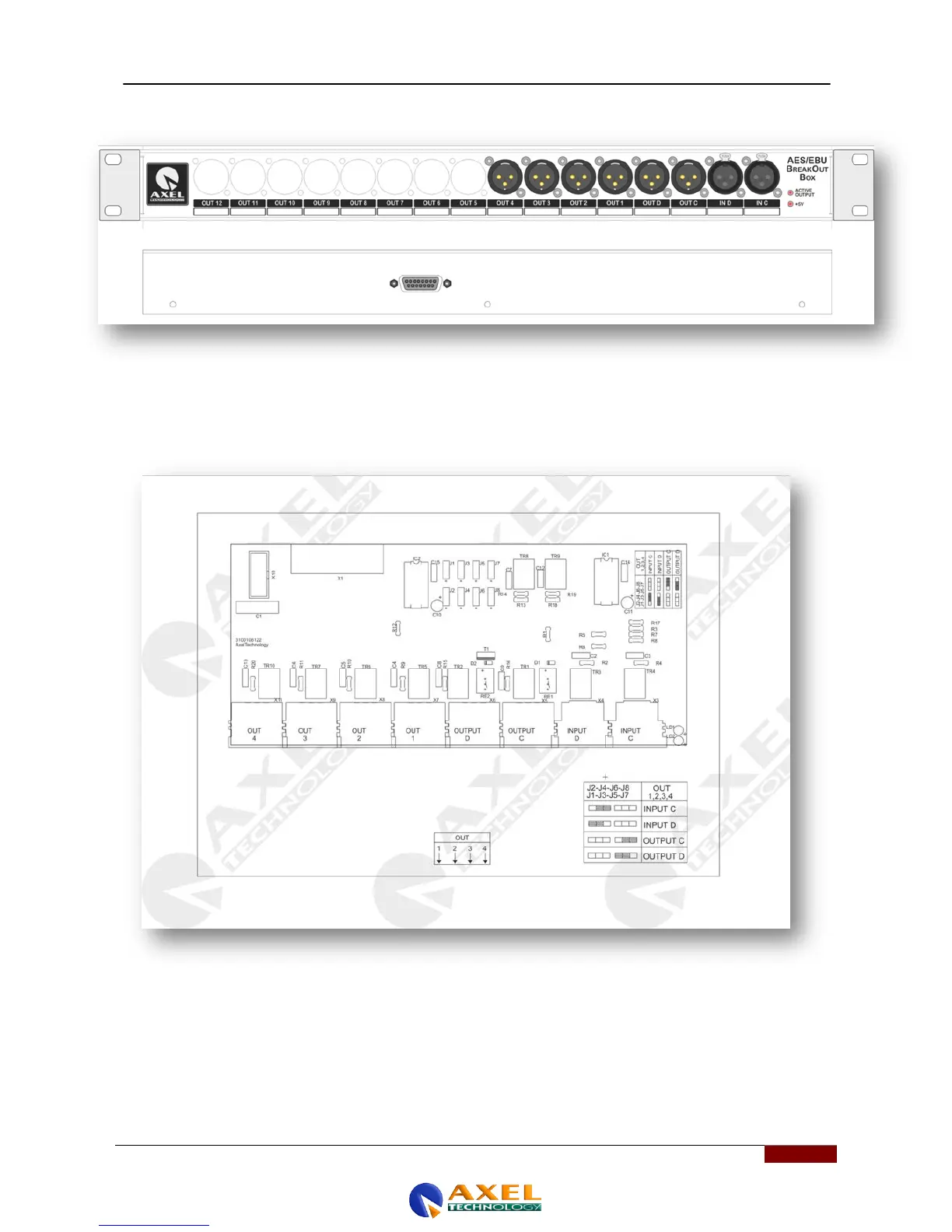

The picture above shows the layout of the digital inputs and outputs. As regards the use of outputs 1-2-3-4 (
OUT 1, OUT 2, OUT 3, OUT 4), these can be fully configured as required; the default jumper settings inside
the Breakout Box are such that these always reproduce OUT C.
All inputs and outputs are transformer de-coupled, with a characteristic impedance of 110 ohms.
They can also be configured as copy of the INPUT C or INPUT D signal by modifying the internal jumpers
