Axis Car Audio BA1505 - Panel Controls

BA1505 Instruction Manual - 09/2016
4
1. Power Button (PWR)
2. Volume Control (VOL) - Push in for BT/PHONE ANSWER /AUDIO CONTROLS/
ILLUMINATION COLOUR
3. EQ Presets - BT HF END CALL
4. Band Button (BND)
5. Tracks Selecting Button (IŻŻ)
6. Tuning Selecting Button (ŹŹI )
7. Player/Pause Button (1/PAUSE)
8. Disc Intro Button (INT)
9. Disc Track Repeat Button (RPT)
10. Disc Random Play Button (RDM)
11. Number Button (-10)
12. Number Button (+10)
13. Mute/Clock Button (MUT)
14. SD
15. USB
16. AUX-IN
17. IR
18. ECHO. VOL - Source Mute in Mic Mode
19. MIC
20. Eject Button
21. LCD Display
22. Disc Slot
23. Mode Button (MOD)

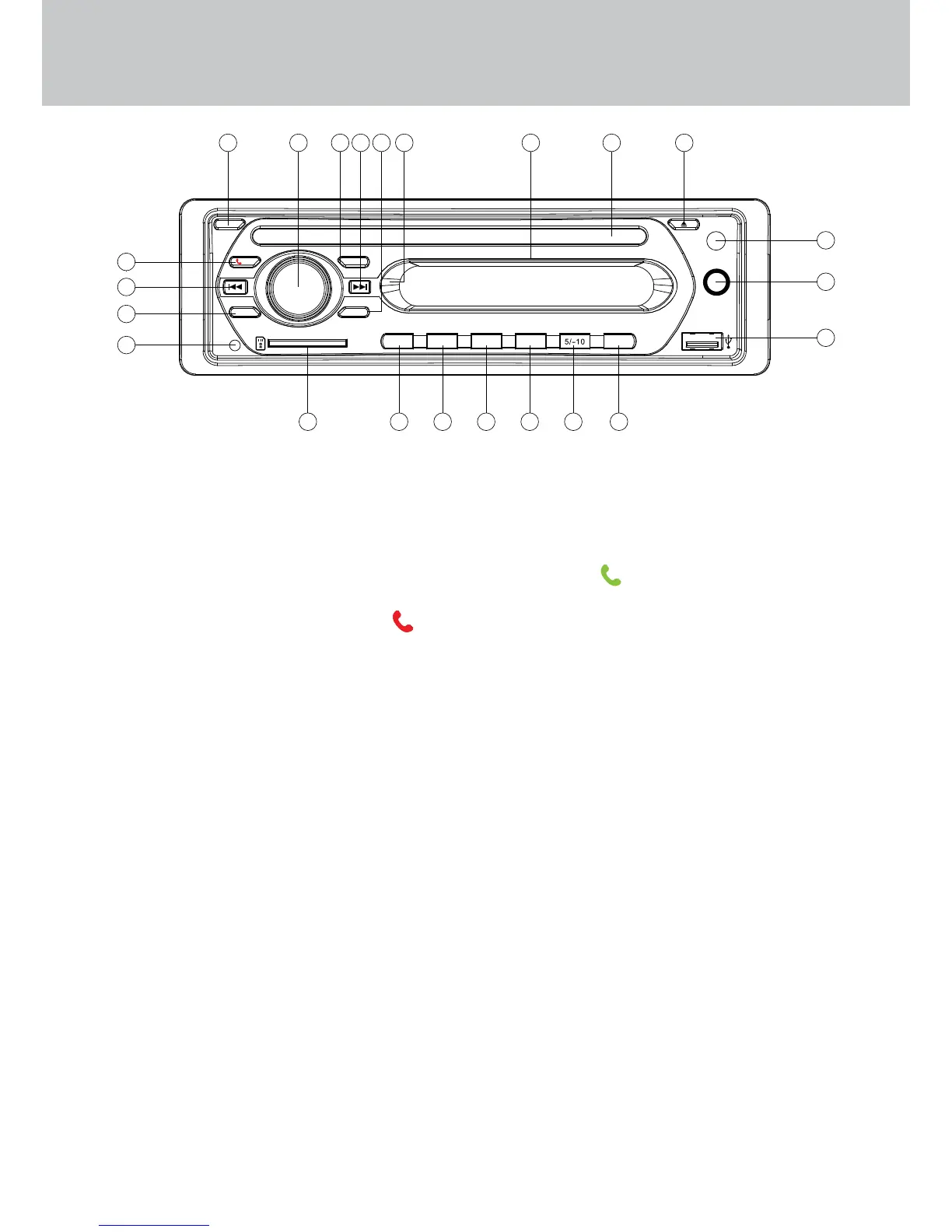

PANEL CONTROLS
