Periodic Maintenance and Adjustment 8-30
Cleaning the spark arrester
Be sure the exhaust pipe and muffler are
cool before cleaning the spark arrester.

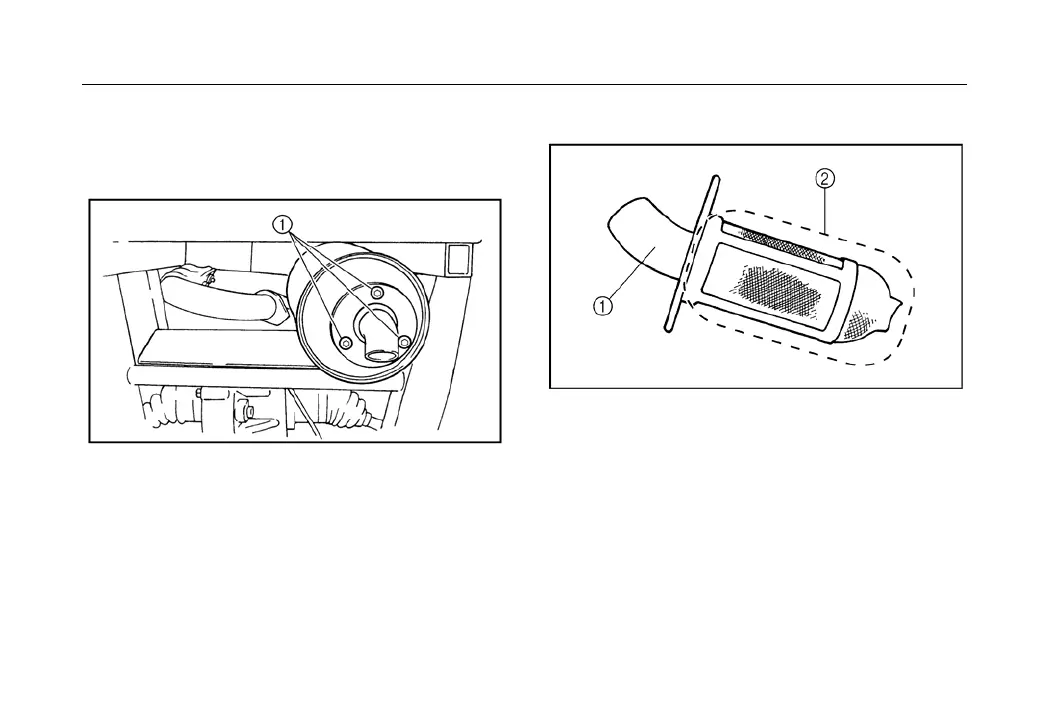

1. Remove the bolts.
1. Bolt(×3)
2. Remove the tailpipe by pulling it out of
the muffler.
3. Tap the tailpipe lightly, and then use a
wire brush to remove any carbon
deposits from the spark arrester portion
of the tailpipe and inside of the tailpipe
housing.
1. Tailpipe 2. Spark arrester
4. Insert the tailpipe into the muffler and
align the bolt holes.
5. Install the tailpipe by installing the bolts,
and then tighten the bolts to the specified
torque.
