Axis 2 Series - Advised Sensor Installation Positions; Sensor Alignment and Mounting Height

7
Smooth slope Smooth round objects Objects sbsorbing
wave,e.g.cotton
Objects hard to be detected

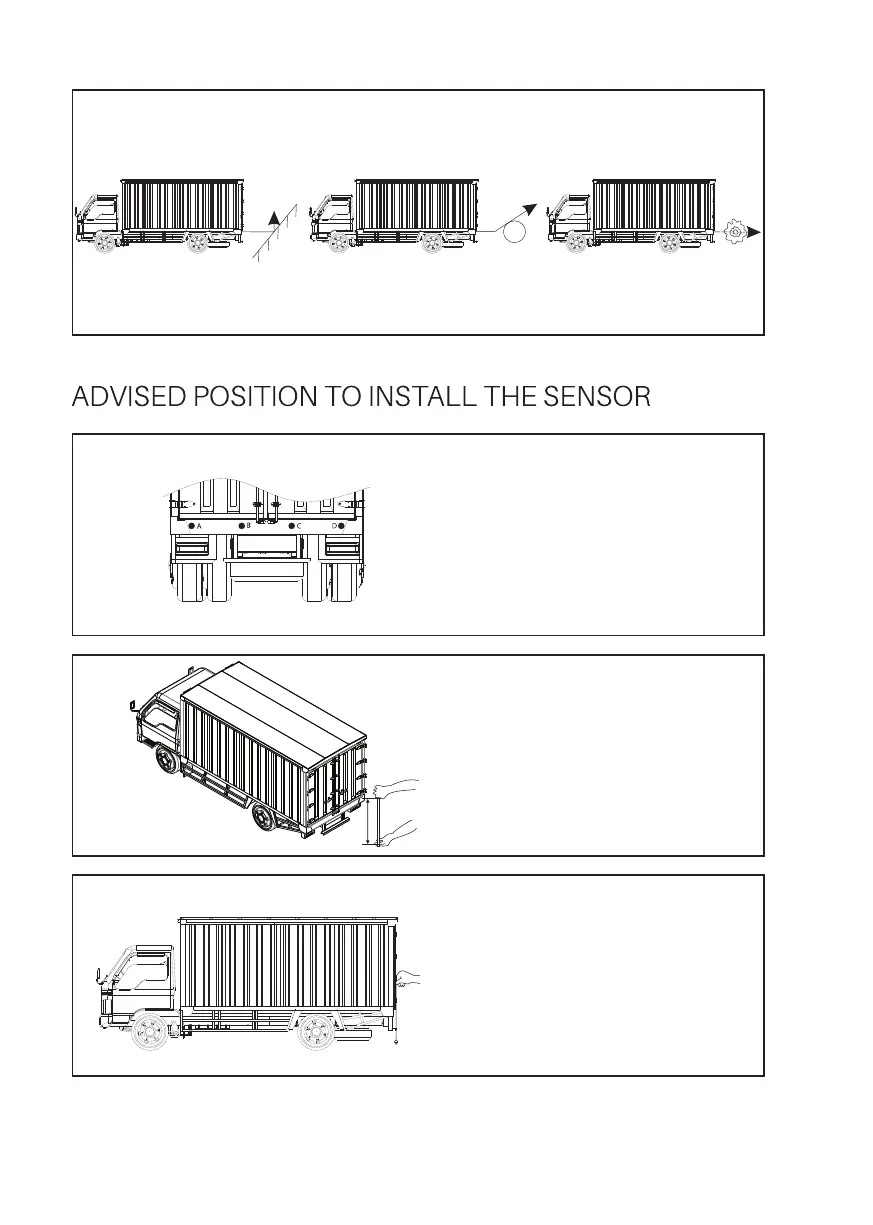

ADVISED POSITION TO INSTALL THE SENSOR
A. Four drill holes A.B.C.D
should be in line.
B. 0.5~0.8m vertical to the ground.
0.55m is recommended.
C. Vertical, tidy surface without
metal components is preferred.
