AXISA1001NetworkDoorController

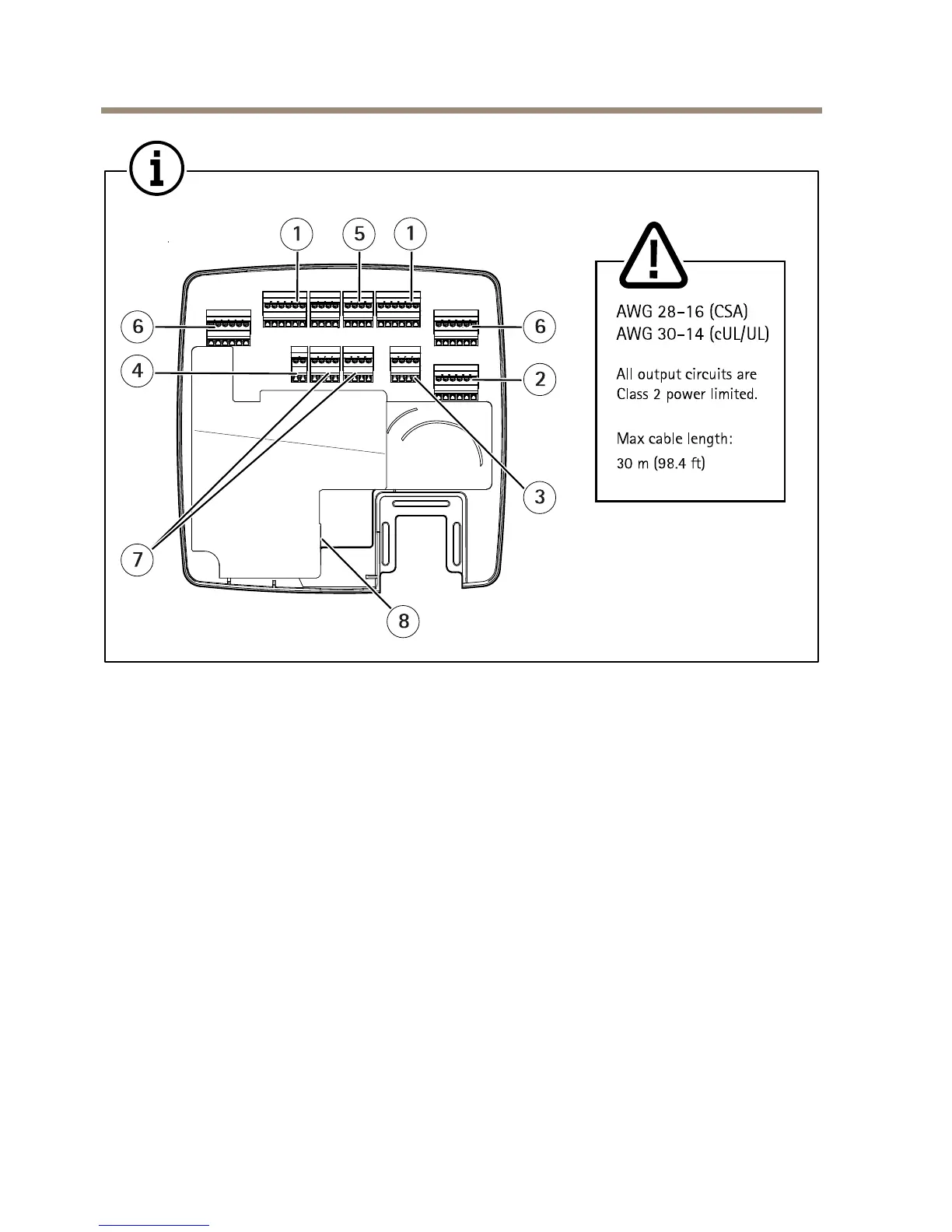

1.READERI/O1&2:ReaderI/Oconnector(2x).DCoutput:12VDC,max300mA
2.RELAY&PWR*:Power&relayconnector.DCoutput:12VDC,max500mA.Relay:30
VDC,max700mA
3.LOCK*:Powerlockconnector.2x12VDC.0VDC,oating,or12VDC,maxtotal
load:500mA
4.DCIN:Powerconnector.DCinput:10–30VDC,max26W.Maxloadonoutputs:14W
5.AUX:Auxiliaryconnector.DCoutput:3.3VDC,max100mA.Digitalinput:0tomax40
VDC.Digitaloutput:0tomax40VDC,opendrain,100mA
6.READERDATA1&2:Readerdataconnector(2x).RS485fullduplex,RS485halfduplex,
Wiegand
7.DOORIN1&2:Doorconnector(2x).Digitalinput:0tomax40VDC
8.Networkconnector.RJ45,PoEIEEE802.3af/802.3atType1Class3.Maxloadonoutputs:
7.5W
*Ifthelockisnon-polarized,werecommendyoutoaddanexternalybackdiode.
