Axis AX1200 - Control Functions and Parts Identification; Control Buttons and Functions Overview; Front Panel Parts Identification

4
1. POWER ON/OFF ( )087(
2. FUNCTION SELECT BUTTON:BASS/TREBLE/BALANCE/FADER /
I-VOL/ADJUST CLOCK/DISP/STEREO/LOC/EQ
3. VOL UP/VOL DOWN FOR BASS/TREBLE/BALANCE/FADER
 35(6(767$7,216
5. MODE BUTTON (MD)
6. BAND/LOUDNESS BUTTON (BD/LD)
7. AUTOMATIC OR MANUAL TUNING (FREQ UP
OR FREQ DOWN ) /
TRACK/SEARCH BUTTON
8. AUTO SEEK SEARCH TUNING (AS/PS)
9. LCD DISPLAY
10. OPEN PANEL BUTTON (
)
11. PAUSE BUTTON
12. REPEAT BUTTON
13. INTRO BUTTON (Preview all Tracks)
14. RANDOM BUTTON
35(9,2861(;7)2/'(56(/(&7,QFDVHRI03:0$ÀOHV
16. USB PORT
17. MULTI-MEDIA CARD (MMC) / SD CARD SLOT
18. AUX IN

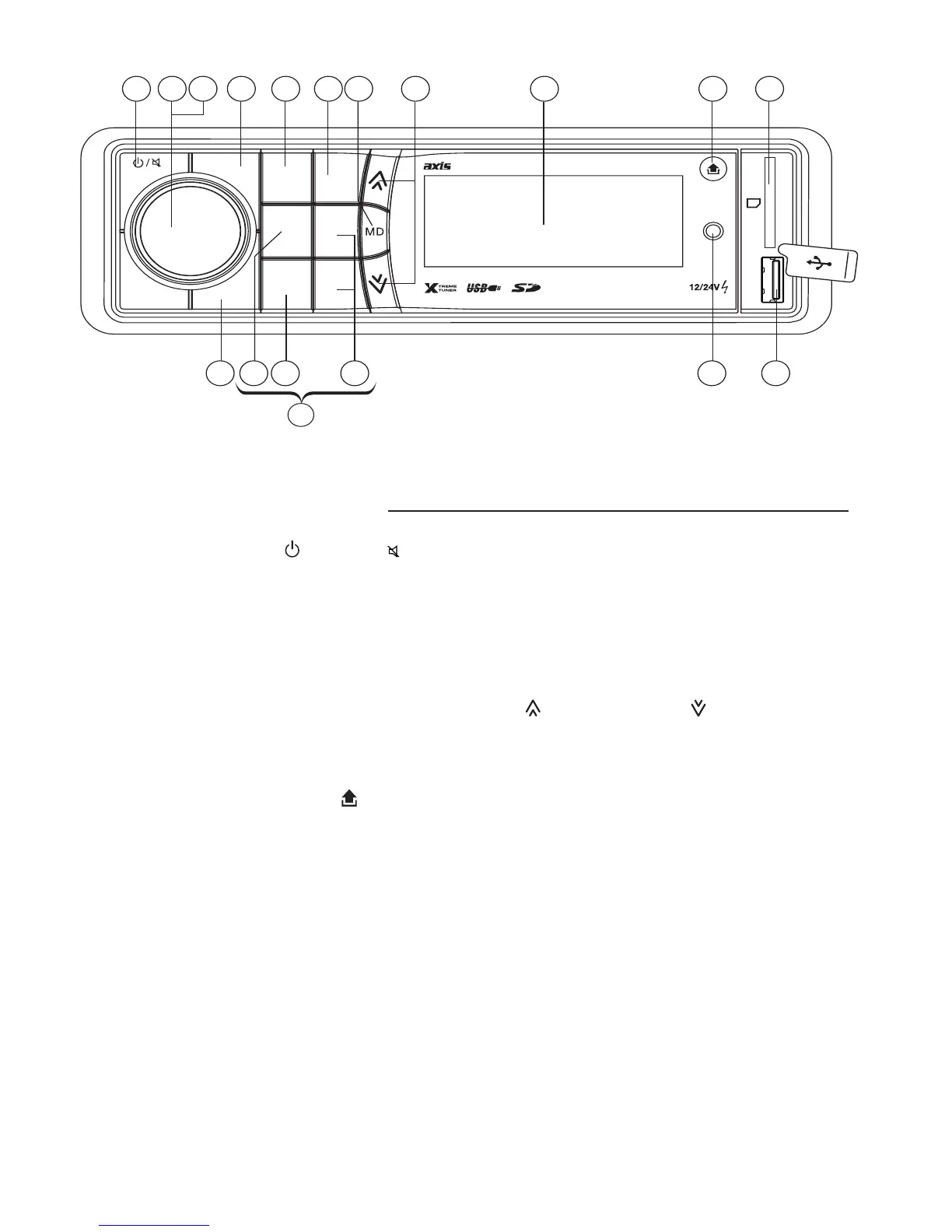

LOCATIONS OF PARTS
AS/PS
MD
BD/LD
AUX
3
INT
6
FL+
2
RPT
1
PAU
4
RDM
5
FL-
AX1200
9141162 31 5 7 10 17
15138 12 18 16
(1-6)
4
CONTROL FUNCTIONS
