Managethebuilt-inswitch
Tochangethepowerallocationmethod:
1.Intheswitch’spowermanagementpage,gotoPowermanagement.
2.SelectPoEClass,Manual,orLLDP-MEDunderAllocatepower.
3.IfyouhaveselectedManual,gotothePowerallocatedcolumnandchangethepowerallocatedtotheconnecteddevice.
4.Ifyouwanttochangethepriorityoftheconnecteddevice,selectapriorityforthatdevice.Thepriorityofotherdevices
willchangeautomatically.
5.ClickRefresh.
Example
Inthisexample,theswitchhasatotalpowerbudgetof135W.APoEclass4devicerequests30Wpowerandactuallyconsumes15
Wpower.APoEclass2devicerequests7Wpowerandactuallyconsumes5Wpower.

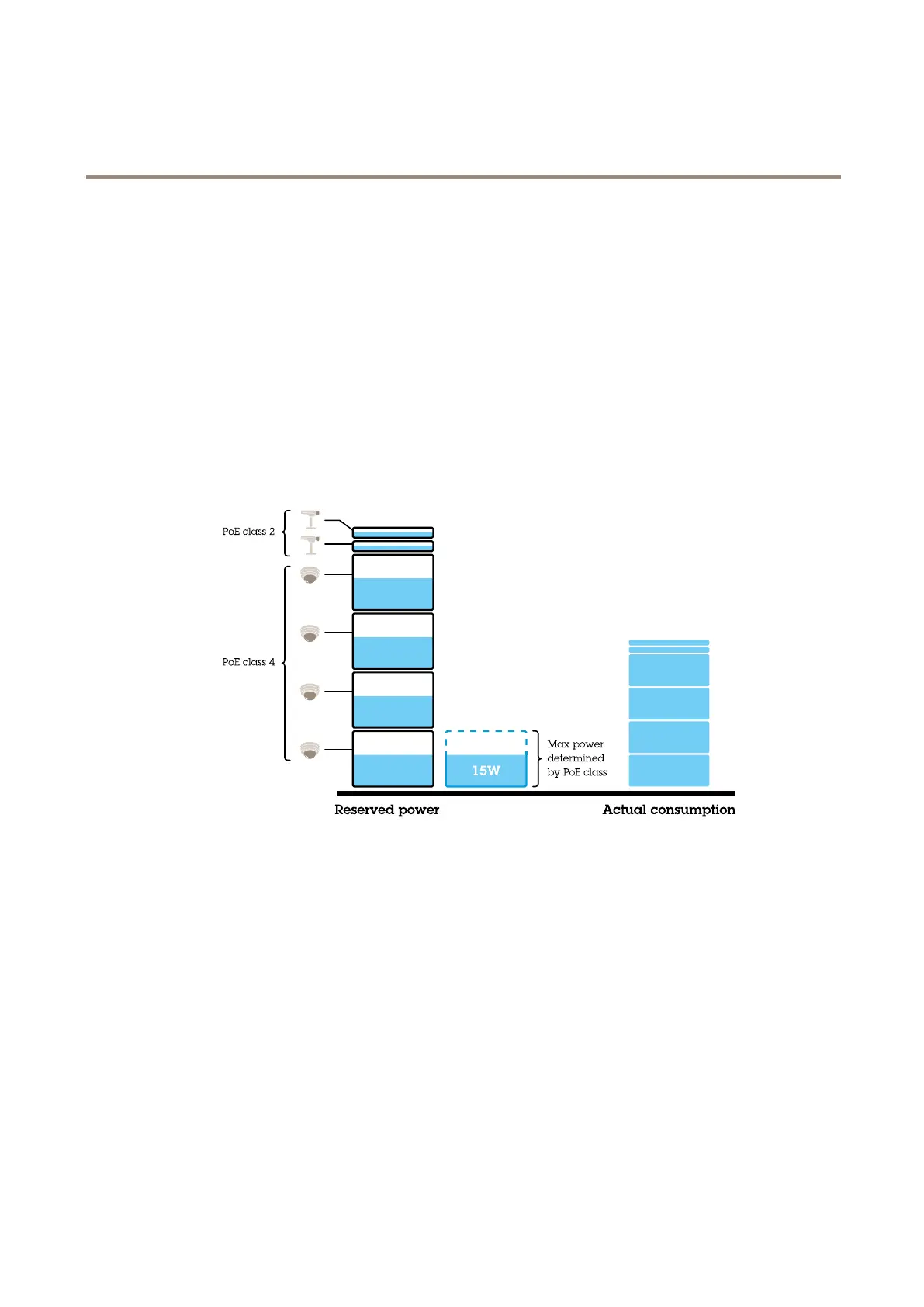

AllocatepowerbyPoEclass
ThepowerrequestedbyeachdeviceisdeterminedbythePoEclass.Theswitchcanpower4PoEclass4devicesand2PoEclass2
devices.Thetotalpowerrequestedis(4x30)+(2x7)=134W.Theactualpowerconsumedis(4x15)+(2x5)=70W.Inthisway,
allconnecteddevicesareguaranteedenoughpowerandthepriorityislessimportant.
Allocatepowermanually
34
